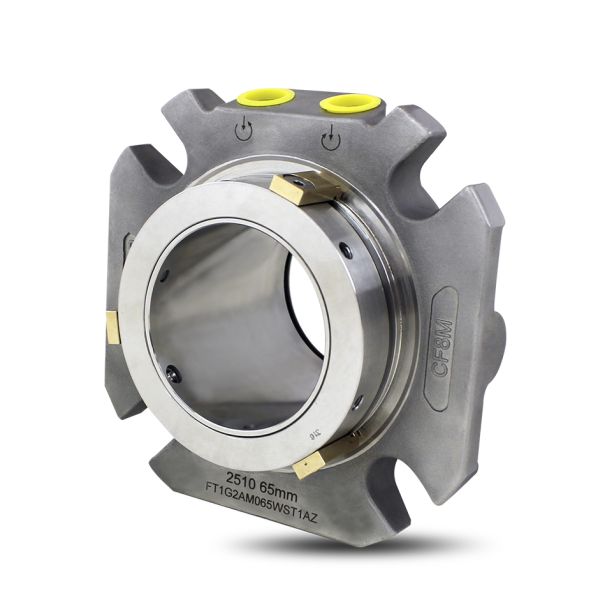

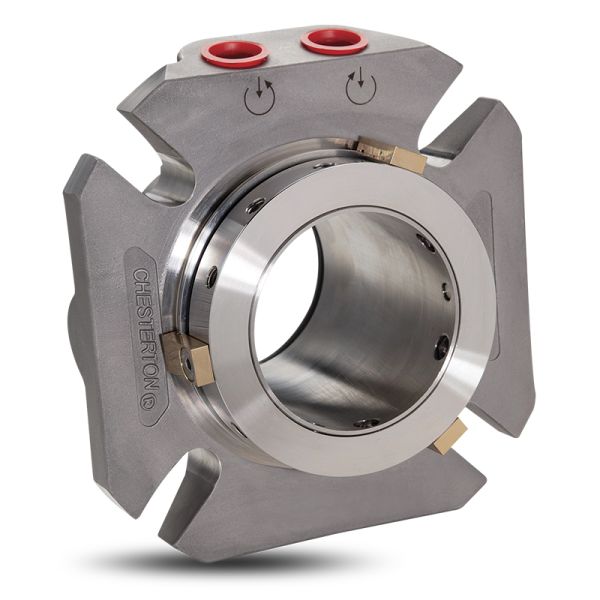

Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
Specifications
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2
Brand Name :
BESTSEAL
Place of Origin :
CHINA
Certification :
ISO9001
Elastomers :
FKM, EPDM, FEPM, FFKM
Speed :
25 m/s ( 5000 fpm )
Springs :
EN 2.4819 (Alloy C-276)
Model Number :
Chesterton 2510
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Faces :
CB, TC, SSC
Pressure :
711 mm (28") Hg Vacuum – 20 bar g (300 psig)
Supply Ability :
1000000/Month
Delivery Time :
15 working days
Variants :
2510OS - Oversized Seal Chambers
MOQ :
1pc
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Packaging Details :
Carton
Temperature :
-55 to 300 °C (-67 to 570 °F)
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Description
Chesterton 2510 General Duty Double Cartridge Mechanical Seal
  • Mechanical Seals
  • Cartridge Seals

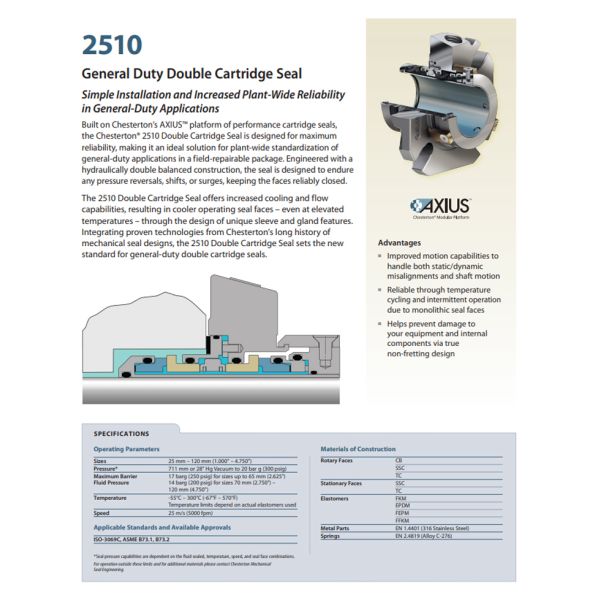

2510

General Duty Double Cartridge Seal

Simple Installation and Increased Plant-Wide Reliability in General-Duty Applications.

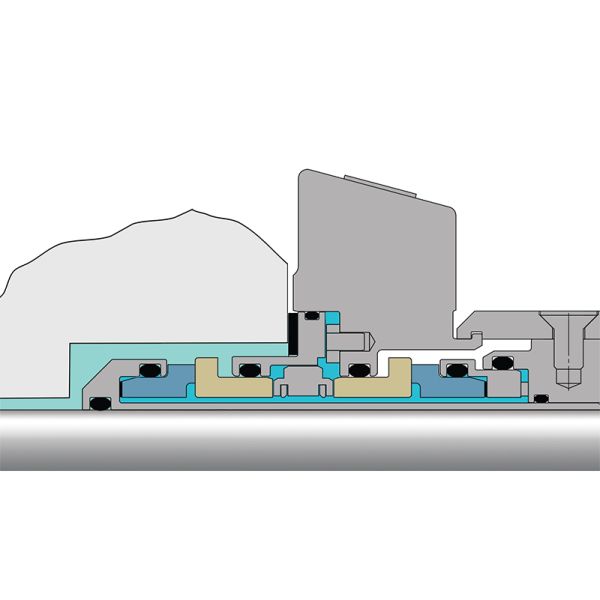

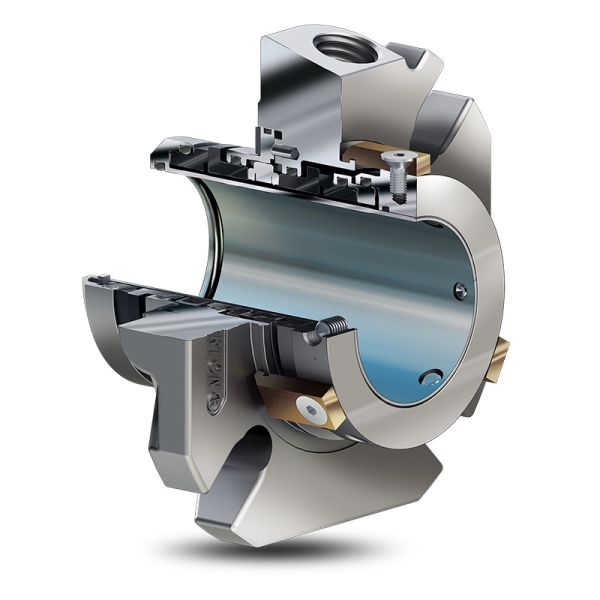

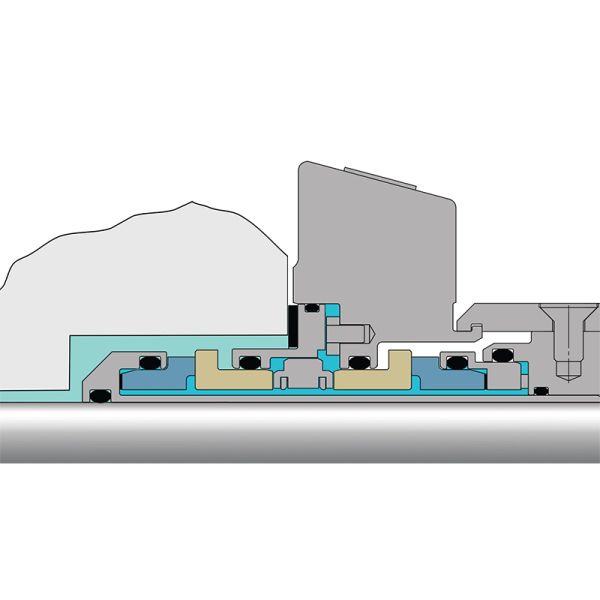

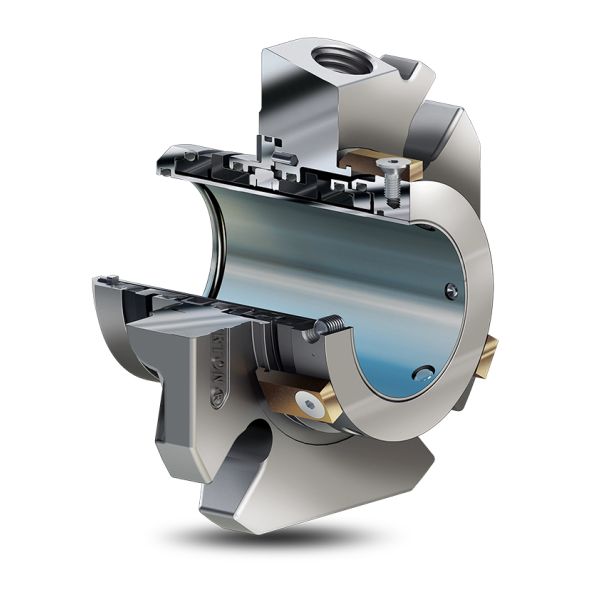

Built on Chesterton’s AXIUS™ platform of performance cartridge seals,the Chesterton® 2510 Double Cartridge Seal is designed for maximum reliability, making it an ideal solution for plant-wide standardization of general-duty applications in a field-repairable package. Engineered with a hydraulically double balanced construction, the seal is designed to endure any pressure reversals, shifts, or surges, keeping the faces reliably closed.

The 2510 Double Cartridge Seal offers increased cooling and flow capabilities, resulting in cooler operating seal faces – even at elevated temperatures – through the design of unique sleeve and gland features. Integrating proven technologies from Chesterton’s long history of mechanical seal designs, the 2510 Double Cartridge Seal sets the new standard for general-duty double cartridge seals.

Product Features
  • Improved motion capabilities to handle both static/dynamic misalignments and shaft motion
  • Reliable through temperature cycling and intermittent operation due to monolithic seal faces
  • Helps prevent damage to your equipment and internal components via true non-fretting design

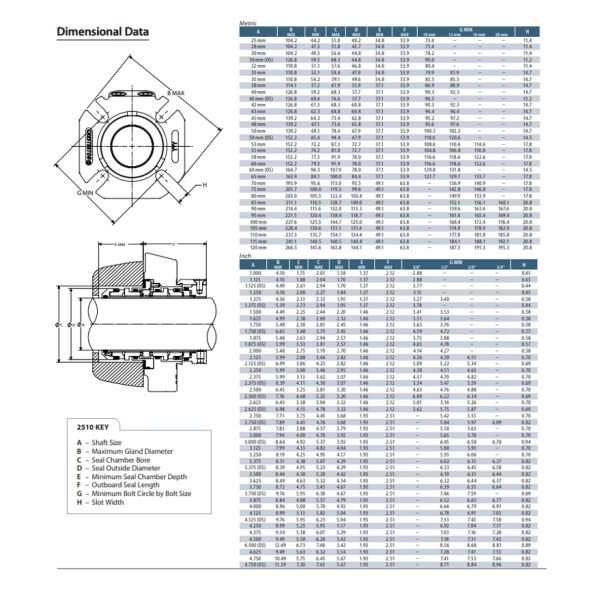

Technical Data
Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2
Variants 2510OS - Oversized Seal Chambers
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 25 m/s ( 5000 fpm )
Pressure

711 mm (28") Hg Vacuum – 20 bar g (300 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
