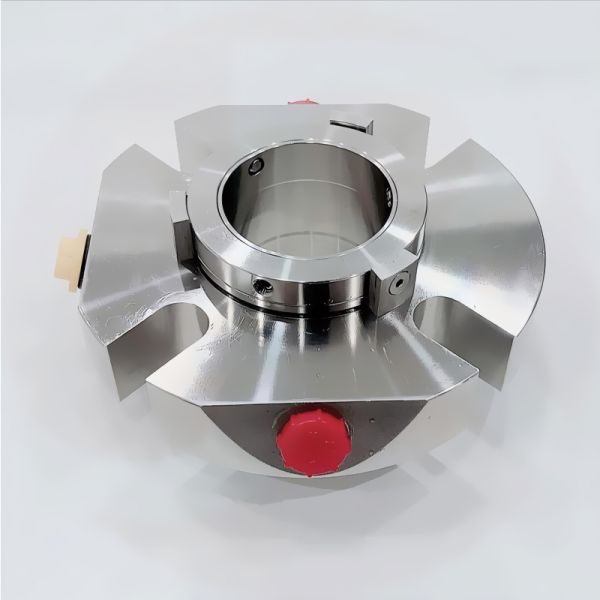

Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Chesterton 150 150L Cartridge Mechanical Seal for ANSI ISO Process Pumps
Specifications
Standards and Approvals :
ISO-3069-S, ISO-3069C, ASME B73.1, ACS
Brand Name :
BESTSEAL
Elastomers :
FKM, EPDM, FEPM, FFKM
Speed :
20 m/s ( 4000 fpm )
Springs :
EN 2.4819 (Alloy C-276)
Supply Ability :
1000000/Month
Certification :
ISO9001
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
MOQ :
1pc
Faces :
CB, TC, SSC
Pressure :
711 mm (28") Hg Vacuum – 20 bar g (300 psig)
Variants :
150L - Single Screw Clamp Lock Ring, 150S - Short Outboard Length, 150OS - Oversized Seal Chambers, 150QD - Quench & Drain Ports
Place of Origin :
CHINA
Size Range :
25 mm to 120 mm (.938 inch to 4.750 inch)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Temperature :
-30 to 205 °C (-20 to 400 °F)
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Delivery Time :
15 working days
Model Number :
Chesterton 150/150L
Packaging Details :
Carton
Description

Chesterton 150 150L General Duty Single Cartridge Mechanical Seal for ANSI ISO Process Pumps

  • Mechanical Seals
  • Cartridge Seals
150/150L

Simple Installation and Increased Reliability Plant-Wide for General Duty Applications

Designed for upgrading equipment sealed with packing or component style mechanical seals, the 150 single seal makes general industry sealing simple, reliable, and affordable. With a compact cartridge profile designed to fit standard ANSI/ISO process pumps, the seal is engineered to install easily and reliably. The single screw clamp lock ring design (150L) further increases efficiency and reduces installation error.

Product Features
  • Economical upgrade from packing and component seals
  • Field repairable cartridge design
  • Engineered gland annulus increases cooling and improves seal reliability
Technical Data
Size Range 25 mm to 120 mm (.938 inch to 4.750 inch)
Standards and Approvals ISO-3069-S, ISO-3069C, ASME B73.1, ACS
Variants 150L - Single Screw Clamp Lock Ring
150S - Short Outboard Length
150OS - Oversized Seal Chambers
150QD - Quench & Drain Ports
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -30 to 205 °C (-20 to 400 °F)
Speed 20 m/s ( 4000 fpm )
Pressure

711 mm (28") Hg Vacuum – 20 bar g (300 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
