Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
Specifications
Speed :
25 m/s ( 5000 fpm )
Certification :
ISO9001
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Model Number :
Chesterton 280
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2, ATEX
MOQ :
1pc
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Pressure :
711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Place of Origin :
CHINA
Temperature :
-55 to 300 °C (-67 to 570 °F)
Supply Ability :
1000000/Month
Springs :
EN 2.4819 (Alloy C-276)
Brand Name :
BESTSEAL
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Faces :
CB, RSC, SSC
Delivery Time :
15 working days
Elastomers :
FKM, EPDM, FEPM, FFKM
Packaging Details :
Carton
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Description

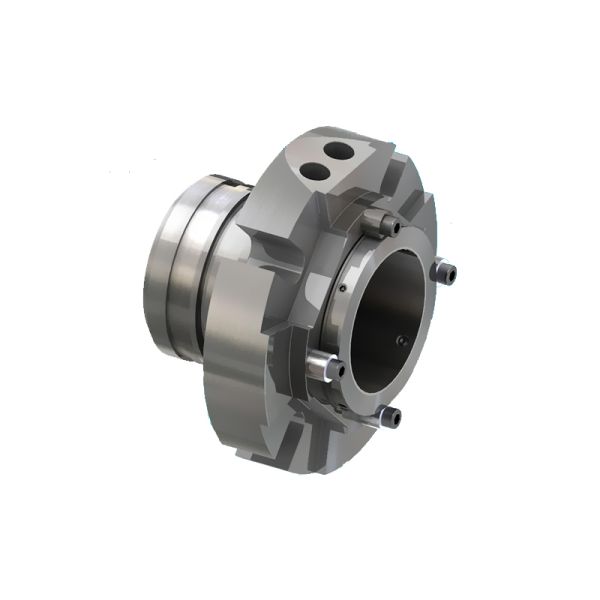

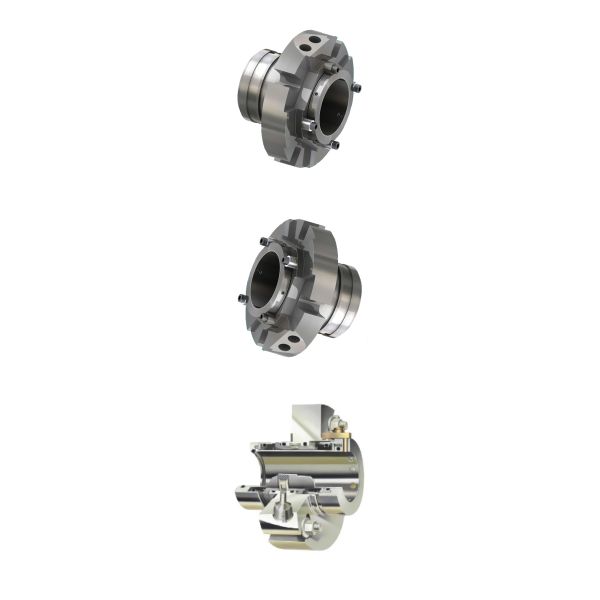

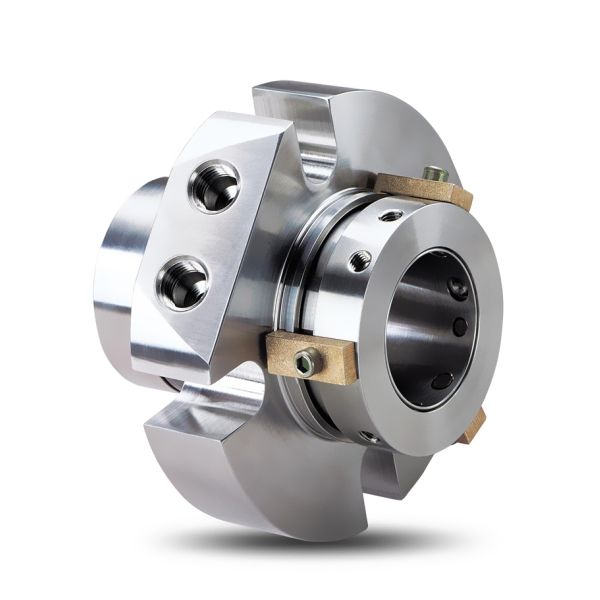

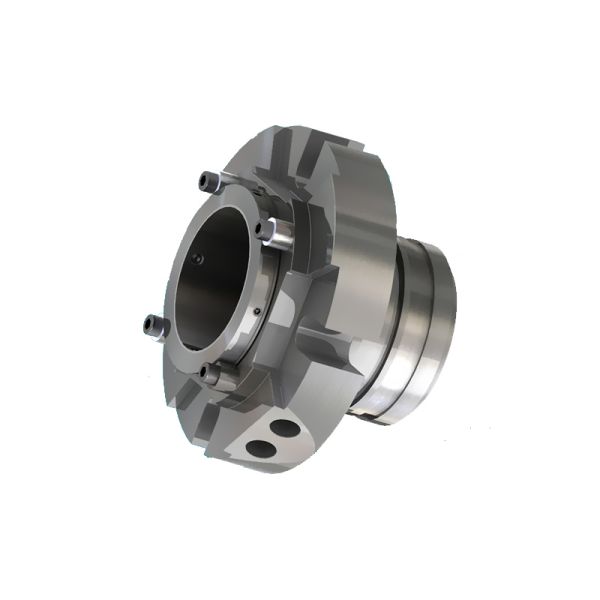

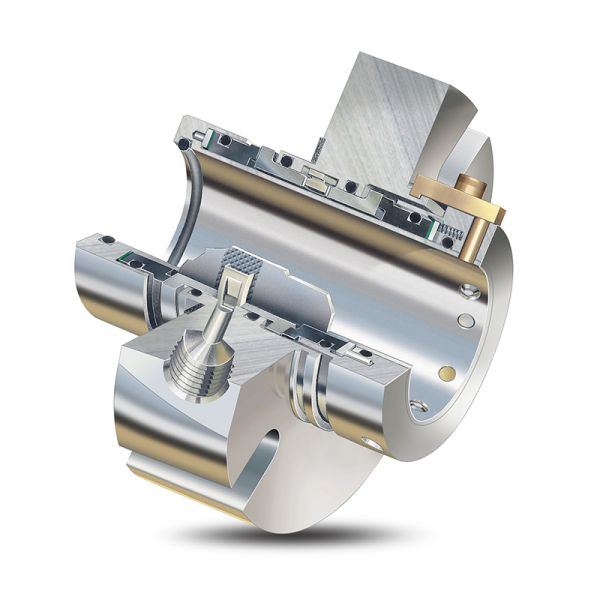

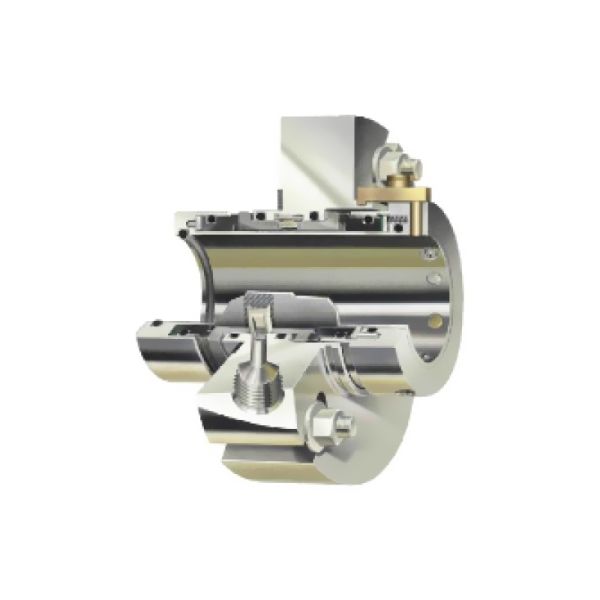

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators and Mixers

  • Mechanical Seals
  • Cartridge Seals
280

Heavy Duty Double Cartridge Seal

A double seal design for severe duty and enhanced reliability in difficult applications - including agitators and mixers.

Product Features
  • Maximum solids handling capability
  • Motion tolerant for mixer applications
Technical Data
Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2, ATEX
Materials
Faces CB, RSC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 25 m/s ( 5000 fpm )
Pressure

711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Notes

Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.


Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers

Chesterton 280 Heavy Duty Double Cartridge Mechanical Seal for Agitators Mixers
