Specifications
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Elastomers :
FKM, EPDM, FEPM, FFKM
Variants :
S20CS - Coatings Seal, S20OS - Oversized Seal Chambers
Supply Ability :
1000000/Month
Delivery Time :
15 working days
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Packaging Details :
Carton
Model Number :
Chesterton S10
MOQ :
1pc
Certification :
ISO9001
Place of Origin :
CHINA
Springs :
EN 2.4819 (Alloy C-276)
Faces :
CB, TC, SSC
Temperature :
-55 to 300 °C (-67 to 570 °F)
Speed :
25 m/s ( 5000 fpm )
Pressure :
711 mm (28") Hg Vacuum – 30 bar g (450 psig)
Brand Name :
BESTSEAL
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Description
Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal
  • Mechanical Seals
  • Cartridge Seals

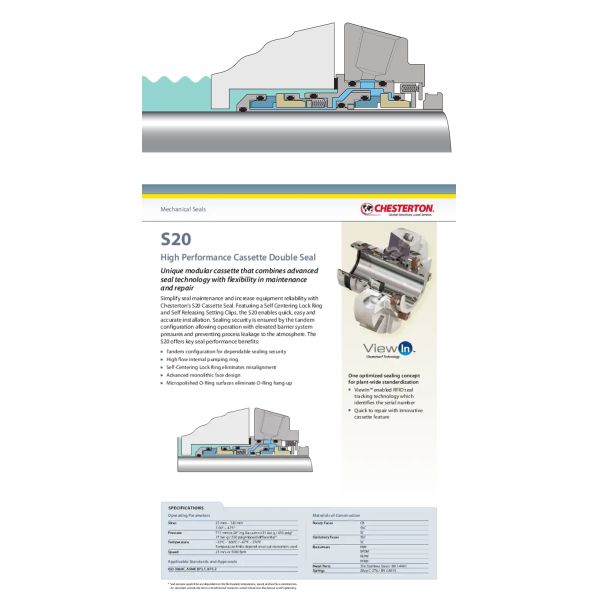

S20

High Performance Cassette Tandem Double Seal

Unique modular cassette that combines advanced seal technology with flexibility in maintenance and repair.

Simplify seal maintenance and increase equipment reliability with Chesterton's S20 Cassette Seal. Featuring a Self Centering Lock Ring and Self Releasing Setting Clips, the S20 enables quick, easy and accurate installation. Sealing security is ensured by the tandem configuration allowing operation with elevated barrier system pressures and preventing process leakage to the atmosphere.

Product Features
  • Tandem design for full pressure backup capability
  • Quick to repair with innovative cassette feature
Technical Data
Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2
Variants S20CS - Coatings Seal
S20OS - Oversized Seal Chambers
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 25 m/s ( 5000 fpm )
Pressure

711 mm (28") Hg Vacuum – 30 bar g (450 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.


Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal

Chesterton S20 High Performance Cassette Tandem Double Cartridge Mechanical Seal
