Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Chesterton 255 Standard Double Cartridge Mechanical Seal
Specifications
Speed :
20 m/s ( 4000 fpm )
Packaging Details :
Carton
Standards and Approvals :
ISO-3069-S, ASME B73.1, ASME B73.2
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Pressure :
711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Delivery Time :
15 working days
Temperature :
-55 to 300 °C (-67 to 570 °F)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
EN 2.4819 (Alloy C-276)
Certification :
ISO9001
Brand Name :
BESTSEAL
Supply Ability :
1000000/Month
Faces :
CB, TC, SSC
Place of Origin :
CHINA
Elastomers :
FKM, EPDM, FEPM, FFKM
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Model Number :
Chesterton 255
MOQ :
1pc
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Description

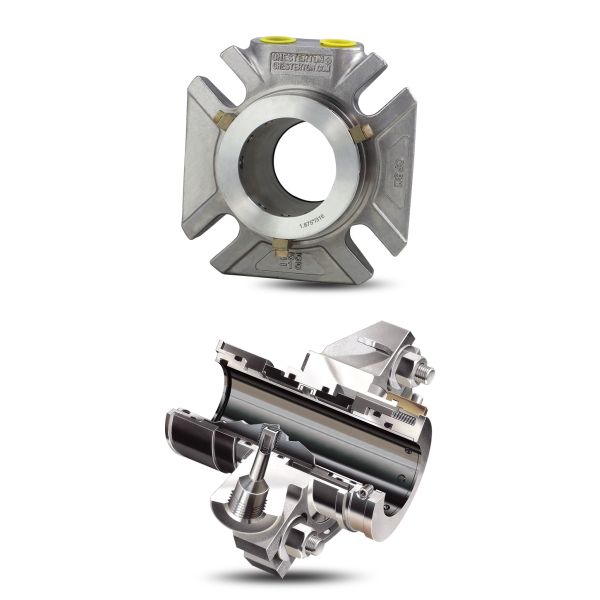

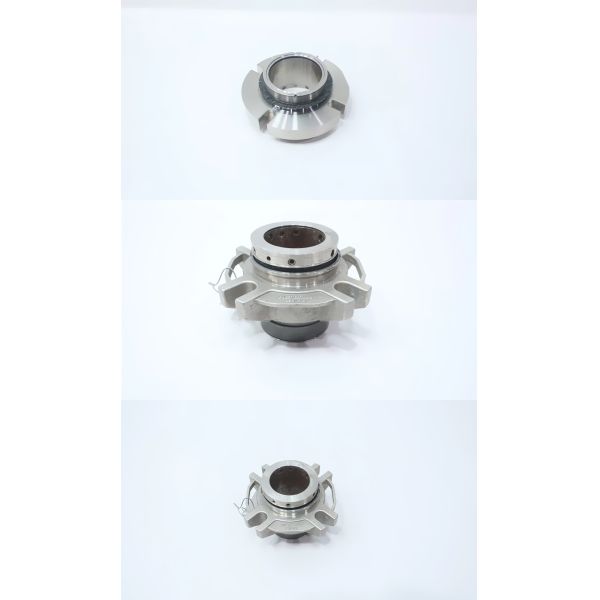

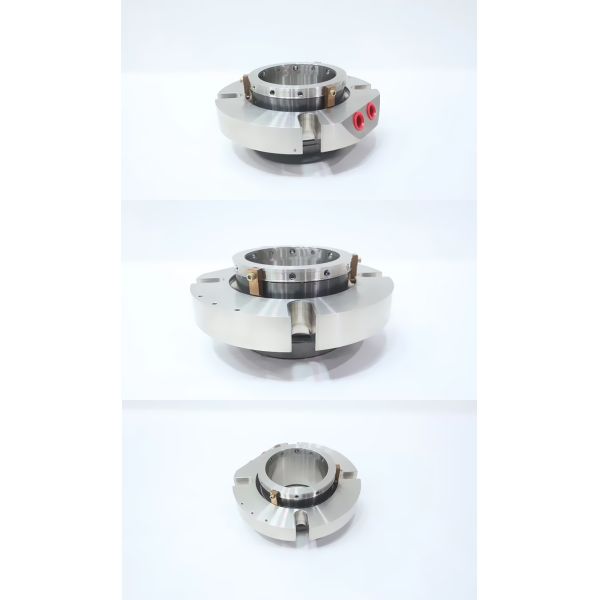

Chesterton 255 Standard Double Cartridge Mechanical Seal

  • Mechanical Seals
  • Cartridge Seals
255

Standard Double Cartridge Seal

A proven design and versatile performer providing reliable double sealing capability in a wide variety of process and barrier fluids.

Product Features
  • Improved motion capabilities to handle both static/dynamic misalignments and shaft motion
  • Geometric double balance eliminates shifting o-rings
Technical Data
Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069-S, ASME B73.1, ASME B73.2
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 20 m/s ( 4000 fpm )
Pressure

711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal

Chesterton 255 Standard Double Cartridge Mechanical Seal
