CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded With PE Insulation PVC Jacket
CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded With PE Insulation PVC Jacket
CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded With PE Insulation PVC Jacket
CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded With PE Insulation PVC Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40～80℃
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
CAT5E SF/UTP
Insulation :
PE
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
For home networks, office networks and small data centers
Supply Ability :
100km per day
SP :
1704741
Place of Origin :
China
Voltage :
300V
Packaging Details :
Packed in rolls or reels
Description

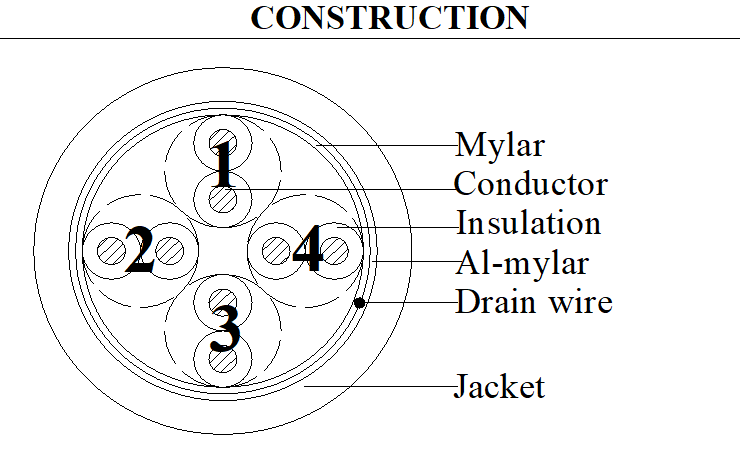

CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded with PE Insulation PVC Jacket

ITEM 4P×24AWG(7/0.20T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.20±0.008mm
O.D.(Ref) 0.60mm
INSULATION Material PE
Min.average thickness 0.16mm
Min.thickness at any point 0.12mm
O.D. 0.95±0.05mm
TWISTED O.D.(Ref) 1.90mm
CABLING Material Mylar
Drain wire Tinned copper stranded 7/0.20mm
Material Al-mylar(facing foil in)
Assembly 4P×24AWG(7/0.20T)
JACKET
Material PVC(UV resistance,-40～105℃)
Min.average thickness 0.65mm
Min.thickness at any point 0.52mm
O.D. 6.00±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:300V

Rated temperature:-40～80℃

Max. DC conductor resistance(20℃):94.2Ω/km

Voltage withstand test:AC 0.5kV/1min

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

CAT5E FTP Communication Cable 4P×24AWG Tinned Copper Stranded With PE Insulation PVC Jacket
