USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded With HDPE / SR-PVC Insulation PU Jacket
USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded With HDPE / SR-PVC Insulation PU Jacket
USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded With HDPE / SR-PVC Insulation PU Jacket
USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded With HDPE / SR-PVC Insulation PU Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40～80℃
Certification :
RoHS Reach
Jacket :
PU
Model Number :
NOUL
Insulation :
HDPE/SR-PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
Communication Moblie Devices
Supply Ability :
100km per day
SP :
1902816
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
30V
Description

NOUL USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded with HDPE/SR-PVC Insulation PU Jacket

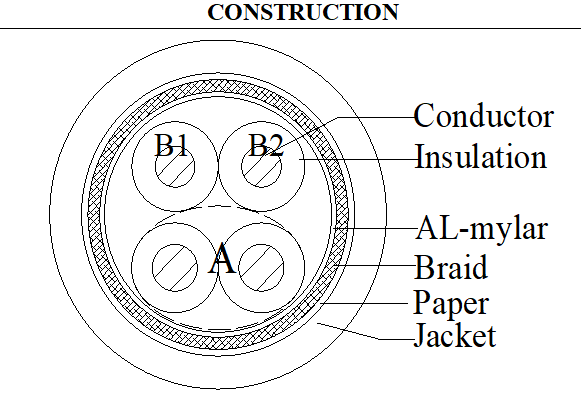

ITEM A : 1P×26AWG B : 2C×26AWG
CONDUCTOR Material Tinned copper stranded
Size 7/0.16mm 7/0.16mm
O.D.(Ref) 0.48mm 0.48mm
INSULATION Material HDPE SR-PVC
Min.average thickness 0.23mm 0.23mm
Min.thickness at any point 0.18mm 0.18mm
O.D. 1.03±0.05mm 0.95±0.05mm
TWISTED O.D. (Ref) 2.06mm /
CABLING Material AL-mylar, face out,≥25%
Assembly 1P×26AWG+2C×26AWG+AB
BRAID Material Tinned copper
Size 16/5/0.10mm,≥65%
JACKET Material Paper
Material PU
Min.average thickness 0.38mm
Min.thickness at any point 0.33mm
O.D. 4.60±0.15mm

This product is suitable for connecting communication moblie devices.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-40～80℃

Max. DC conductor resistance(20℃):A&B : 150Ω/km

Voltage withstand test:AC:0.5kV/1min

Impedance : 90±13.5Ω

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×240h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

USB Cable 1P×26AWG+2C×26AWG Tinned Copper Stranded With HDPE / SR-PVC Insulation PU Jacket
