CAT5E FTP Cable 4P×24AWG Bare Copper Stranded Cable With Foam PE Insulation PVC Jacket
CAT5E FTP Cable 4P×24AWG Bare Copper Stranded Cable With Foam PE Insulation PVC Jacket
CAT5E FTP Cable 4P×24AWG Bare Copper Stranded Cable With Foam PE Insulation PVC Jacket
CAT5E FTP Cable 4P×24AWG Bare Copper Stranded Cable With Foam PE Insulation PVC Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40～75℃
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
CAT5E FTP
Insulation :
Foam PE
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
For home networks, office networks and small data centers
Supply Ability :
100km per day
SP :
1501177
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Place of Origin :
China
Voltage :
30V
Packaging Details :
Packed in rolls or reels
Description

CAT5E FTP Communication Cable 4P×24AWG Bare Copper Stranded with Foam PE Insulation PVC Jacket

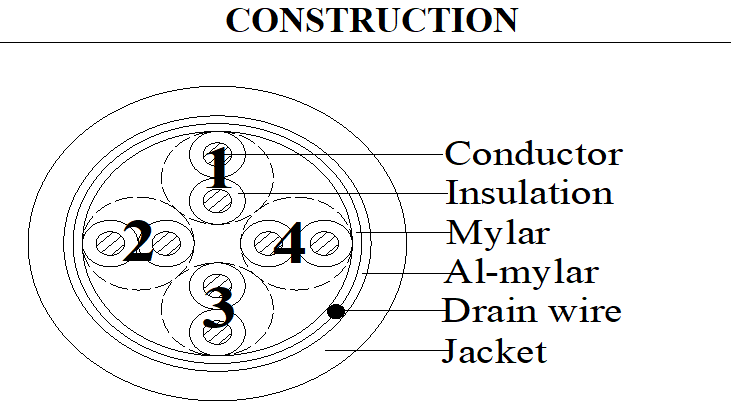

ITEM 4P×24AWG(7/0.20B)
CONDUCTOR Material Bare copper stranded
Size 7/0.20±0.008mm
O.D.(Ref) 0.60mm
INSULATION Material Foam PE
Min.average thickness 0.18mm
Min.thickness at any point 0.14mm
O.D. 0.98±0.05mm
TWISTED O.D.(Ref) 1.96mm
CABLING Wrapped Mylar
Drain Tinned copper stranded(7/0.20±0.008mm)
Material AL-mylar(foil facing in)
JACKET Material PVC (UV resistance)
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 6.50±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-40～75℃

Max. DC conductor resistance(20℃):93.8Ω/km

Voltage withstand test:AC:0.5kV/1min

Impedance : 100±15Ω

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:100±1℃×240h

Percent of original tensile strength:≥70%

Percent of original elongation:≥60%

UV resistance : UL1581 720h

CAT5E FTP Cable 4P×24AWG Bare Copper Stranded Cable With Foam PE Insulation PVC Jacket
