USB Cable 1P×28AWG+2C×22AWG Tinned Copper Stranded With HDPE/SR-PVC Insulation PVC Jacket
USB Cable 1P×28AWG+2C×22AWG Tinned Copper Stranded With HDPE/SR-PVC Insulation PVC Jacket
USB Cable 1P×28AWG+2C×22AWG Tinned Copper Stranded With HDPE/SR-PVC Insulation PVC Jacket
USB Cable 1P×28AWG+2C×22AWG Tinned Copper Stranded With HDPE/SR-PVC Insulation PVC Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
NOUL
Insulation :
HDPE/SR-PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
Communication Moblie Devices
Supply Ability :
100km per day
SP :
1604969
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
30V
Description

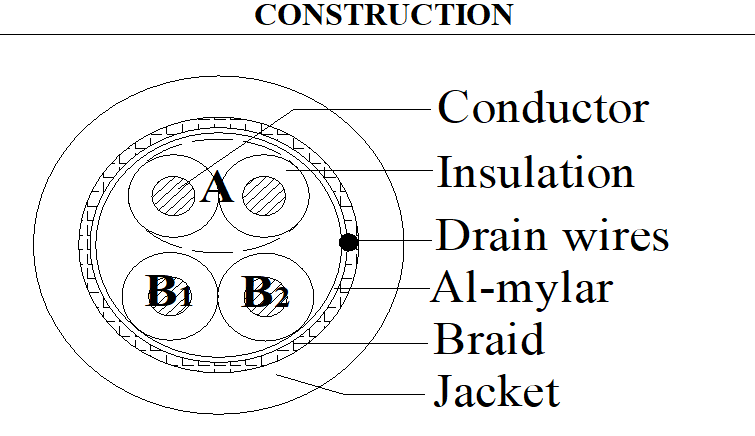

NOUL USB Cable 1P×28AWG+2C×22AWG Tinned Copper Stranded with HDPE/SR-PVC Insulation PVC Jacket

ITEM A:1P×28AWG B:2C×22AWG
CONDUCTOR Material Tinned copper stranded
Size 7/0.127±0.008mm 17/0.16±0.008mm
O.D.(Ref) 0.38mm 0.76mm
INSULATION Material HDPE SR-PVC
Min.average thickness 0.23mm 0.23mm
Min.thickness at any point 0.18mm 0.18mm
O.D. 0.85±0.05mm 1.30±0.10mm
TWISTED O.D. 1.70mm /
CABLING Material Al-mylar(foil facing out)
Assembly 1P×28AWG+2C×22AWG
DRAIN Material Tinned copper stranded
Size 7/0.127±0.008mm
BRAID Material Tinned copper
Size 16/6/0.10mm(75% min.)
JACKET Material PVC
Min.average thickness 0.51mm
Min.thickness at any point 0.43mm
O.D. 5.00±0.15mm

This product is suitable for connecting communication moblie devices.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):A:239Ω/km B:59.4Ω/km

Voltage withstand test:AC:0.5kV/1min

Inpedance(A):90±15% Ω

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×240h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1

Deformation test:50%Max
