CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-20～80℃
Certification :
RoHS Reach
Jacket :
LSHF
Model Number :
CAT5E SF/UTP
Insulation :
PE
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
For home networks, office networks and small data centers
Supply Ability :
100km per day
SP :
1702539
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Place of Origin :
China
Voltage :
30V
Packaging Details :
Packed in rolls or reels
Description

CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded with PE Insulation LSHF Jacket

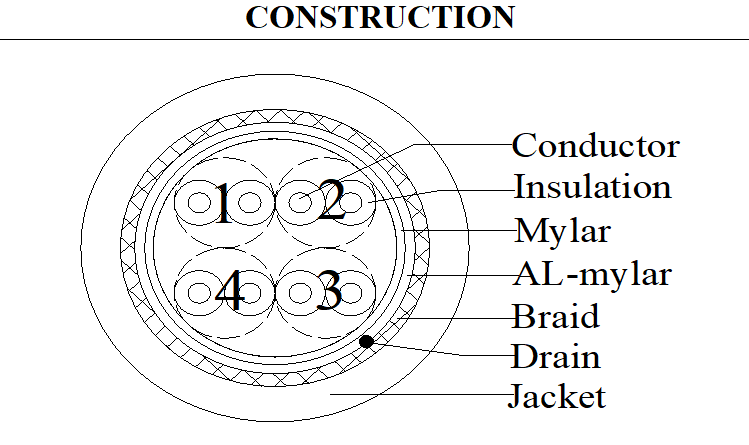

ITEM 4P×26AWG(7/0.16B)+MADB
CONDUCTOR Material Bare copper stranded
Size 7/0.16±0.008mm
O.D.(Ref) 0.48mm
INSULATION Material PE
Min.average thickness 0.20mm
Min.thickness at any point 0.16mm
O.D. 0.92±0.05mm
TWISTED O.D.(Ref) 1.84mm
CABLING Material Mylar
Material AL-mylar(Foil facing out)
DRIAN Material Tinned copper stranded
Size 7/0.16±0.008mm
BRAID Material Tinned copper
Size 16/9/0.10mm (80% nom.)
JACKET Material LSHF
Min.average thickness 0.40mm
Min.thickness at any point 0.32mm
O.D. 5.60±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-20～80℃

Max. DC conductor resistance(20℃):140Ω/km

Voltage withstand test:AC 1kV/1min

Impedance : 100±15Ω

Velocity of propadation : 67% nom.

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

IEC 60332-1-2

CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
