USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket
USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket
USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket
USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Certification :
RoHS Reach
Jacket :
TPE
Model Number :
NOUL
Insulation :
PE/PP
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
Communication Moblie Devices
Supply Ability :
100km per day
SP :
1604752
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Place of Origin :
China
Voltage :
30V
Packaging Details :
Packed in rolls or reels
Description

NOUL USB Cable 1P×32AWG+2C×25AWG Tinned Copper Stranded with PE/PP Insulation TPE Jacket

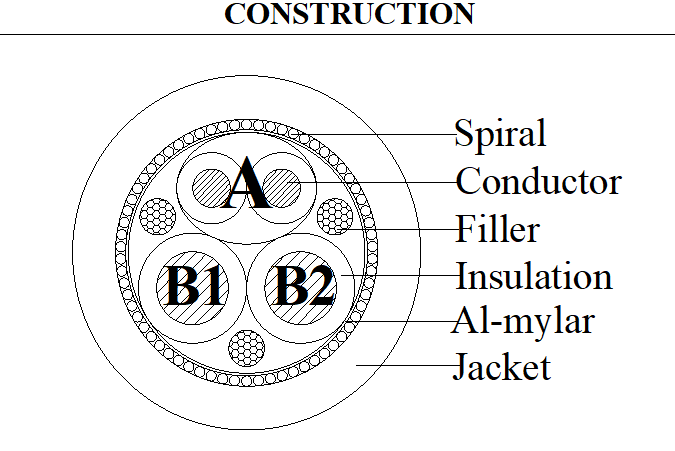

ITEM A : 1P×32AWG B : 2C×25AWG
CONDUCTOR Material Tinned copper stranded Tinned copper stranded+Nylon
Size 19/0.05±0.008mm 37/0.08±0.008mm
O.D.(Ref) 0.25mm 0.56mm
INSULATION Material PE PP
Min.average thickness 0.15mm 0.15mm
Min.thickness at any point 0.10mm 0.12mm
O.D. 0.55±0.05mm 0.85±0.05mm
TWISTED O.D.(Ref) 1.10mm /
CABLING Filler Nylon
Material Al-mylar(face out,Overlap:≥25%)
SPIRAL Material Tinned copper
Size 66±8/0.08±0.008mm 90% min.
JACKET Material TPE
Min.average thickness 0.35mm
Min.thickness at any point 0.28mm
O.D. 2.80±0.15mm

This product is suitable for connecting communication moblie devices.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):A : 588Ω/km , B: 199Ω/km

Voltage withstand test:AC:0.5kV/1min

Inpedance(A):90±13.5Ω

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:113±1℃×240h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

Flame test:FT2

Bending test: 500g,R=25.4mm,±60°,30c/min 5000cycles min.
