CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40～75℃
Certification :
RoHS Reach
Jacket :
LSZH
Place of Origin :
China
Voltage :
30V
Model Number :
CAT5E SFTP
Insulation :
Foam PE
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
For home networks, office networks and small data centers
Supply Ability :
100km per day
SP :
1500295
Packaging Details :
Packed in rolls or reels
Description

CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded with Foam PE Insulation LSZH Jacket

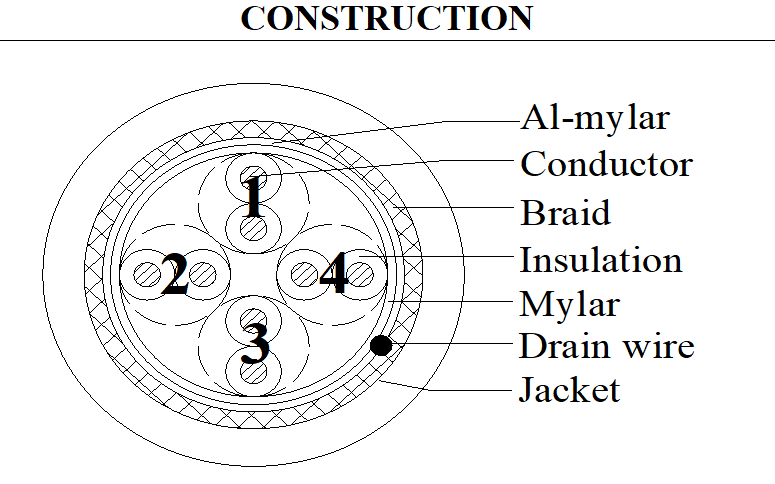

ITEM 4P×24AWG(7/0.20B)
CONDUCTOR Material Bare copper stranded
Size 7/0.20±0.008mm
O.D.(Ref) 0.60mm
INSULATION Material Foam PE
Min.average thickness 0.20mm
Min.thickness at any point 0.16mm
O.D. 1.00±0.05mm
TWISTED O.D.(Ref) 2.00mm
CABLING Material Mylar
Material Al-Mylar
DRAIN Material Tinned copper solid
Size 1/0.50mm
BRAID Material Tinned copper
Size 0.10mm(40%min.)
JACKET Material LSZH
Min.average thickness 0.58mm
Min.thickness at any point 0.48mm
O.D. 6.50±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-40～75℃

Max. DC conductor resistance(20℃):93.8Ω/km

Voltage withstand test:AC:0.5kV/1min

Min. insulation resistance : 5000MΩ.km

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥100%

Aged condition:100±1℃×48h

Percent of original tensile strength:≥70%

Percent of original elongation:≥60%

CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
