CAT5E SFTP Cable AWG26 × 4P TIA/EIA-568-B Twisted Pair Cable 80 °C 30V
CAT5E SFTP Cable AWG26 × 4P TIA/EIA-568-B Twisted Pair Cable 80 °C 30V
CAT5E SFTP Cable AWG26 × 4P TIA/EIA-568-B Twisted Pair Cable 80 °C 30V
CAT5E SFTP Cable AWG26 × 4P TIA/EIA-568-B Twisted Pair Cable 80 °C 30V
Specifications
Jacket :
PVC
Certification :
RoHS Reach
MOQ :
1000m
Packing :
Packed in rolls or reels
Application :
For home networks, office networks and small data centers
SP :
2302462
Payment Terms :
T/T,L/C,Western Union
Brand Name :
Shineplus
Temperature :
80℃
Place of Origin :
China
Insulation :
Foam HDPE
Price :
To be negotiated
Packaging Details :
Packed in rolls or reels
Model Number :
CAT5E SFTP
Supply Ability :
100km per day
Conductor :
Bare copper stranded
Delivery Time :
3-4 Weeks
Voltage :
30V
Description

CAT 5e S/FTP AWG26 × 4pairs TIA/EIA-568-B Twisted Pair Cable 80 °C 30V

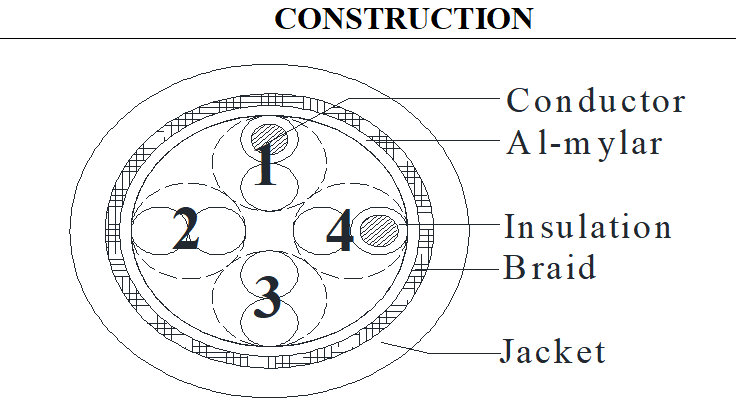

ITEM 4P×26AWG(7/0.16B)
CONDUCTOR Material Bare copper stranded
Size 7/0.16±0.008mm
O.D.(Ref) 0.48mm
INSULATION Material Foam HDPE
Min.average thickness 0.13mm
O.D. 0.80±0.08mm
TWISTED O.D.(Ref) 1.60mm
CABLING Material /
WRAPPED Material Al-mylar(face out)；≥25%
BRAID Material Tinned copper
Size 0.10mm,≥85%
JACKET Material PVC
Min.average thickness 0.38mm
Min.thickness at any point 0.31mm
O.D. 4.90±0.10mm

Insulation Color:1.blue,white/blue 2.orange,white/orange 3.green ,white/green 4.brown,white/brown

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):140Ω/km

Voltage withstand test:AC 0.5kV/1min

Impedance:100±15Ω

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
