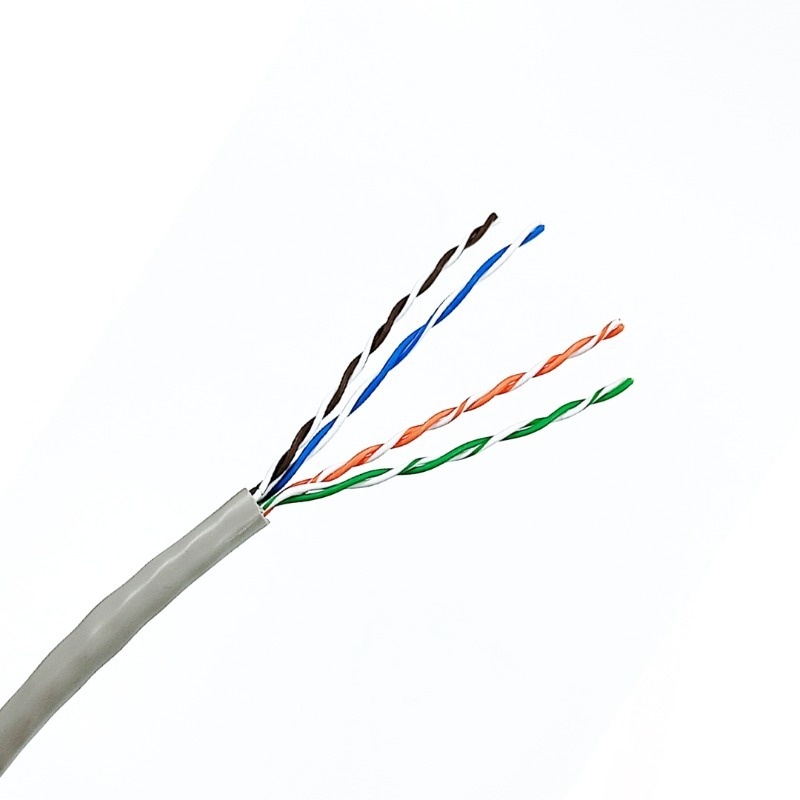

CAT5E UTP Communication Wire and Cable 4P 26AWG With HDPE Insulation PVC Jacket
CAT5E UTP Communication Wire and Cable 4P 26AWG With HDPE Insulation PVC Jacket
CAT5E UTP Communication Wire and Cable 4P 26AWG With HDPE Insulation PVC Jacket
CAT5E UTP Communication Wire and Cable 4P 26AWG With HDPE Insulation PVC Jacket
Specifications
Temperature :
80℃
Name :
Communication Wire and Cable
Place of Origin :
China
Delivery Time :
3-4 Weeks
Certification :
RoHS Reach
Packaging Details :
Packed in rolls or reels
Insulation :
HDPE
Jacket :
PVC
Brand Name :
Shineplus
SP :
1601207
MOQ :
1000m
Model Number :
CAT5E UTP
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Application :
For home networks, office networks and small data centers
Supply Ability :
100km per day
Conductor :
Bare Copper Stranded
Price :
To be negotiated
Voltage :
30V
Description

CAT5E UTP Communication CABLE 4P 26AWG with HDPE Insulation PVC Jacket

ITEM 4P×26AWG(7/0.16B)
CONDUCTOR Material Bare Copper stranded
Size 7/0.16±0.008mm
O.D.(Ref) 0.48mm
INSULATION Material HDPE
Min.average thickness 0.15mm
Min.thickness at any point 0.12mm
O.D. 0.80±0.06mm
TWISTED O.D.(Ref) 1.60mm
CABLING Assembly 4P×26AWG(7/0.16B)
JACKET Material PVC (UV resistance )
Min.average thickness 0.50mm
Min.thickness at any point 0.40mm
O.D. 5.00±0.20mm

For home networks, office networks and small data centers

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):148Ω/km

Voltage withstand test:AC 1.5kV/1min

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
