Specifications
Brand Name :
ARVON
Model Number :
ARP6-502S
Certification :
no
Place of Origin :
DONGGUAN
MOQ :
1 SET
Price :
NEGOTIATE
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
NEGOTIATE
Delivery Time :
NEGOTIATE
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Type :
ARP3-502S
Arm length :
500MM
Z axis stroke :
200MM
Load :
rated 2KG/max 6KG
Stander cycle time :
0.39/M Round-trip arch movement
Repetitive positioning accuracy :
±0.02MM Plane coordinate
Description

ARP6 Series industrial roboot

ARP6 series

Type: ARP3-502S

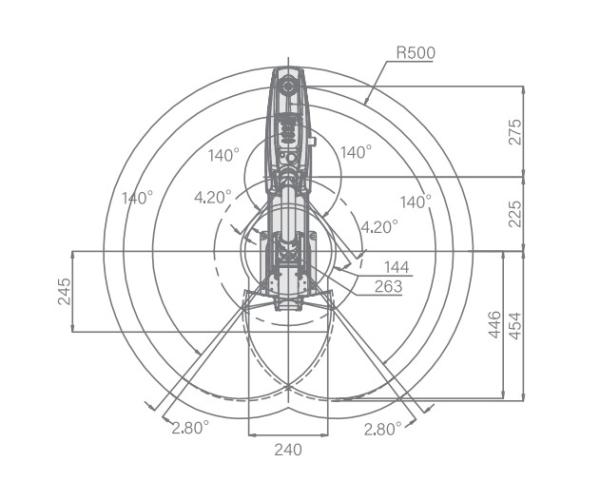

Work-range: Arm length 500MM Z axis stroke 200MM

Load: rated 2KG/max 6KG

Stander cycle time: 0.39/M Round-trip arch movement

Maximum speed optimal stroke coordinate

Repetitive positioning accuracy: ±0.02MM ±0.01MM ±0.01°

Plane coordinate Z axis coordinate rotation angle

Parameter of each axis:

Axle umber

Content

 First axis

Second

axis

Third

axis

Fourth

axis
Max sport speed 6150mm/s 1100mm/s 2000°/S
Max sport range ±132° ±150° 200mm ±360°
Motor power consumption 400W 400W 200W 100W
Top pressure 100N
Body weight 19KGa(not cable included)

Note: the allowable inertia moment rating of the fourth axis is 0.01kg·m², the maximum value is 0.12kg·m².

Electrical parameter:

Origin return no need to reset the origin
User circuit 26 pins (D-sub interface)
User gas path ɸ4mm*2,ɸ6mm*2
Visual interface M12*2Gigabit network port
Installation environment

Standard type/dust proof type (fixed product)
