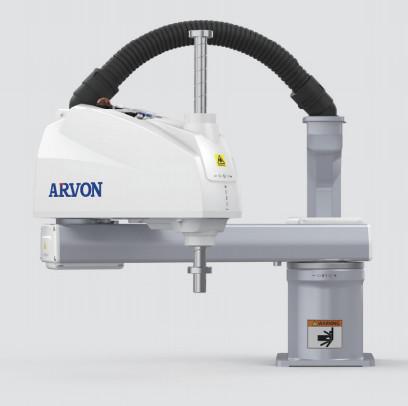

Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Specifications
Brand Name :
ARVON
Model Number :
ARP10-702S
Certification :
no
Place of Origin :
Dongguan, China
MOQ :
1 SET
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
NEGOTIATE
Delivery Time :
NEGOTIATE
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Type :
ARR10-702S
Arm length :
700mm
Z axis stroke :
200mm
Load :
Rated 2kg/max 6kg
Standard Cycle Time :
0.42s
Repetitive Positioning Accuracy :
Plane Coordinate: ±0.02mm
Description

ARP10 series Four-axis industrial robot

Product Information
Type ARR10-702S
Working Range

Arm length 700mm

Z axis stroke 200mm
Load Rated 2kg/max 6kg
Standard Cycle Time

0.42s

Round-trip arch movement

Maximum speed optimal stroke coordinate

Industrial ARP10 Series Four Axis Robots With Vision Arm length 700mm
Repetitive Positioning Accuracy

Plane Coordinate: ±0.02mm

Z Axis Coordinate: ±0.01mm

Rotation Angle: ±0.01°

Axis Parameter

Axle Number

Content

 First Axis

Second

Axis

Third

Axis

Fourth

Axis
Max Sport Speed 7450mm/s 1100mm/s 2000°/S
Max Sport Range ±132° ±150° 200mm ±360°
Motor Power Consumption 400W 400W 200W 100W
Top Pressure 100N
Body Weight 20kg (not cable included)
Note

The fourth axis allows the moment of inertia.

Rated Value is 0.01kg·m².

The maximum value is 0.12kg·m².

Electrical Parameter
Origin Reset no need to reset the origin
User Circuit 26 pins (D-sub interface)
User Gas Path ɸ4mm*2, ɸ6mm*2
Visual Interface M12*2 (gigabit network port)
Installation Environment Standard type/dust proof type (fixed product)
