ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
Specifications
Brand Name :
ARVON
Model Number :
ARP6-602S
Certification :
no
Place of Origin :
Dongguan, China
MOQ :
1 SET
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
NEGOTIATE
Delivery Time :
NEGOTIATE
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Plane Coordinate :
±0.02mm
Z Axis Coordinate :
±0.01mm
Rotation Angle :
±0.01°
Arm length :
500mm
Z axis stroke :
200mm
Load :
Rated 2kg/max 6kg
Description

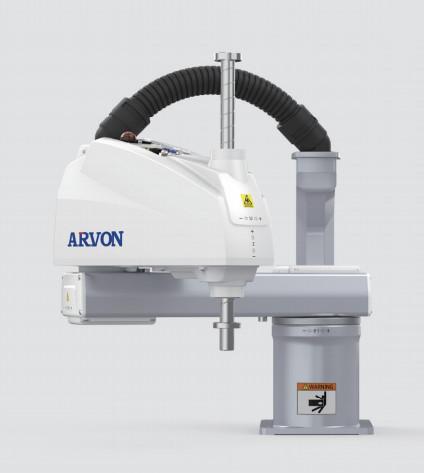

ARP6 series Four-axis industrial robot

Product Information
Type ARR6-502S

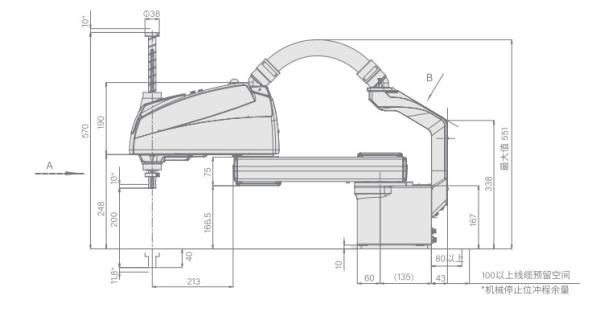

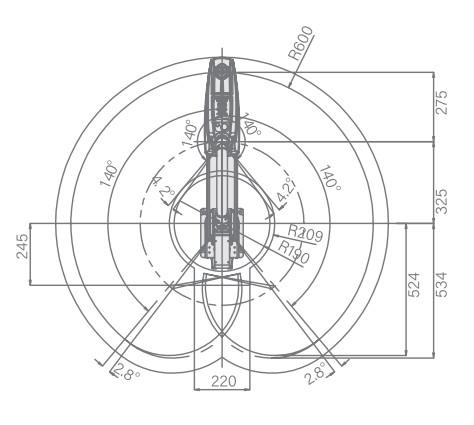

Working Range

Arm length 500mm

Z axis stroke 200mm
Load Rated 2kg/max 6kg
Standard Cycle Time

0.4s

Round-trip arch movement

Maximum speed optimal stroke coordinate

ARP6 Series Four Axis Robot Industrial Z Axis Stroke 200mm
Repetitive Positioning Accuracy

Plane Coordinate: ±0.02mm

Z Axis Coordinate: ±0.01mm

Rotation Angle: ±0.01°

Axis Parameter

Axle Number

Content

 First Axis

Second

Axis

Third

Axis

Fourth

Axis
Max Sport Speed 6150mm/s 1100mm/s 2600°/S
Max Sport Range ±270° ±150° 200mm ±360°
Motor Power Consumption 400W 400W 200W 100W
Top Pressure 100N
Body Weight 19kg (not cable included)
Note

The fourth axis allows the moment of inertia.

Rated Value is 0.01kg·m².

The maximum value is 0.12kg·m².

Electrical Parameter
Origin Reset no need to reset the origin
User Circuit 26 pins (D-sub interface)
User Gas Path ɸ4mm*2, ɸ6mm*2
Visual Interface M12*2 (gigabit network port)
Installation Environment Standard type/dust proof type (fixed product)
