Specifications
Brand Name :
ARVON
Model Number :
ARP3-401S
Place of Origin :
DONG GUAN,CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
NEGOTIATION
Delivery Time :
NEGOTIATION
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Certification :
no
arm length :
400MM
Z axis stroke :
150MM
Stander cycle time :
0.43/m
Load :
rated 1KG/max 3KG
Body weight :
16KGa(not cable included)
Top pressure :
100N
Description

ARP3 Series industrial roboot

Type:ARP3-401S

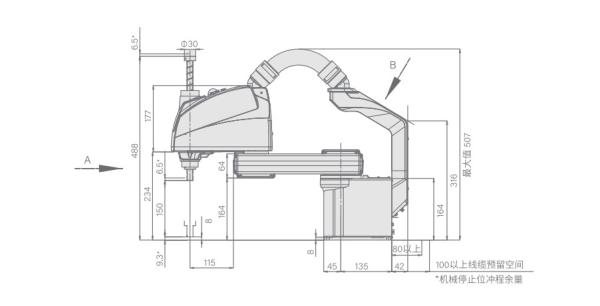

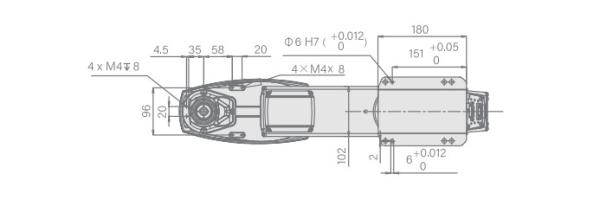

Working range: arm length 400MM Z axis stroke 150MM

Load: rated 1KG/max 3KG

Stander cycle time: 0.43/m

round-trip arch movement

Maximum speed optimal stroke coordinate

Repetitive positioning accuracy: ±0.01MM ±0.01MM ±0.01°

Plane coordinate Z axis coordinate rotation angle

Parameter of each axis:

Axle umber

Content

 First axis

Second

axis

Third

axis

Fourth

axis
Max sport speed 6000mm/s 1100mm/s 2600°/S
Max sport range ±132° ±141° 150mm ±360°
Motor power consumption 400W 100W 100W 100W
Top pressure 100N
Body weight 16KGa(not cable included)

Note: the allowable inertia moment rating of the fourth axis is 0.005kg·m², the maximum value is 0.05kg·m²

Electrical parameter:

Origin return no need to reset the origin
User circuit 26 pins (D-sub interface)
User gas path ɸ4mm*1,ɸ6mm*2
Visual interface M12*2Gigabit network port
installation environment

Standard type/dust proof type (fixed product)
