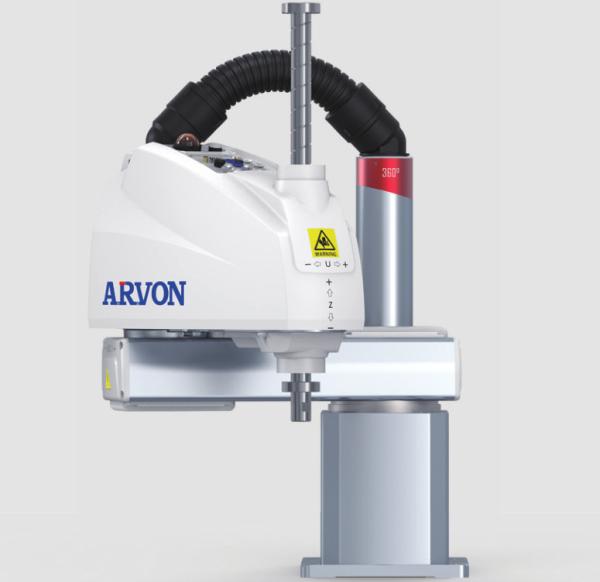

Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load
Specifications
Brand Name :
ARVON
Model Number :
ARR series
Certification :
CE certification
Place of Origin :
Dongguan, China
MOQ :
one set
Price :
negociate
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
negociate
Delivery Time :
negociate
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Series :
ARR series
Type :
ARR6-502s
Scara :
Vision robot
Axis :
Four
Load :
Rated 2kg/max 6kg
Body Weight :
19kg (not cable included)
Description

ARR6-502S

Scara ARR6-502S Robots With Vision Rated 2kg / Max 6kg Load

ARVON SCARA

Product Information
Type ARR6-502S
Working Range

Arm length 500mm

Z axis stroke 200mm
Load Rated 2kg/max 6kg
Standard Cycle Time

0.4s

Round-trip arch movement

Maximum speed optimal stroke coordinate
Repetitive Positioning Accuracy

Plane Coordinate: ±0.02mm

Z Axis Coordinate: ±0.01mm

Rotation Angle: ±0.01°

Axis Parameter

Axle Number

Content

 First Axis

Second

Axis

Third

Axis

Fourth

Axis
Max Sport Speed 6150mm/s 1100mm/s 2600°/S
Max Sport Range ±270° ±150° 200mm ±360°
Motor Power Consumption 400W 400W 200W 100W
Top Pressure 100N
Body Weight 19kg (not cable included)
Note

The fourth axis allows the moment of inertia.

Rated Value is 0.01kg·m².

The maximum value is 0.12kg·m².

Electrical Parameter
Origin Reset no need to reset the origin
User Circuit 26 pins (D-sub interface)
User Gas Path ɸ4mm*2, ɸ6mm*2
Visual Interface M12*2 (gigabit network port)
Installation Environment Standard type/dust proof type (fixed product)
