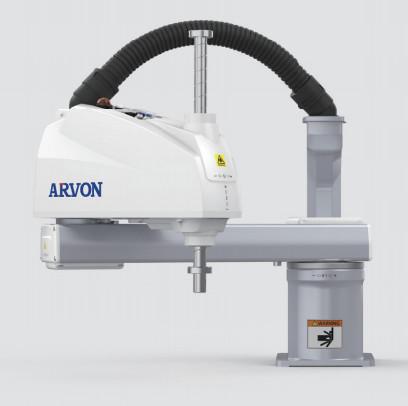

Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Arm length 800mm Scara Industrial Robot , Robots With Vision ARP10 Series
Specifications
Brand Name :
ARVON
Model Number :
ARP10-802S/ARP10-803S
Certification :
no
Place of Origin :
Dongguan, China
MOQ :
1 SET
Price :
NEGOTIATE
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
NEGOTIATE
Delivery Time :
NEGOTIATE
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
color :
whirte or blue
Working Range :
Arm length 800mm Z axis stroke 200/300mm
Load :
Rated 5kg/max 10kg
Plane Coordinate :
±0.025mm
Z Axis Coordinate :
±0.01mm
Rotation Angle :
±0.01°
Description

ARP10-802S/ARP10-803S

Product Information
Type ARR10-802S/ARP10-803S
Working Range

Arm length 800mm

Z axis stroke 200/300mm
Load Rated 5kg/max 10kg
Standard Cycle Time

0.499s

Round-trip arch movement

Maximum speed optimal stroke coordinate

Repetitive Positioning Accuracy

Plane Coordinate: ±0.025mm

Z Axis Coordinate: ±0.01mm

Rotation Angle: ±0.01°

Axis Parameter

Axle Number

Content

 First Axis

Second

Axis

Third

Axis

Fourth

Axis
Max Sport Speed 10600mm/s 1098mm/s 1581°/S
Max Sport Range ±132° ±152°

200mm

300mm

 ±360°
Motor Power Consumption 750W 750W 400W 400W
Top Pressure 250N
Body Weight 32kg (not cable included)
Note

The fourth axis allows the moment of inertia.

Rated Value is 0.05kg·m².

The maximum value is 0.45kg·m².

Electrical Parameter
Origin Reset no need to reset the origin
User Circuit 26 pins (D-sub interface)
User Gas Path ɸ4mm*2, ɸ6mm*2
Visual Interface M12*2 (gigabit network port)
Installation Environment Standard type/dust proof type (fixed product)
