Specifications
Brand Name :
ACEY
Model Number :
ACEY-BS01
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 6298~7128/Set (negotiable)
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Speed :
4000-4500 PCS/Hour
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
200kg
Dimensions :
L1110mm*W710mm*H1580mm
Description

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Product Description

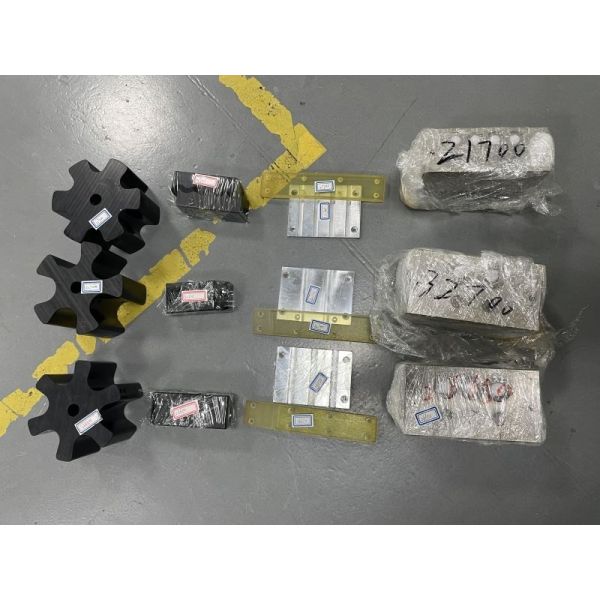

ACEY-BS01 Insulation paper sticking machine is specifically designed for the automatic pasting of barley paper insulation pads or PVC materials on the positive or negative electrodes of cylindrical lithium-ion batteries. It supports quick mold changeover, enabling flexible adaptation to different battery sizes, including 18650, 21700, 26650, 32650, and 32700 cylindrical cells.

Equipment Features

  1. The equipment has a compact structure design, beautiful appearance and small space occupation.
  2. The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.
  3. Suitable for various cylindrical lithium-ion batteries.
  4. Automated operation, high precision, and stable performance.

Main Technical Parameter

Voltage Supply Single-phase ~ 220V, 50Hz
Rated power 2KW
Surface pad material Highland barley paper or PVC material
Material specification
requirements		 The max diameter of barley paper roll material is 350MM
The inner diameter of paper roll core is 72-75MM
Battery type Automatic application of barley paper or PVC material to the positive or negative electrode of 18650, 21700, 26650, and 32700 battery cells.
Feeding method Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting
Pneumatic pressure 0.4-0.6Mpa
Cushioning power Electric or pneumatic

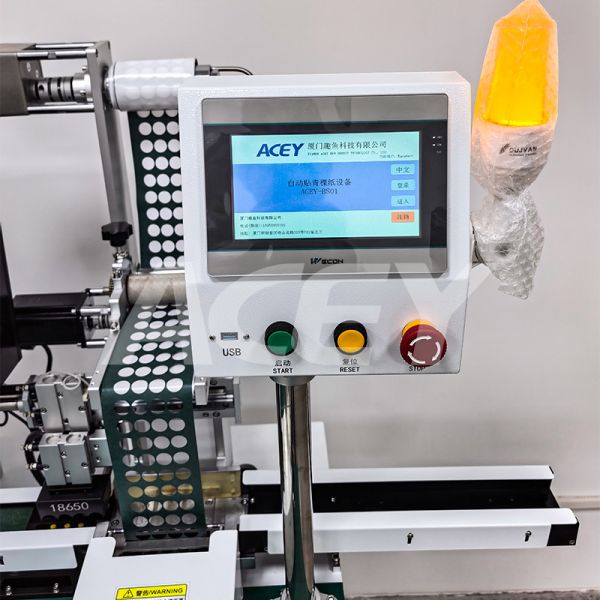

Control device 7.5 inch touch screen, PLC programmer and servo motor
Barley paper roll width 100mm
Speed 4000-4500PCS/hour, 4PCS per punch
Dimensions L1110mm*W710mm*H1580mm
Machine weight 200Kg
Knife mold Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water

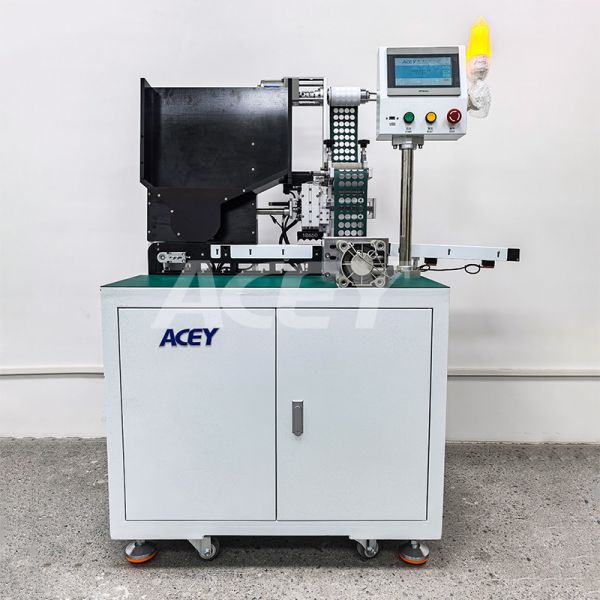

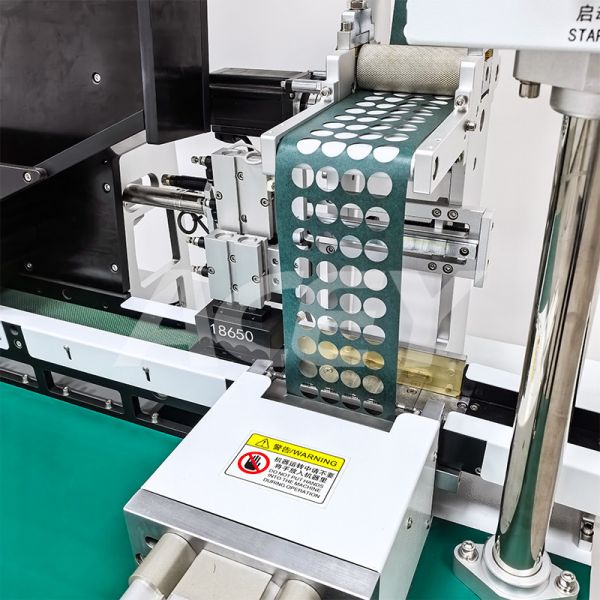

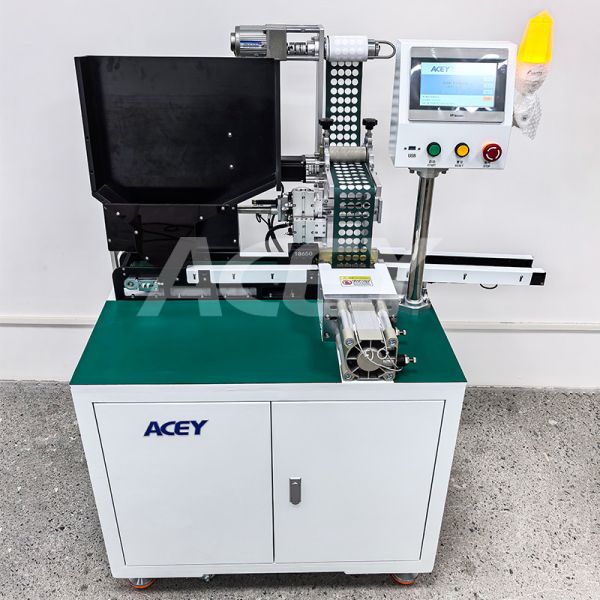

Product Display

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700
