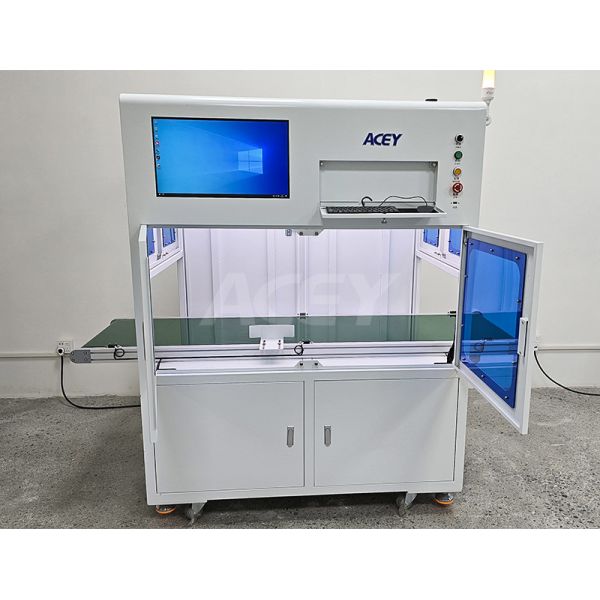

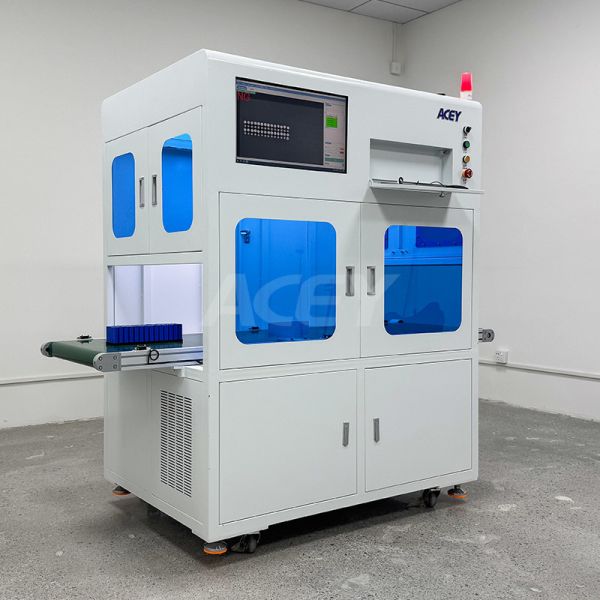

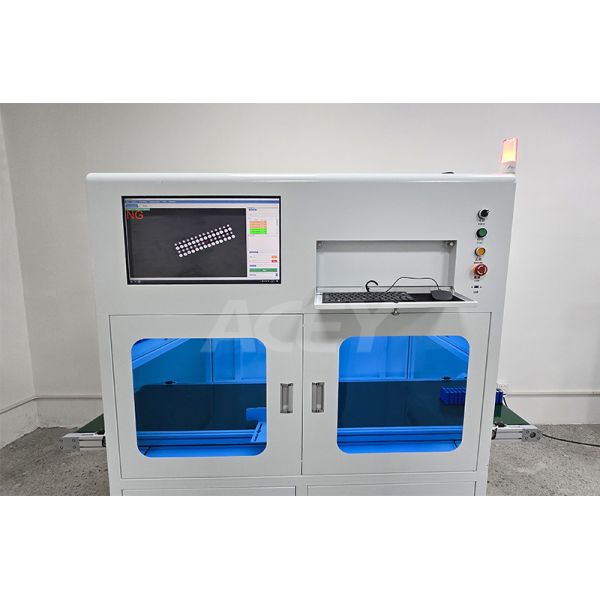

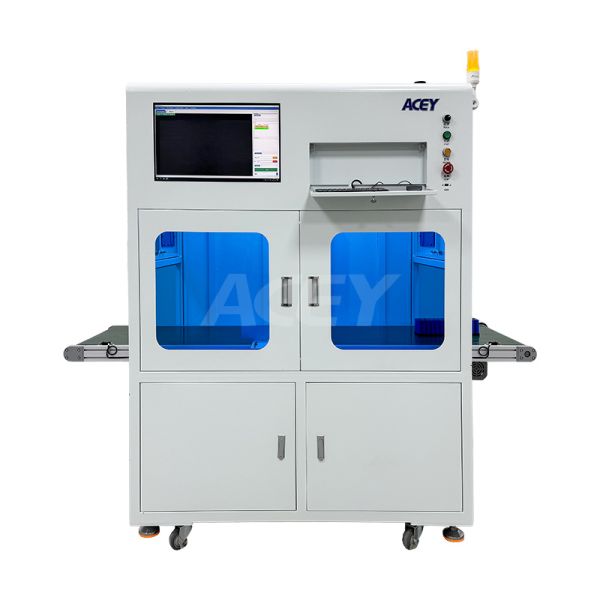

High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
High Speed Cylindrical Battery Electrode Inspection CCD Tester
Specifications
Machine Dimensions :
L1370*W830*H1870mm
Price :
USD 7280~8490/Set (negotiable)
Delivery Time :
7~35 Days
Model Number :
ACEY-CCD01C
Place of Origin :
China
Payment Terms :
T/T,PayPal,L/C,Western Union
Warranty :
1 Year Warranty with Lifetime Support
Weight :
150kg
Machine Power :
500W
Conveyor Specification :
L1200*W800mm
Brand Name :
ACEY
Detection Range :
L500*W400mm
Certification :
CE
Supply Ability :
200 Sets/Month
After-sales Service :
24/7 Technical Support
MOQ :
1 Set
Packaging Details :
Plywood Case
Description
High Speed Cylindrical Battery Electrode Inspection CCD Tester
Product Overview

The ACEY-CCD01C CCD Tester is an automated visual inspection system designed specifically for lithium-ion battery pack assembly. Powered by an industrial computer and fitted with a high-definition camera, the device accurately identifies the polarity of battery terminals, thereby preventing short circuits caused by incorrect orientation during welding.

Featuring a conveyor belt design, it automatically returns or passes batteries based on inspection results, greatly enhancing the efficiency of the battery pack assembly line.

Process Flow
The cell enters the detection area → Sampling scan → Positive and negative detection → NG automatic detection → OK
Technical Specifications
Parameter Specification
XY Axis Stroke 1200*500 (customizable)
Effective working travel: 400*300mm
Motor Transmission Speed 300mm/S
Operating System Industrial computer + smart camera
Detection Method Assembly line style
Repeated Positioning Accuracy ±0.1mm
Detection Efficiency 1 second/PCS
Machine Power 500W
Machine Weight 150KG
Maximum Bearing Weight 60KG
Input Power Single-phase AC 220V/50Hz
Dimensions L1370*W830*H1870mm

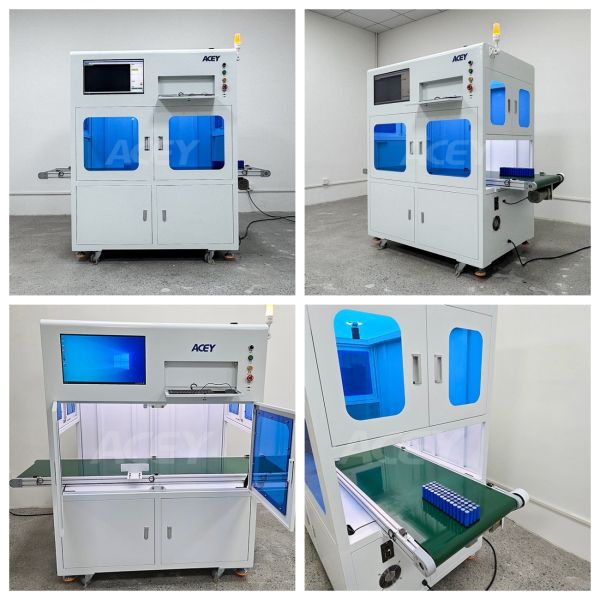

Product Display
High Speed Cylindrical Battery Electrode Inspection CCD Tester
