High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
Specifications
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Model Number :
ACEY-BS01
MOQ :
1 Set
Delivery Time :
7~35 Days
Dimensions :
L1110mm*W710mm*H1580mm
Payment Terms :
T/T,PayPal,L/C,Western Union
After-sales Service :
24/7 Technical Support
Weight :
200kg
Price :
USD 6298~7128/Set (negotiable)
Speed :
4000-4500 PCS/Hour
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty with Lifetime Support
Certification :
CE
Brand Name :
ACEY
Packaging Details :
Plywood Case
Place of Origin :
China
Description
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
Product Overview

ACEY-BS01 Automatic Insulation Paper Sticking Machine is designed for efficient and precise insulation protection of cylindrical lithium-ion battery cells. It automatically applies barley paper insulation pads or PVC materials to the positive or negative terminals, helping prevent short circuits and improve cell safety during battery pack assembly.

With a quick mold changeover system, the machine can accommodate multiple cylindrical cell sizes, including 18650, 21700, 26650, 32650, and 32700, making it suitable for flexible and high-efficiency battery production.

Equipment Features
  • Automatic Insulation Paper Sticking - Automatically applies barley paper insulation pads or PVC insulation materials to the positive or negative terminals of cylindrical battery cells, improving production efficiency.
  • Multi-Size Battery Compatibility - Designed for various cylindrical lithium-ion cells, including 18650, 21700, 26650, 32650, and 32700 models.
  • Quick Mold Changeover - The modular mold design allows fast and convenient changeover between different battery cell sizes, reducing production downtime.
  • High Precision & Stable Operation - Automatic feeding and sticking processes ensure accurate insulation pad positioning and consistent production quality.
  • Compact & Space-Saving Design - The machine features a compact structure and optimized layout, making it suitable for battery pack assembly lines with limited production space.
  • Easy to Move and Install - Equipped with universal movable casters, the machine can be easily relocated and integrated into different battery production workflows.
Technical Specifications
Voltage Supply Single-phase ~ 220V, 50Hz
Rated Power 2KW
Surface Pad Material Highland barley paper or PVC material
Material Specification Requirements The max diameter of barley paper roll material is 350MM
The inner diameter of paper roll core is 72-75MM
Battery Type Automatic application of barley paper or PVC material to the positive or negative electrode of 18650, 21700, 26650, and 32700 battery cells.
Feeding Method Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting
Pneumatic Pressure 0.4-0.6Mpa
Cushioning Power Electric or pneumatic
Control Device 7.5 inch touch screen, PLC programmer and servo motor
Barley Paper Roll Width 100mm
Speed 4000-4500PCS/hour, 4PCS per punch
Dimensions L1110mm × W710mm × H1580mm
Machine Weight 200Kg
Knife Mold Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water

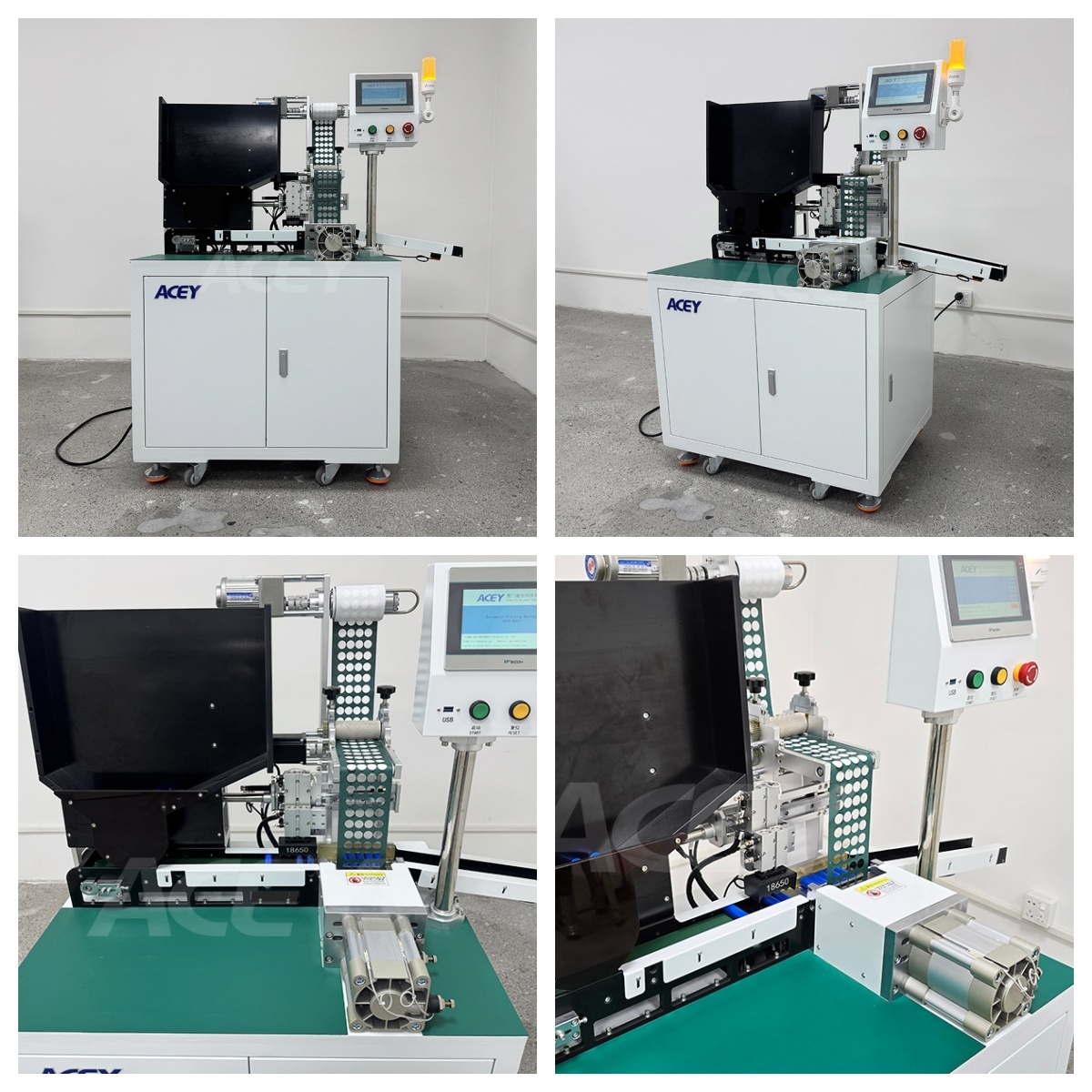

Product Display
High-Speed Automatic Multi-Size Battery Insulation Paper Pasting Machine
