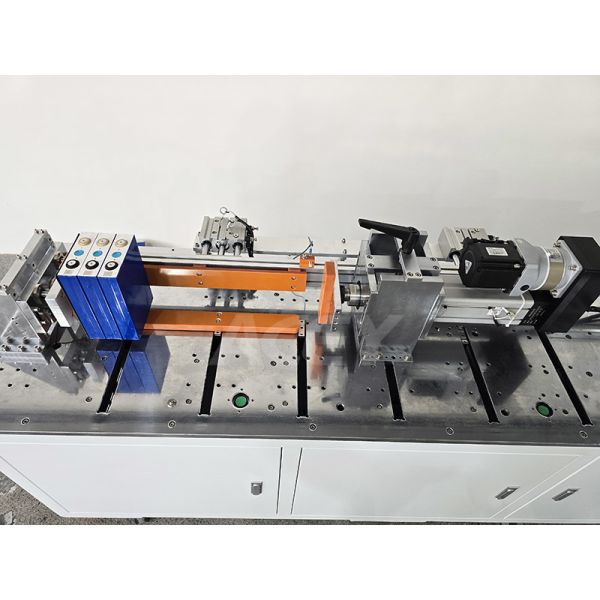

Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Specifications
Model Number :
ACEY-SP1200
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Packaging Details :
Plywood Case
MOQ :
1 Set
Delivery Time :
7~35 Days
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Supply Ability :
200 Sets/Month
Certification :
CE
Equipment Efficiency :
50 groups/hour (10PCS battery cells)
Extrusion stroke :
1200mm
Place of Origin :
China
Adaptable size range :
L: 50~250mm; W: 20~ 100mm; H: 100~300 mm
Price :
USD 7500~8300Set
Brand Name :
ACEY
Stacking maximum pressure :
500KG
Description
Automatic Prismatic Battery Module Stacking and Compression Machine for EV & ESS Pack Assembly
Product Overview

Designed specifically for prismatic lithium battery cells, the ACEY-SP1200 stacking and extruding machine performs comprehensive stacking, shape pressing, and bundling operations. The system is driven by a servo motor, screw module, and planetary reducer, with precise process control governed by an advanced pressure controller.

With an extrusion stacking thrust exceeding 500 kg, the machine maintains exceptional ease of operation while enabling real-time adjustment of stacking stroke and pressure. Triple protection features—software limits, hardware limits, and pressure limits—prevent over-extrusion and ensure high precision controllability throughout the extrusion process.

Key Features
  • 7-inch touch screen combined with PLC provides intuitive control and simplified operation
  • Editable parameters allow adaptation to various battery sizes, making type changes straightforward
  • Built-in high-precision pressure sensor maintains accuracy control within 0.1KG
  • Advanced control system with screw module, servo motor, and reducer delivers high extrusion output force and precise positioning accuracy
Technical Specifications
Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment Grafting Rate ≥98%
Extrusion Stroke 1200mm
Adaptable Size Range L: 50~250mm; W: 20~100mm; H: 100~300mm
Stacking Maximum Pressure 500KG
Pressure Control Error 0.1KG
Control System PLC + touch screen
Input Power Consumption 1KW
Input Power Supply AC220V/50HZ
Compressed Air Source None
Touch Screen 7-inch touch screen
Equipment Reference Size L*W*H=2370*500*1400mm
Weight 400KG
