1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SP1200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 5800~8000/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Extrusion Stroke :
1200MM
Stacking Pressure(Max) :
500Kg
Control System :
PLC+Touch Screen
Input Power Supply :
AC220V/50HZ
Machine Dimension :
L2370*W500*H1400mm
Machine Weight :
400KG
Description

1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure

Product Description

ACEY-SP1200 prismatic battery module stacking and pressing machine is designed for stacking, compressing, and strapping prismatic lithium battery cells, using a servo motor, ball screw module, and planetary gearbox to deliver precise and stable pressing force controlled by a pressure controller, with a maximum thrust exceeding 500 kg; it supports quick model changeover, allows accurate control of stacking stroke and pressure, and features triple protection—including software limits, hardware limit switches, and pressure limits—to prevent over-compression, ensuring high pressing accuracy, safety, and consistency in battery module assembly.

Product Features

  • Controlled by a 7-inch touchscreen HMI combined with a PLC, providing simple and intuitive operation.
  • Compatible with various battery models; different parameters can be edited and stored, enabling quick and easy model changeover.
  • Built-in high-precision pressure sensor with pressure control accuracy within ±0.1 kg.
  • Driven by a ball screw module with a servo motor and reducer, delivering high pressing force and precise positioning accuracy.

Main Technical Parameter

Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1200mm
Adaptable size range L:50~250mm；
W:20~ 100mm；
H: 100~300 mm；
Stacking maximum pressure 500KG
Pressure control error 0. 1KG
Control system PLC+touch screen
Input power consumption 1KW
Input power supply AC220V/50HZ
Compressed air source None
Touch screen 7 inch touch screen
Equipment appearance reference size L*W*H=2370*500*1400mm
Weight 400KG

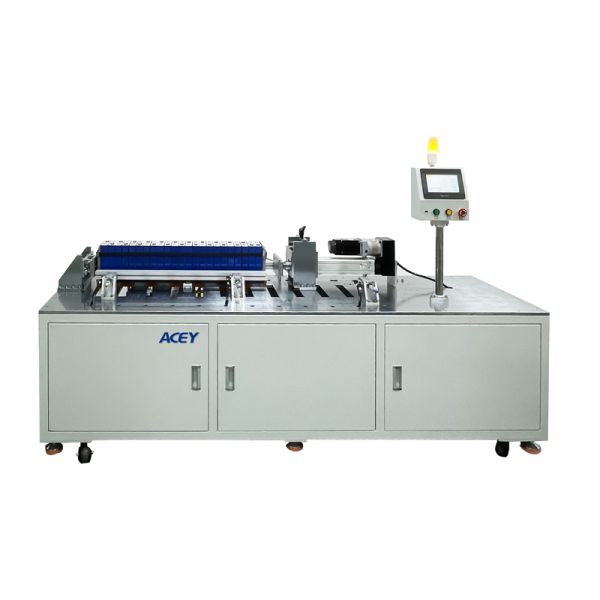

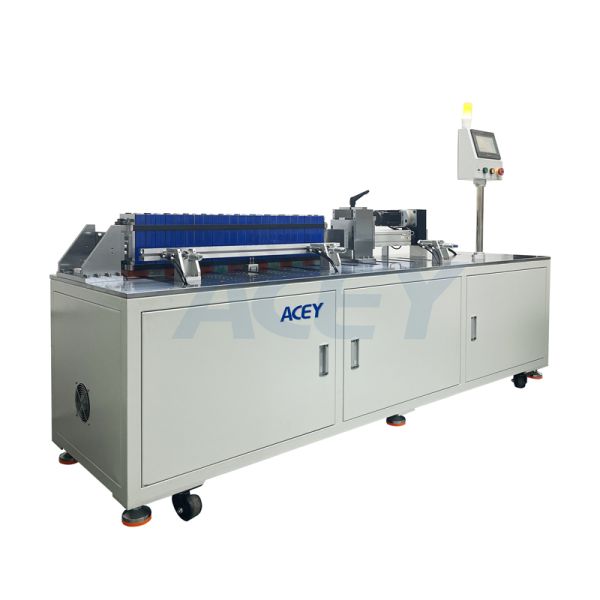

Product Display

1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure
