2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SS11
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~14080/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Sorting speed :
80ppm
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<500kg
Power Supply :
220V 50Hz±10%
Description
2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
Product Overview

The 2 in 1 cylindrical battery sorting and insulation paper pasting machine is an integrated automatic system designed for lithium battery cell grading and fish paper insulation processing. This equipment combines battery voltage and internal resistance sorting, insulation paper sticking, automatic feeding and receiving into one intelligent production unit, significantly improving battery pack assembly efficiency and reducing labor costs.

Equipment Features
  • Integrated in-line design combining insulation paper sticking and voltage/internal resistance sorting in one system
  • Two processes operate simultaneously, enabling continuous operation and higher throughput
  • Eliminates intermediate manual handling between processes, reducing labor cost and handling errors
  • Supports cylindrical cell models including 18650, 21700, 26650, and 32700
  • High-precision voltage and internal resistance measurement for reliable cell sorting
  • Stable mechanical structure and simple operation, suitable for long-term production use
  • Compact footprint, saving production floor space
Equipment Specifications
Item No. ACEY-SS11
Sticker Machine
Voltage Supply Single-phase ~ 220V, 50Hz
Rated Power 2KW
Surface Pad Material Highland barley paper or PVC material
Material Specification Max diameter of barley paper roll material: 350MM, Inner diameter of paper roll core: 72-75MM
Battery Type 18650 battery cell positive or negative pole automatically pasted with highland barley paper mat or PVC material
Feeding Method Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units
Pneumatic Pressure 0.4-0.6Mpa barley paper machine
Cushioning Power Electric or pneumatic
Control Device 7.5 inch touch screen, PLC programmer and servo motor
Barley Paper Roll Width 100mm
Speed 4000-4500PCS/hour, 4PCS per punch
Dimensions L1000mm×710mm×1500mm
Machine Weight 200Kg
Knife Mold Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water
Sorting Machine
Equipment Power Supply Single-phase ~220V±10%/50Hz±10%, power <300W
Battery Types 18650 (other sizes available)
Receiving Channel 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value
Test Parameters AC internal resistance, DC voltage
Internal Resistance Test Test range: 80mΩ, Accuracy: ±0.5%rdg, Display resolution: 0.01mΩ
Voltage Test Test range: 8V, Accuracy: ±0.015%rdg, Display resolution: 0.01mV
Sorting Speed 6000 pieces/hour
Unwinding Channel 400 batteries can be stored
Display Result 5.7 inch LCD screen + PC synchronous display + industrial computer
Weight <300Kg
Product Display

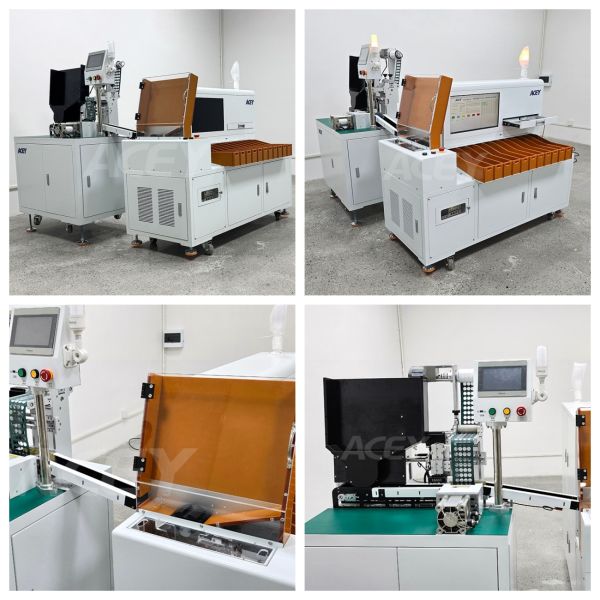

2 In 1 Cylindrical Battery Sorting And Fish Paper Pasting Machine
