Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Specifications
Payment Terms :
T/T,PayPal,L/C,Western Union
Warranty :
1 Year Warranty With Lifetime Support
Brand Name :
ACEY
Application :
Prismatic Lithium Battery
Packaging Details :
Plywood Case
Model Number :
ACEY-SP1200
Automatic grade :
Automatic
MOQ :
1 Set
Delivery Time :
7~35 Days
Control system :
Computer
Place of Origin :
China
Input power consumption :
1KW
Price :
USD5800~8000
Stacking maximum pressure :
500KG
Supply Ability :
200 Sets/Month
After-sales Service :
24/7 Technical Support
Certification :
CE
Input power supply :
AC220V/50HZ
Description
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Product Description

Designed for prismatic lithium batteries, the ACEY-SP1200 is a stacking and extrusion machine used for stacking, shape pressing, and bundling prismatic cells. A servo motor, screw module, and planetary reducer drive the stacking and extrusion process, managed by a pressure controller. With an extrusion stacking thrust exceeding 500KG, the machine is simple to operate and allows real-time control of stacking stroke and pressure. Triple protection—software limits, hardware limits, and pressure limits—prevents battery over-extrusion and ensures highly controllable extrusion precision.

Product Features
  • Computer controlled, easy to operate
  • Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type
  • Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG
  • Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy
Product Parameters
Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1200mm
Adaptable size range L:50~250mm; W:20~100mm; H:100~300mm
Stacking maximum pressure 500KG
Pressure control error 0.1KG
Control system Computer
Input power consumption 1KW
Input power supply AC220V/50HZ
Compressed air source None
Equipment appearance reference size L*W*H=2370*500*1400mm
Weight 400KG

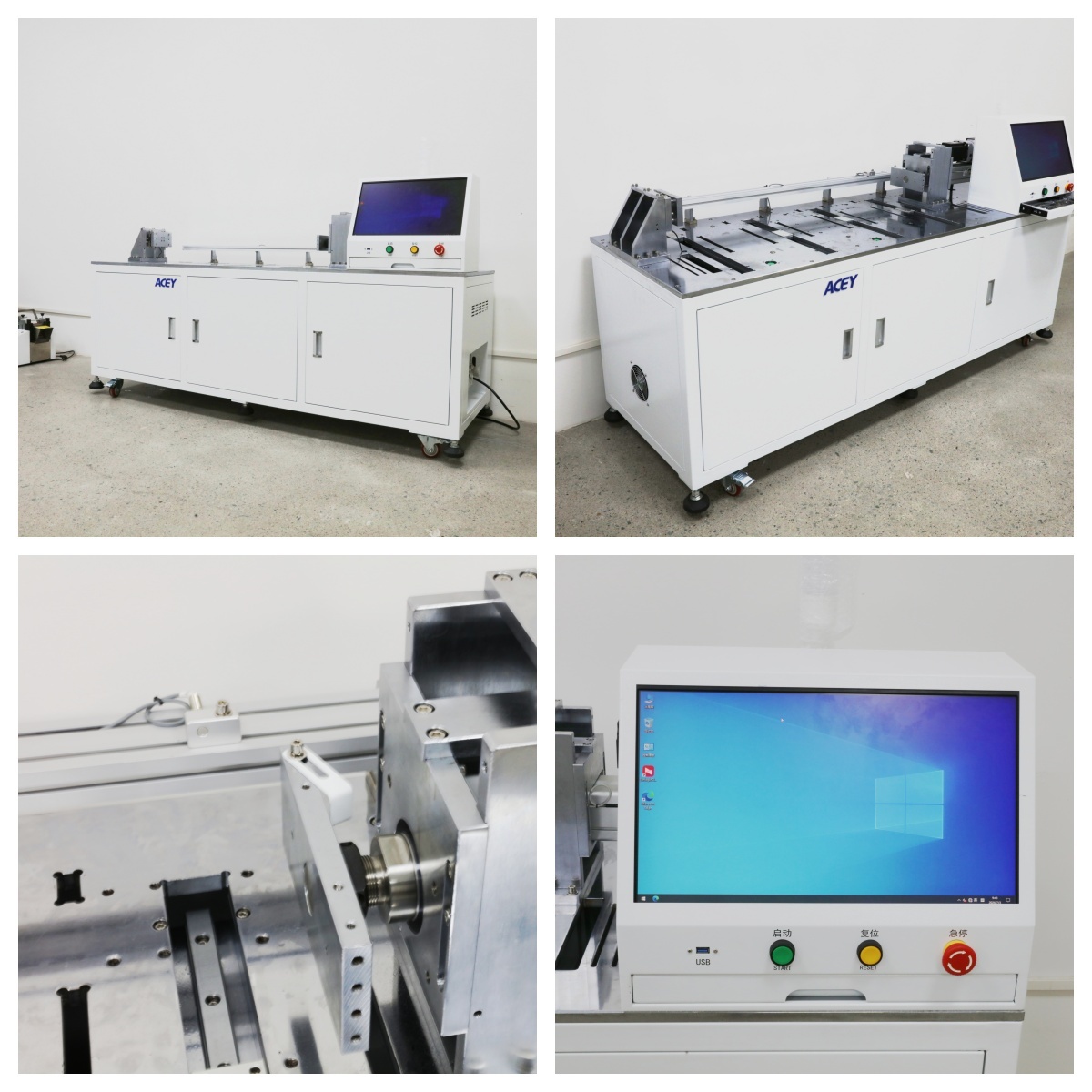

Product Display
Automatic Prismatic Battery Cell Stacking and Pressing Machine with PC Control
Frequently Asked Questions
What types of batteries can this stacking and pressing machine handle?
The machine is designed for lithium battery cell stacking and pressing applications. It can be configured according to different battery cell sizes, stacking requirements, and battery pack assembly processes.
What is the function of the PC system on the battery stacking machine?
The PC control system allows operators to set and manage key operating parameters, monitor the stacking and pressing process, and adjust production settings through a user-friendly interface. It also helps improve process consistency and ease of operation.
Can the pressing parameters be adjusted for different battery pack designs?
Yes. Pressing parameters can be adjusted according to the battery pack structure and production requirements. This allows the machine to accommodate different cell arrangements and compression requirements.
Can this machine be integrated into a complete lithium battery pack production line?
Yes. The automatic stacking and pressing machine can be used as part of a lithium battery pack assembly line. It can be combined with processes such as cell sorting, welding, insulation, BMS assembly, testing, and other PACK production equipment.
Can the battery stacking pressing machine be customized?
Yes. ACEY can customize the machine according to battery cell dimensions, pack structure, stacking method, pressing requirements, production capacity, and factory layout. Customers can also discuss specific automation and PC control requirements with our engineering team.
