Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BS01
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 6298~7128/Set (negotiable)
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Speed :
3500-4000 PCS/Hour
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
206kg
Dimensions :
L 1154mm*W 630mm*H 1354mm
Description
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
Product Overview

The ACEY-BS01 is a high-performance automated system designed for applying Highland Barley Paper (insulation paper) onto cylindrical batteries. Featuring an advanced control architecture that combines touch screen interface, motion controller, high-precision stepper motors, and pneumatic cylinders, this machine delivers exceptional accuracy, flexibility, and rapid operation.

  • Advanced Control System: Precision motion controller ensures stable performance and easy synchronization with production line equipment
  • High Efficiency: Processes approximately 4,000 pieces per hour, offering one of the most cost-effective solutions in the market
  • Smart Operations: Comprehensive production reporting, seamless peripheral device communication, and intuitive parameter adjustments via touch screen
  • Versatile Compatibility: Supports various cylindrical cells including 18650, 21700, 26650, and 32700
  • User-Friendly Design: Hopper-style feeding and simplified mechanical structure enable quick model changeovers and easy maintenance
  • Mobility: Equipped with high-quality universal casters for easy relocation and flexible workshop layout
Technical Specifications
Model ACEY-BS01
Compatible Batteries 18650, 21700, 26650, 32700 (Optional)
Pasting Efficiency ≥3,500 Pcs/H (Up to 4,000 Pcs/H)
Changeover Time Approx. 30 Minutes
Feeding Method Hopper / Feeding Trough
Control Components Touch Screen, Motion Controller, Stepper Motor, Cylinder
Build Quality Compact design with premium materials and layered aesthetic
Portability Integrated universal swivel casters
Equipment Size L1154mm * W630mm * H1354mm
Equipment Weight 206 kg
Appearance Color Computer White (Customizable upon request)
Total Power ≤1.5 kW

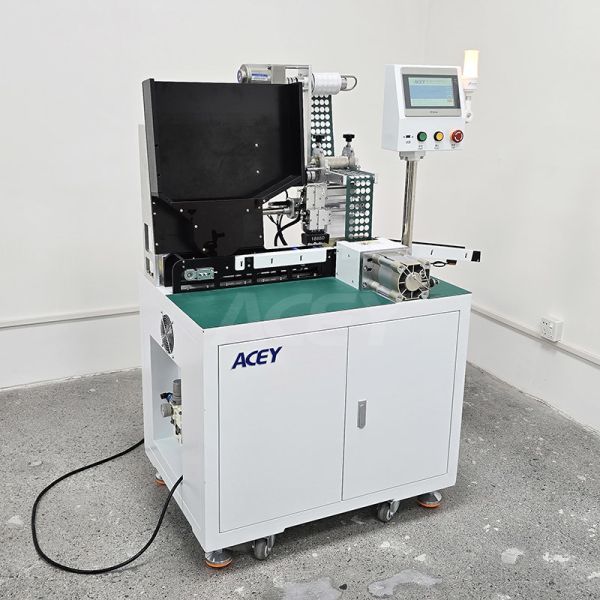

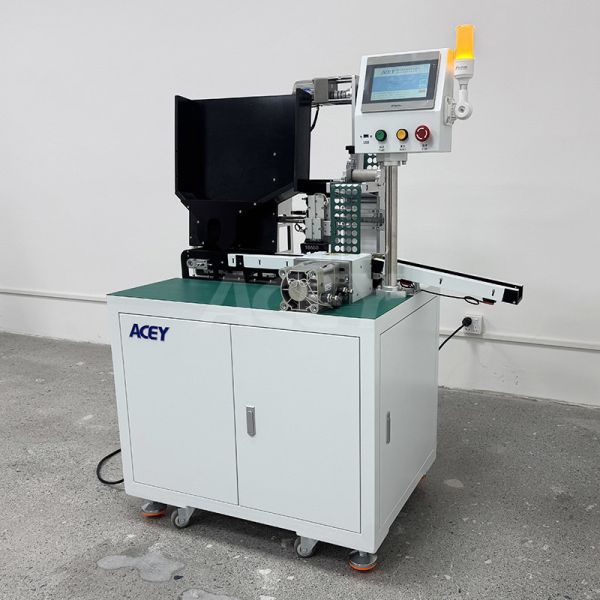

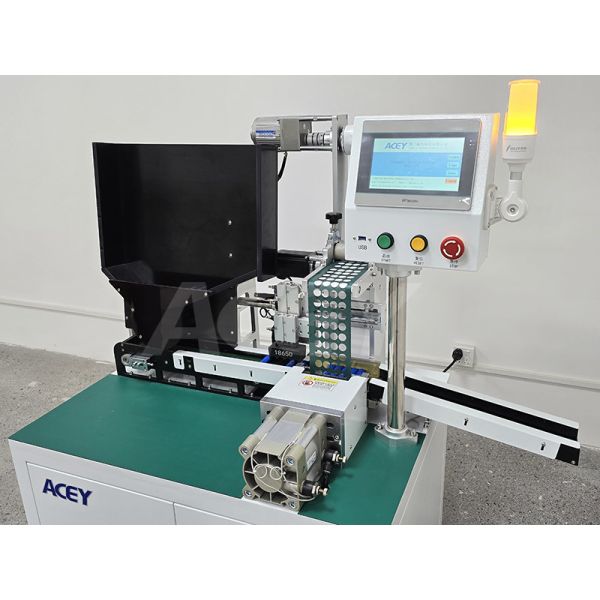

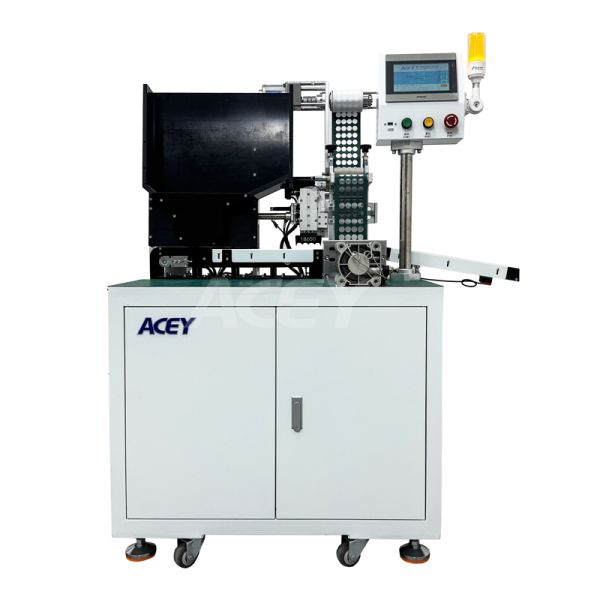

Product Gallery
Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery Automatic Insulation Paper Sticking Machine For Cylindrical Lithium Battery
