Specifications
Brand Name :
ACEY
Model Number :
ACEY-SP1200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 7500~8300Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Equipment Efficiency :
50 groups/hour (10PCS battery cells)
Extrusion stroke :
1200mm
Adaptable size range :
L: 50~250mm; W: 20~ 100mm; H: 100~300 mm
Stacking maximum pressure :
500KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
Lithium Battery Pack Compression and Stacking Machine for Energy Storage Battery Assembly
Product Overview

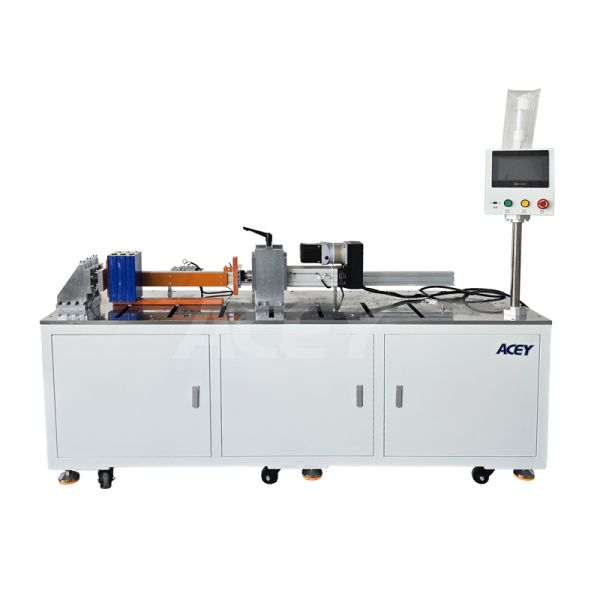

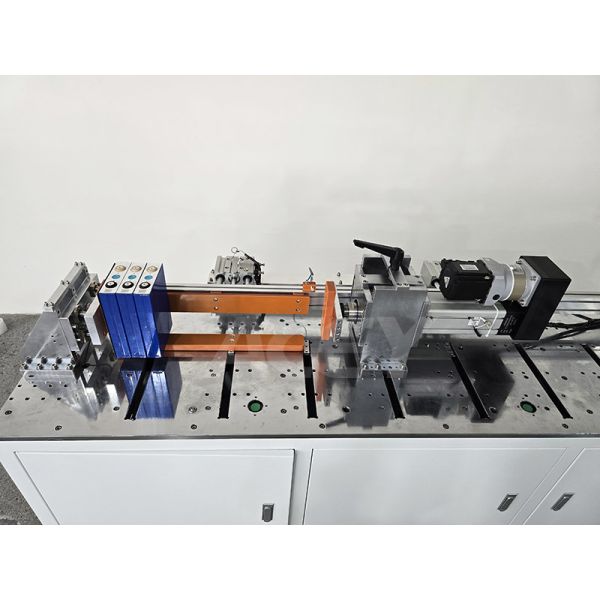

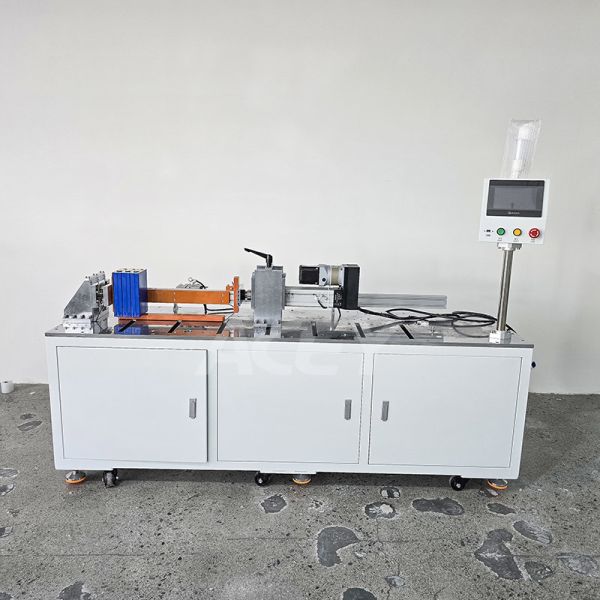

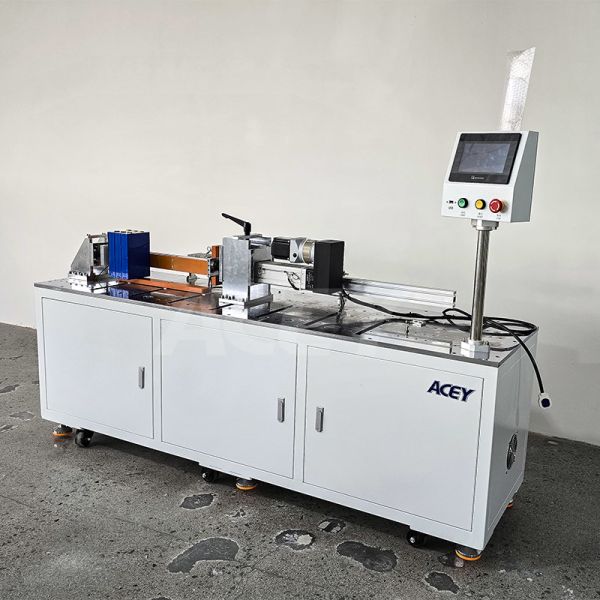

The ACEY-SP1200 is a stacking and extruding machine designed for prismatic lithium battery cells. It is suitable for stacking, pressing into shape, and bundling prismatic batteries. The system employs a servo motor, screw module, and planetary reducer to perform the stacking and extrusion process, with a pressure controller governing the operation.

The extrusion stacking thrust reaches over 500 kg, while the machine remains easy to operate. It allows real-time control of both stacking stroke and stacking pressure. Featuring triple protection through software limits, hardware limits, and pressure limits, the device prevents over-extrusion of batteries and offers high precision controllability in the extrusion process.

Key Features
  • 7-inch touch screen with PLC for control, easy to operate
  • Adapts to various battery sizes with editable parameters for simple type changes
  • Built-in high-precision pressure sensor with accuracy control within 0.1KG
  • Screw module + servo motor + reducer control system for large extrusion output force and high positioning accuracy
Technical Specifications
Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1200mm
Adaptable size range L: 50~250mm; W: 20~100mm; H: 100~300mm
Stacking maximum pressure 500KG
Pressure control error 0.1KG
Control system PLC + touch screen
Input power consumption 1KW
Input power supply AC220V/50HZ
Compressed air source None
Touch screen 7-inch touch screen
Equipment appearance reference size L*W*H=2370*500*1400mm
Weight 400KG

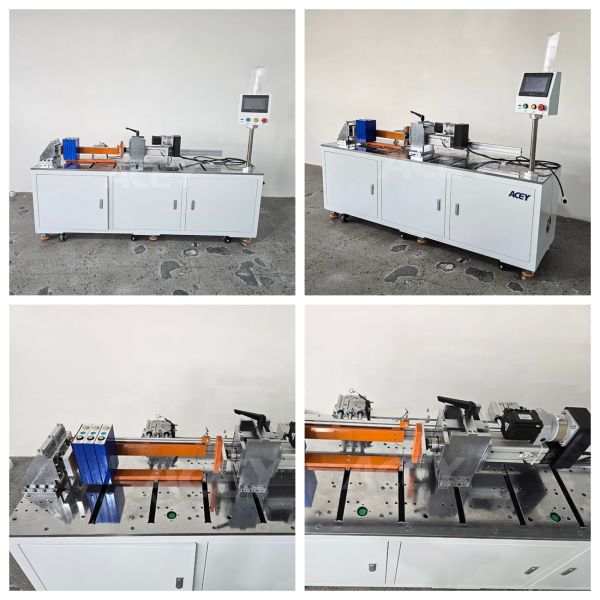

Product Display
Lithium Battery Pack Compression and Stacking Machine for Energy Storage Battery Assembly
