Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Specifications
Model Number :
ACEY-HSM5035
Warranty :
1 Year Warranty With Lifetime Support
MOQ :
1 Set
Delivery Time :
7~35 Days
After-sales service provided :
Online support
Dimension(l*w*h) :
1600×750×1620 mm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union
Voltage :
380V
Type :
Wrapping Machine
Brand Name :
ACEY
After-sales Service :
24/7 Technical Support
Price :
USD 2900~3050/Set
Automatic grade :
Automatic
Supply Ability :
200 Sets/Month
Weight :
200kg
Certification :
CE
Place of Origin :
China
Description
Product Overview

The ACEY-HSM5035 Automatic Shrink Tunnel Machine is designed for continuous shrink packaging of battery packs and various industrial products. It features a high-power heating system, uniform hot air circulation, and adjustable conveyor speed and temperature control, ensuring stable shrink results for PE, PP, POF, and PVC shrink films.

Key Features
  • Safe Operation: Equipped with phase loss, phase sequence, and short-circuit protection for enhanced operational safety.
  • Fast & Uniform Heating: Stainless steel heating elements and high-power circulation fans ensure rapid heating and even heat distribution.
  • Adjustable Performance: Flexible conveyor speed and temperature settings adapt to different product sizes and shrink packaging requirements.
  • Energy-Efficient Insulation: Double-layer insulation and heat-resistant curtain strips minimize heat loss and reduce energy consumption.
  • Stable Conveyor System: High-temperature silicone-coated roller shafts and soft-start speed control ensure smooth, stable product transportation.
  • Precise Temperature Control: PID temperature regulation with automatic deviation correction maintains consistent chamber temperatures.
  • Reliable Control System: Solid-state relays provide quiet, dependable heating control, while the user-friendly control panel simplifies operation.
Technical Specifications
Parameter Specification
Model ACEY-HSM5035
Power Supply 380V, 50–60Hz
Power 12 kW
Shrink Tunnel Size (L×W×H) 1200×500×350 mm
Conveyor Speed 0–15 m/min
Conveyor Material Chain Roller
Maximum Conveyor Load 25 kg
Machine Dimensions (L×W×H) 1600×750×1620 mm
Machine Weight 200 kg
Applicable Shrink Films PE, PP, POF, PVC

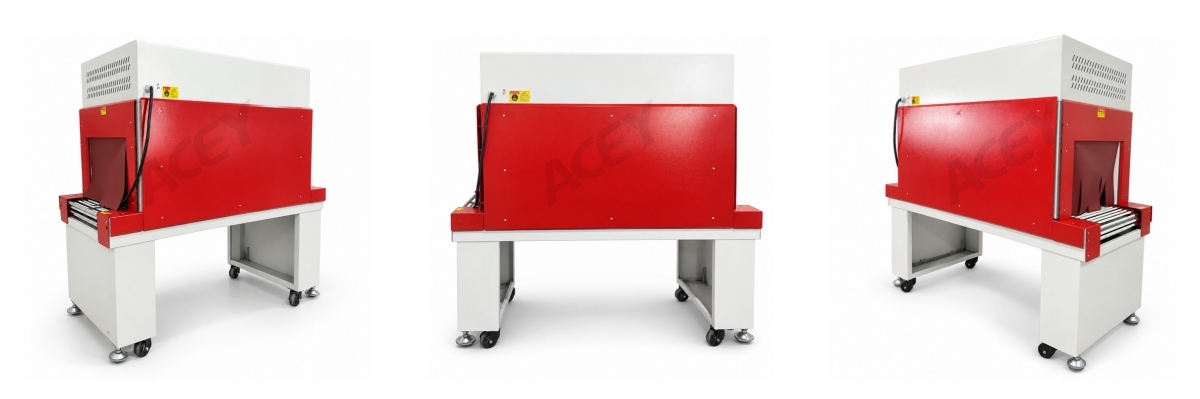

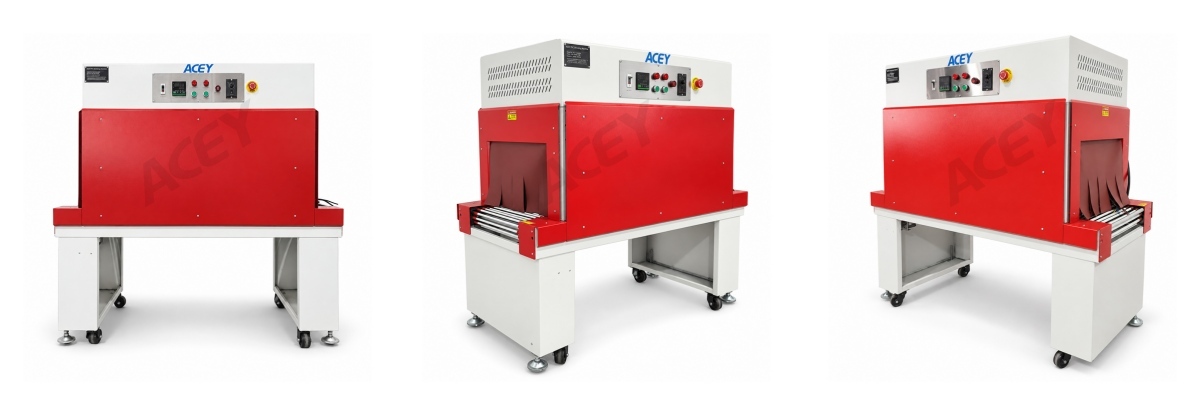

Product Display
Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC Automatic Heat Shrink Tunnel Packaging Machine For PE PP POF PVC
Frequently Asked Questions
1. What shrink films can the ACEY-HSM5035 Heat Shrink Tunnel Machine use?

The ACEY-HSM5035 supports PE, PP, POF, and PVC shrink films for packaging lithium battery packs and other industrial products.

2. How do you adjust the shrink wrapping effect for different battery pack sizes?

The machine features adjustable tunnel temperature and conveyor speed from 0 to 15 m/min, allowing operators to optimize shrink results according to the film type and battery pack dimensions.

3. What is the maximum load capacity of the ACEY-HSM5035 Shrink Tunnel Machine?

The machine supports a maximum conveyor load of 25 kg, with a 1200 × 500 × 350 mm shrink tunnel. Confirm the battery pack dimensions and weight before ordering to ensure compatibility.
