1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SP1500
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 7500~8300Set
Equipment Efficiency :
50 groups/hour (10PCS battery cells)
Extrusion stroke :
1500mm
Adaptable size range :
L: 50~250mm; W: 20~ 100mm; H: 100~300 mm
Stacking maximum pressure :
500KG
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control

Product Description

ACEY-SP1500 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 500KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.

Product Features

1.7-inch touch screen with PLC for control, easy to operate.

2.Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.

3.Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.

4.Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.

Technical Parameter

Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1500mm
Adaptable size range L: 50~250mm; W: 20~ 100mm; H: 100~300 mm
Stacking maximum pressure 500KG
Pressure control error 0. 1KG
Control system PLC+touch screen
Input power consumption 1KW
Input power supply AC220V/50HZ
Compressed air source None
Touch screen 7inch touch screen
Equipment appearance reference size L*W*H=2370*500*1400mm
Weight 400KG

Product Display

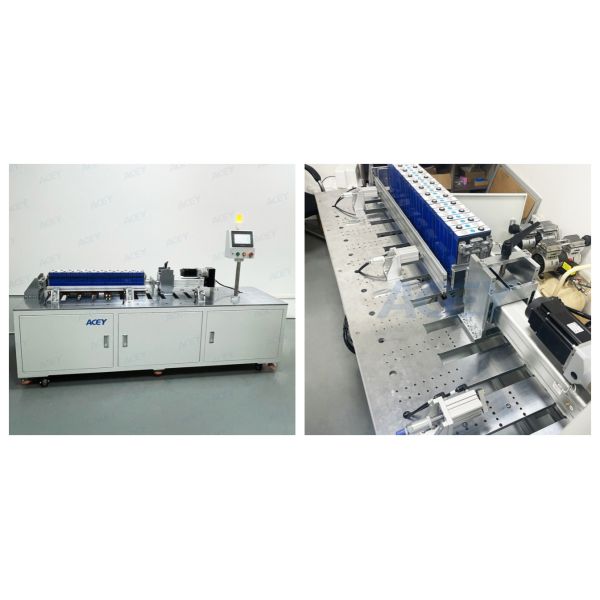

1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control

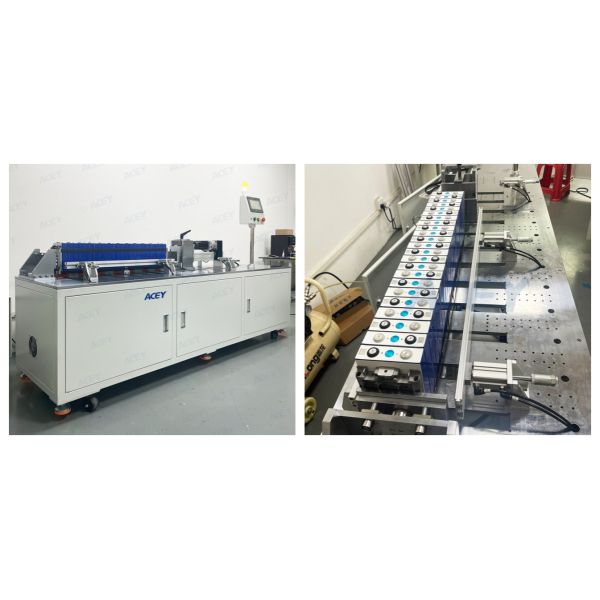

1500mm 500KG Prismatic Battery Stacking Extruder With PLC Touch Control
