Specifications
Brand Name :
ACEY
Model Number :
ACEY-PS8
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 13200~18300/Set
Compatible Dimensions :
Length: 90 - 300mm; Width: 12 - 85mm; Height: 90 - 300mm
Number of Channels :
7 OK channels + 1 NG channel
Working power :
220V, 50Hz/60Hz
Sorting speed :
10~12ppm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Automatic Prismatic Battery Sorting Machine 11 Channels With Scanner For Lithium Ion Battery

Product Description

ACEY-PS8 Prismatic battery 8 channels automatic sorting machine is suitable for sorting and assembling test of universal prismatic batteries. The machine adopts the belt line to drive the feeding, and the type change is simple. It can analyze and save the test data of the prismatic battery, eliminate the defective battery exclusively, and collect the battery with the sorting and matching by the receiving tank. It is easy for the operator to manage.

Product Features

*Automatically sort the voltage and internal resistance of prismatic battery.
*High precision and fast speed,High degree of automation, high productivity
*Touch screen operation, easy and fast responding.
*The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
*Humanized processing of subtle links greatly guarantees the safety of operators and products
*With computer

Main Technical Parameter

Compatible Dimensions Length: 90 - 300mm; Width: 12 - 85mm; Height: 90 - 300mm
Number of Channels 7 OK channels + 1 NG channel
Control System PLC control system + linear module
Loading and Testing Method Integrated manual loading and automatic testing (optional internal resistance tester)
Scanning Function Integrated QR code, barcode, and more scanning function
Sorting Process Characteristic Fully automated sorting process reduces manual intervention
System Interface (Optional) Optional MES system interface for real-time recording of battery QR code information and test data, generating SPC analysis reports
Max Sorting Speed 1,000 pcs per hour, more than three times the efficiency of manual sorting

Equipment Environmental Requirements

Ambient Temperature 5°C - 35°C
Humidity 20% - 90%
Air Pressure 0.5 - 0.6 MPa
Power Supply Voltage 220V, 50Hz / 60Hz
Surface Load Ratio ≤ 200kg/m²
Grounding Type Direct Grounding
Site Condition Free from pollution and strong electromagnetic interference
Installation Environment Flat, free from vibration and shock
Equipment Noise ≤ 80dB

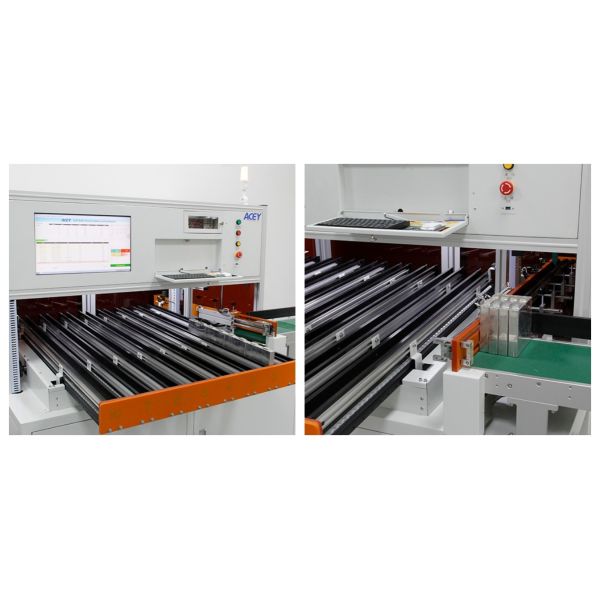

Product Display

Automatic Prismatic Lithium Cell Sorting Machine 8CH Battery Sorter And Tester

Automatic Prismatic Lithium Cell Sorting Machine 8CH Battery Sorter And Tester
