5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS5SP
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~7890/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
5 Channels
Sorting speed :
56ppm
Compatible Battery :
14650/18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<200kg
Dimensions :
L1010mm*W700mm*H1350mm
Power Supply :
220V, 50Hz/60Hz
Description
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
The ACEY-AS5SP battery sorting machine is a professional-grade sorting solution designed for high-consistency battery pack assembly. Powered by an advanced Industrial PC and Motion Controller, it offers higher precision, faster data processing, and better stability than traditional PLC-based machines.
Key Features
Elite Efficiency: Processes up to 3,200 cells per hour, maximizing your production output
PC-Driven Intelligence: Features a computer-based control system for advanced data analysis, easy reporting, and seamless MES system integration
Universal Compatibility: A flexible platform for 18650, 21700, 26650, and 32700 cylindrical cells
Rapid Changeover: Switch between different battery models in just 15 minutes with a simple, modular mechanical design
Precision Testing: Integrated with high-accuracy internal resistance and voltage testers to ensure every cell in your pack is perfectly matched
Technical Specifications
ModelACEY-AS5SP
Compatible Cells14650, 18650, 21700, 26650, 32700 (Optional)
Sorting Channels4 OK Grades + 1 NG (Reject)
Throughput~3,200 pcs/hour
Control SystemIndustrial PC + Motion Controller + Servo Motors
Dimensions1010mm (L) * 700mm (W) * 1350mm (H)
Weight198 KG
Power Supply220V, 50Hz/60Hz
Air Pressure0.5 - 0.6 Mpa

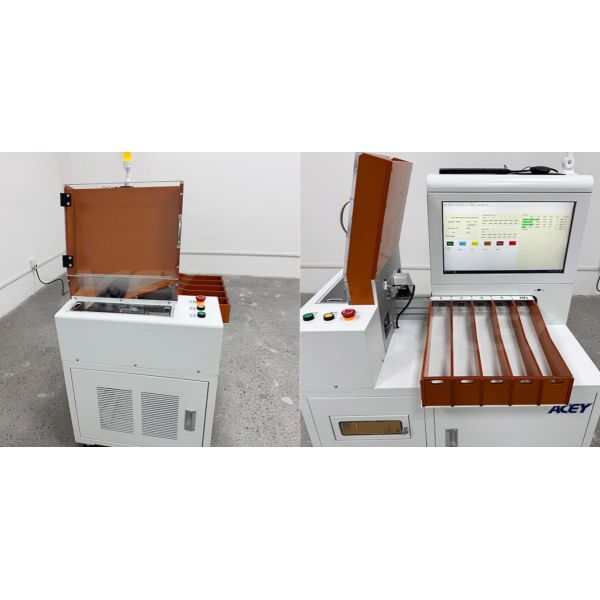

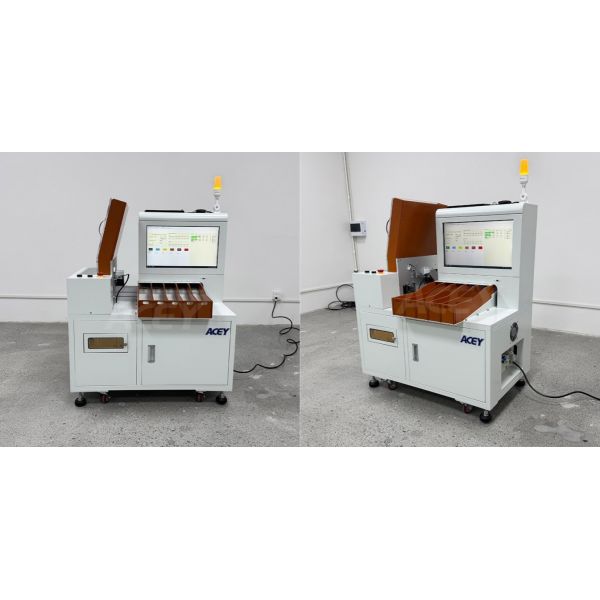

Product Images
5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700 5-Channel Automatic Cylindrical Battery Sorting Machine For 18650 21700 26650 32700
