Specifications
After-sales Service :
24/7 Technical Support
Working power :
220V, 50Hz/60Hz
Number of Channels :
9 OK channels + 1 NG channel
Warranty :
1 Year Warranty With Lifetime Support
Payment Terms :
T/T,PayPal,L/C,Western Union
Supply Ability :
200 Sets/Month
Packaging Details :
Plywood Case
Compatible Dimensions :
Length: 100 - 300mm; Width: 20 - 85mm; Height: 80 - 300mm
Brand Name :
ACEY
Model Number :
ACEY-PS10
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 14300~19400/Set
Delivery Time :
7~35 Days
Sorting speed :
10~12ppm
Description
Prismatic Battery Sorting Machine Lithium Ion Battery OCV IR Tester 10 Channels
Product Overview

ACEY-PS10 Prismatic battery 10 channels automatic sorting machine is suitable for sorting and assembling test of universal prismatic batteries. The machine adopts the belt line to drive the feeding, and the type change is simple. It can analyze and save the test data of the prismatic battery, eliminate the defective battery exclusively, and collect the battery with the sorting and matching by the receiving tank. It is easy for the operator to manage.

Key Features
  • Industrial control integration with complete cell parameter traceability for convenient data management
  • Comprehensive management functions for cell voltage, internal resistance, and group information
  • Compatible with various prismatic cell types with easy changeover
  • Built-in high precision Japanese Hioki BT3562 internal resistance tester for accurate and fast testing
  • Integrated barcode scanner for efficient data tracking
Technical Specifications
Equipment Efficiency 10~12 PPM
Equipment Utilization ≥95%
Number of Sorting Channels 10 (9 OK channels, 1 NG channel)
Applicable Cell Dimensions Length: 100-300mm
Width: 20-85mm
Height: 80-300mm
Control System PC Industrial Computer (Embedded system)
Input Power Consumption 1KW
Equipment Power 2KW
Input Voltage AC220V/50HZ
Compressed Air Source ≥0.6Mpa
Display 21.5-inch display
Equipment Dimensions L*W*H=1920*1600*1600mm
Weight 350KG

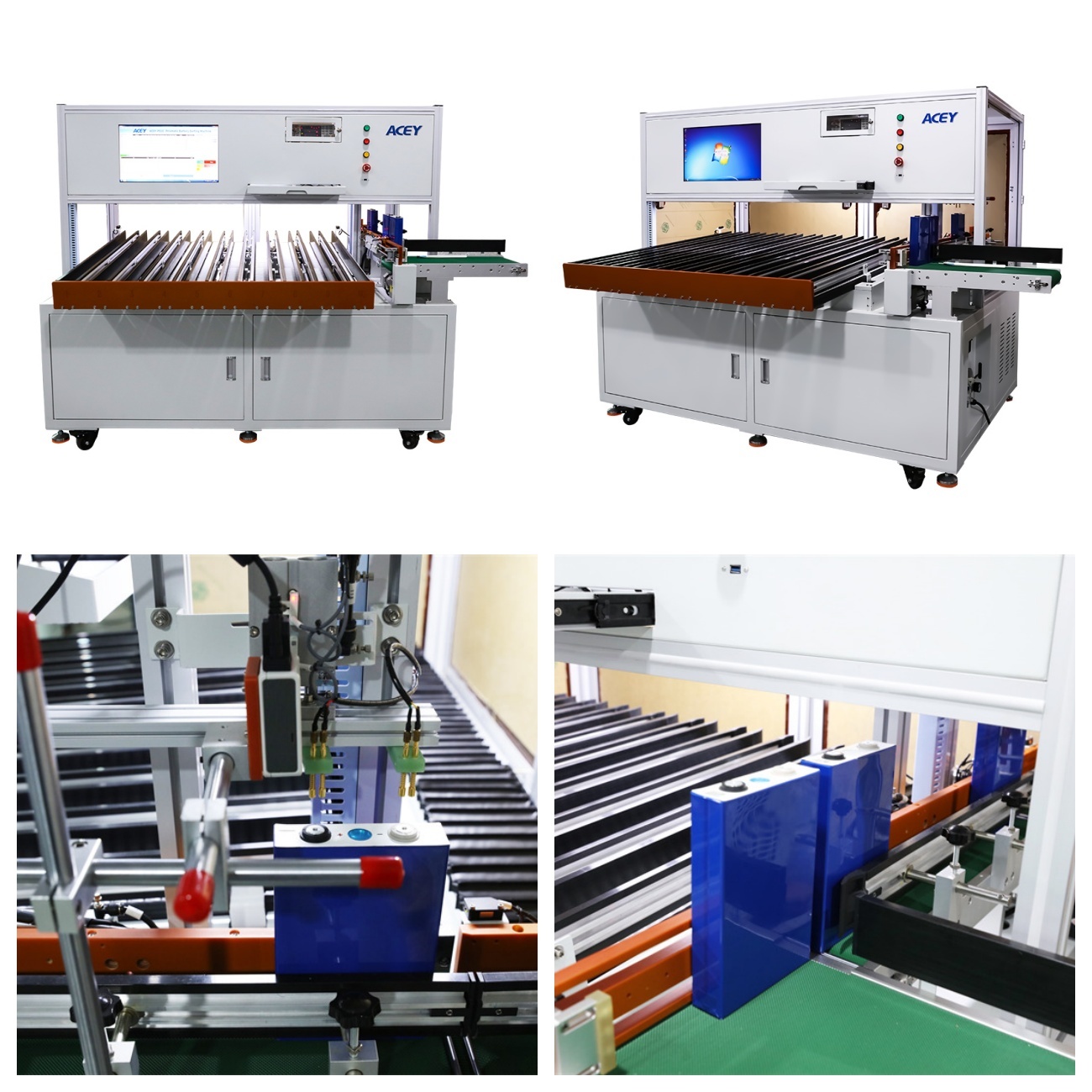

Product Display
