18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS6SP
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~5860/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
6 Channels
Sorting speed :
80ppm
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<200kg
Dimensions :
L1430mm*W660mm*H1350mm
Description

6 Channels Automatic Lithium Cell Sorting Machine For 18650 21700 26650 32700

Product Description

ACEY-AS6SP automatically sorts battery cells according to preset parameters, delivering fast and precise cell selection. Equipped with a high-accuracy barcode scanner, the system reliably reads and records data for each individual cell, ensuring correct data matching and full traceability.

The automated sorting process effectively eliminates errors caused by manual operation and incorrect cell selection, significantly improving sorting consistency, product quality, and overall production efficiency. The machine is suitable for automatic sorting of large- and medium-sized cylindrical battery cells.

Equipment Features

  • Automatically sorts cylindrical battery cells (such as 18650 21700 26650 32650 32700) based on voltage and internal resistance

  • High precision and high-speed operation with a high level of automation, ensuring excellent productivity

  • User-friendly touch screen interface for easy operation and fast system response

  • Comprehensive and diversified process detection signals, ensuring stable and reliable system performance

  • Human-centered safety design in critical operation steps to ensure maximum protection for both operators and battery cells

  • Supports different cell sizes by replacing sorting molds (molds are optional and purchased separately)

  • Equipped with an industrial computer for system control and data management

Equipment Specification

Item No.ACEY-AS6SP
Voltage SupplySingle-phase ~220V±10%/50Hz±10%, power <800W
Battery Types18650 21700 26650 32650 32700
Receiving channel5 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parametersAC internal resistance, DC voltage
Internal resistance testTest range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage testTest range:8V
Accuracy: ±0.015%rdg,
Display resolution:0.01mV
Sorting speed80ppm
AI.Set functionIntelligent one-button setting, specially designed for new functions of battery pack.
SizeL1430mm*W660mm*H1350mm
Weight<200Kg

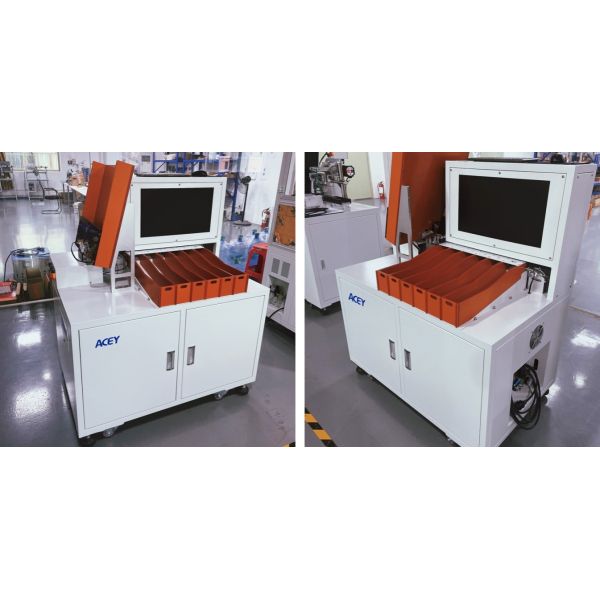

Product Display

18650 21700 26650 32700 Lithium Ion Battery Assembly Machine 80ppm Sorter
