Specifications
Brand Name :
ACEY
Model Number :
ACEY-PS8
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~13335/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
8 Channels
Sorting speed :
16 ppm
Compatible Battery :
Prismatic Cells
Weight :
477Kg
Dimensions :
L1955mm*W1624mm*H1596mm
Power Supply :
220V-50Hz/60Hz
Description

High Precision 8 Channels Prismatic Battery Sorting Machine For LiFePO4/NCM Lithium Battery



Product Description

ACEY-PS8 lithium battery sorting machine is a must-have for professional battery pack manufacturers. It is specifically designed to test and sort prismatic battery cells (such as LiFePO4 and NCM) based on the voltage (OCV) and internal resistance (IR).


By ensuring high consistency of cells before assembly, this machine significantly improves the cycle life and safety of your final battery packs. It supports seamless integration into high-volume production lines.


Key Features

  • High Efficiency: 8-channel design allows for rapid sorting, significantly increasing throughput compared to manual sorting.
  • Precision Testing: Equipped with a high-precision internal resistance tester (e.g., Hioki or HK) to ensure data accuracy up to ±0.01%.
  • Smart Automation: Manual feeding, fully automatic testing and sorting into designated channels based on user-defined parameters.
  • Data Traceability: Automatically records and saves all test data, supporting export via USB or network for quality control and analysis.
  • User-Friendly Interface: Industrial PC control system for easy parameter setting and real-time monitoring.


Applications

  • Energy Storage System (ESS) battery pack assembly.
  • Electric Vehicle (EV) battery module production.
  • Electric Forklift and E-bus battery manufacturing.
  • Battery cell warehousing and secondary grading.


Product Parameters

Item Specification
Applicable Battery Type Prismatic (square) battery
Compatible Size Range Length: 100–300 mm; Width: 20–85 mm; Height: 100–300 mm
Sorting Channels 7 grades + NG (No Good)
Control System PLC control
Loading & Detection Manual loading + automatic testing (internal resistance tester brand optional)
Automation Level Fully automated sorting process with minimal manual intervention
MES Interface Available; supports data upload and SPC analysis report generation
Sorting Speed Up to 1000 pcs/hour (over 3× more efficient than manual sorting)
Ambient Temperature -30°C to 50°C
Humidity ≤ 90%
Air Pressure 0.5–0.6 MPa
Power Supply 220V, 50Hz/60Hz
Floor Load Requirement ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements No pollution and no strong electromagnetic interference
Installation Environment Flat surface, no vibration or impact
Noise Level ≤ 80 dB
Machine Dimensions (L×W×H) Approx. 1955 × 1624 × 1596 mm
Machine Weight Approx. 477 kg
Equipment Color Computer white (customizable)

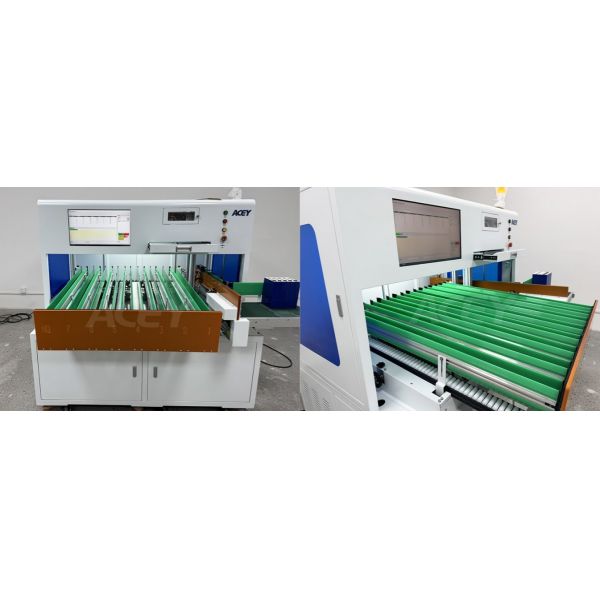

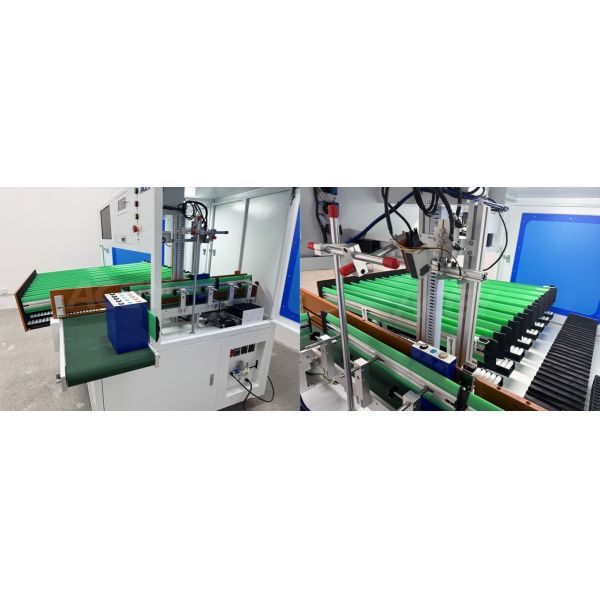

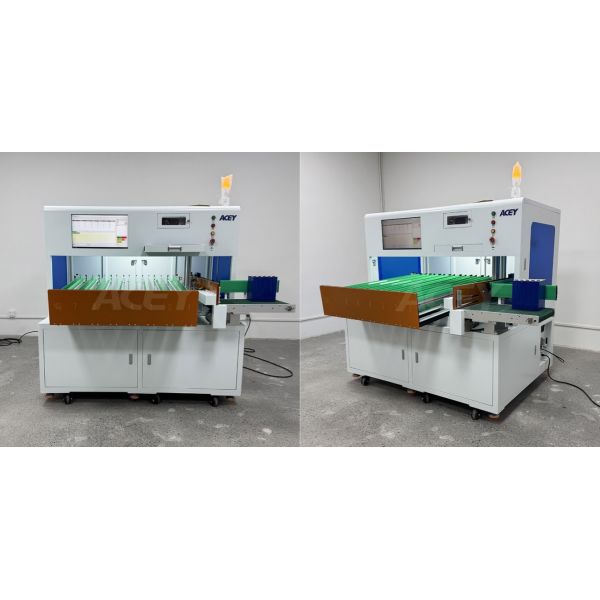

Product Display
