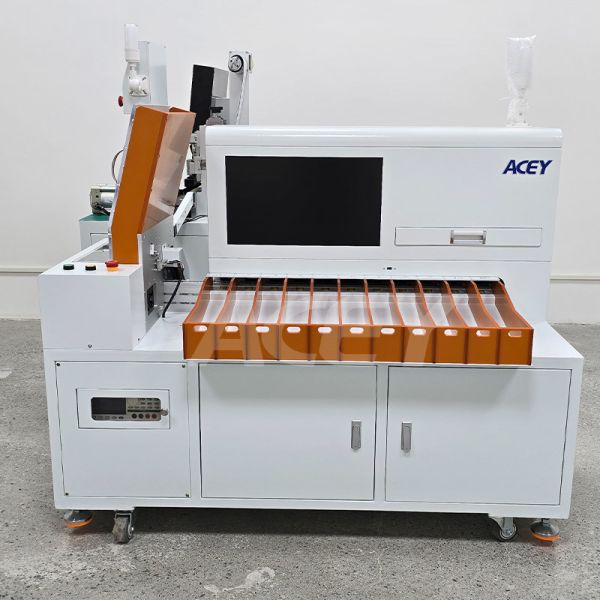

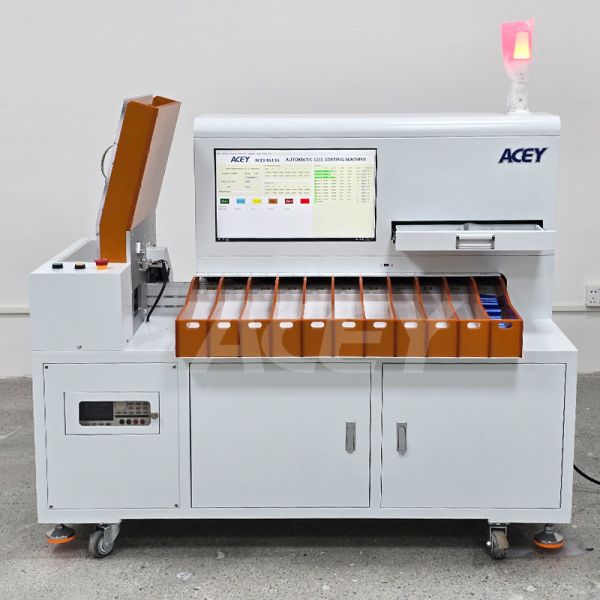

Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Automatic Cylindrical Battery OCV IR Sorting Machine For 18650 21700 26650 32700
Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS11S
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~6570/Set (negotiable)
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
11 Channels
Sorting speed :
80ppm
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<200kg
Dimensions :
L1430mm*W660mm*H1350mm
Description

Automatic Cylindrical Battery OCV IR Sorting Machine for 18650 21700 26650 32700


Product Description

ACEY-AS11S battery sorting machine is specifically designed for voltage and internal resistance testing and sorting of cylindrical lithium-ion batteries. It automatically sorts batteries according to specified criteria. The system is equipped with 10 sorting channels and 1 reject channel, with fully configurable sorting thresholds for each channel. The PC-controlled operation ensures high-speed, high-precision sorting, eliminating human errors and misclassification during the process. This machine significantly improves battery sorting quality and efficiency, making it an essential solution for battery manufacturers and battery pack assembly lines to ensure product consistency.


Equipment Features

  1. Automatically sorts voltage and internal resistance of cylindrical batteries, including 18650, 21700, 26650, 32650, and 32700.

  2. High-speed, high-precision operation with a high degree of automation for maximum productivity.

  3. PC-controlled operation for easy and responsive control.

  4. Comprehensive and diverse detection signals ensure mature and reliable performance.

  5. User-friendly design of delicate processes enhances safety for both operators and batteries.


Main Technical Parameter

Voltage Supply Single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650 21700 26650 32650 32700
Receiving channel 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy: ±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 80ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L1430mm*W660mm*H1350mm
Weight <200Kg

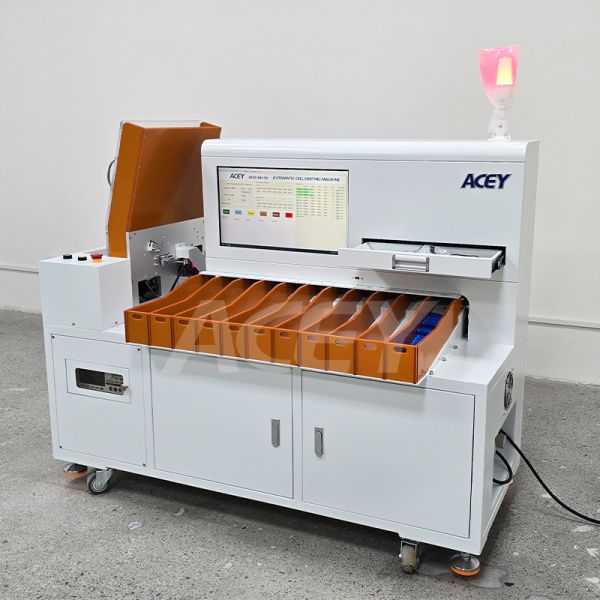

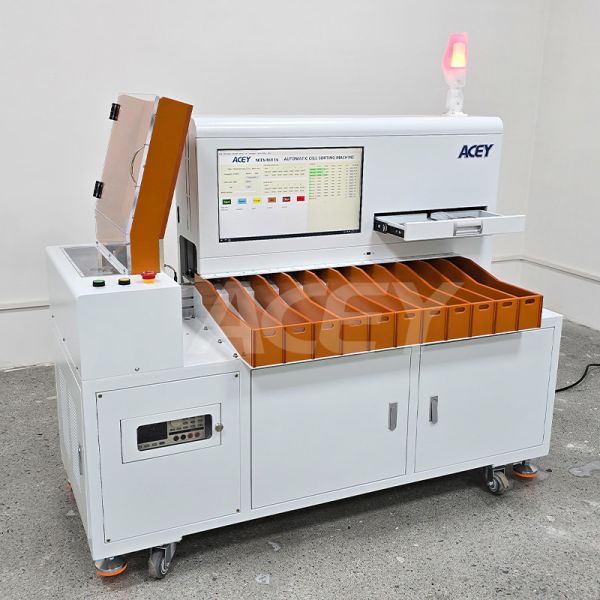

Product Display
