Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS5SP
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 5550~7800/Set
External dimension :
Length960* width540* height1350mm
Battery type :
18650（other sizes are universal to change the feeding mold）
Receiving channel :
4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Working power :
Single-phase ~220V±10%/50Hz±10%, power <800W
Test parameters :
AC internal resistance, DC voltage
Sorting speed :
80ppm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

5 Channels Battery Sorting Machine Lithium Cell Sorter with PC for 18650 Cylindrical Battery

Product Description

ACEY-AS5SP can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders batteries.

Product Features

*Automatically sort the voltage and internal resistance of cylindrical batteries like 18650, 26650, 32650 etc.
*High precision and fast speed,High degree of automation, high productivity
*Touch screen operation, easy and fast responding.
*The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
*Humanized processing of subtle links greatly guarantees the safety of operators and products
*Replace sorting mold to sort different size battery cell(Moulds need to be purchased extra)
*With computer

Main Technical Parameter

Voltage Supply Single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650(other sizes are universal to change the feeding mold)

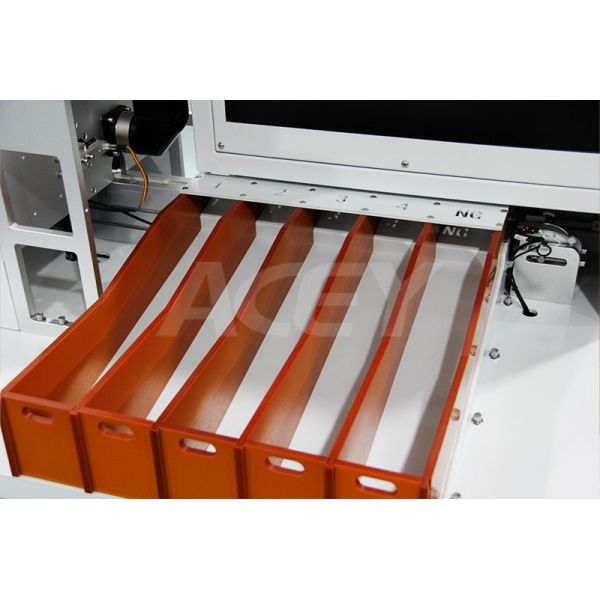

Receiving channel 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy :±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 80ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L960mm*W540mm*H1350mm
Weight <150Kg

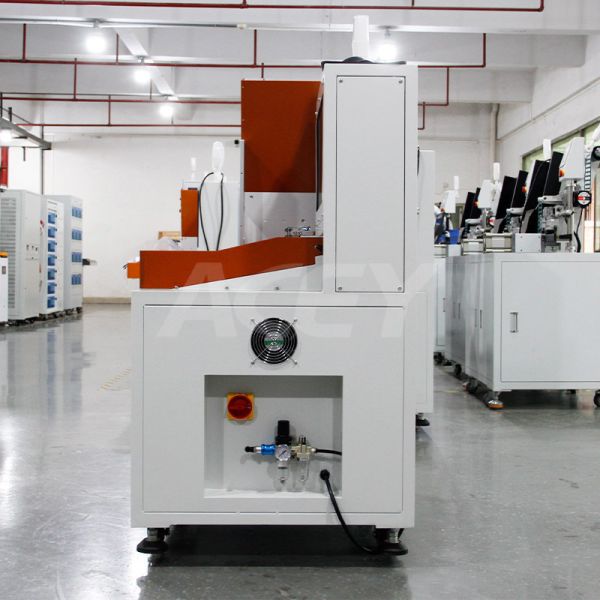

Product Display

5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment

5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment5CH Battery Sorting Machine Lithium Ion Cell Sorter Assembly Equipment
