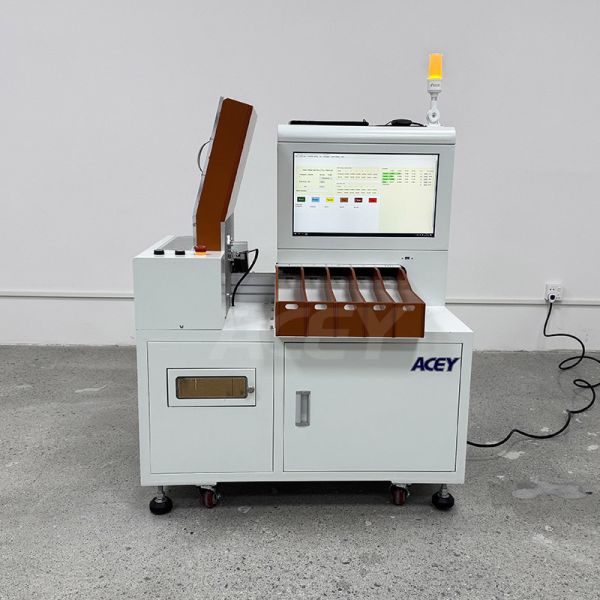

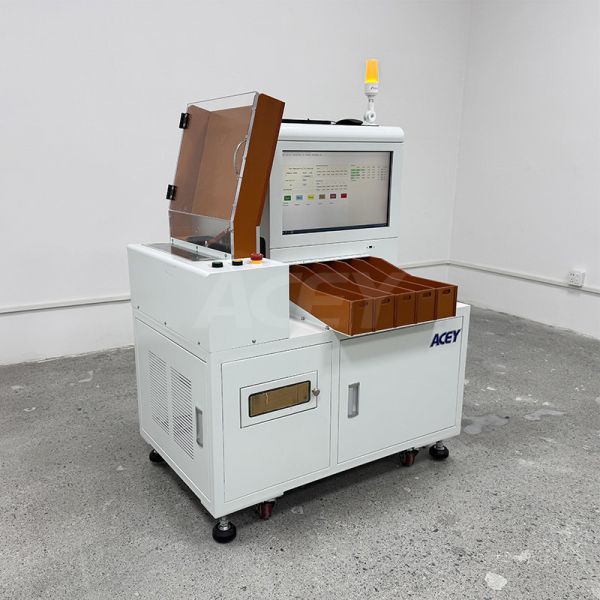

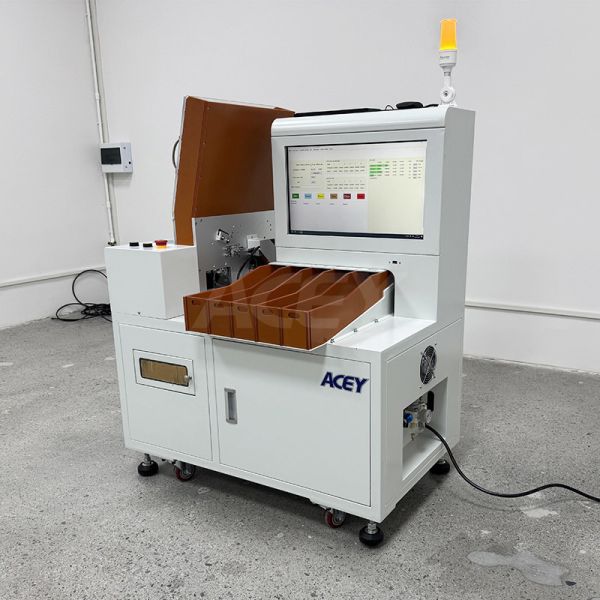

Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS5SP
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~7890/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
5 Channels
Sorting speed :
56ppm
Compatible Battery :
14650/18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<200kg
Dimensions :
L940mm*W500mm*H1290mm
Description
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
Product Overview

The ACEY-AS5SP lithium battery sorting machine is designed for grading and matching cylindrical cells, including models such as 14650, 18650, 21700, 26650, and 32700. Its control architecture integrates an industrial PC, motion controller, high-precision servo motors, and a highly accurate battery internal resistance tester, delivering excellent precision, strong adaptability, and fast operational speeds.

Compared to conventional PLC and touchscreen systems, this design provides significant advantages in production report generation, communication and interoperability with other equipment, model changeover, and production parameter tuning.

Equipment Parameters
  • Applicable battery models: Cylindrical cells 14650, 18650, 21700, 26650, 32700 (optional)
  • Fast changeover: Approximately 15 minutes required for model switching
  • Compact mechanical design with professional appearance and minimal floor space requirement
  • Durable construction: Manufactured with high-quality thick cold-rolled steel and aluminum alloy
  • Equipped with universal casters for easy movement and convenient handling
  • Labeling and sorting functions can be used independently or integrated into production lines
  • MES system integration supported for data collection and upload
  • Internal resistance tester: Compatible with multiple brands and models (optional)
Equipment Specifications
Automatic sorting machine dimensions L 1010 mm × W 700 mm × H 1350 mm
Machine weight 198 kg
Equipment color Computer white (customizable upon request)
Total power consumption ≤ 1.5 kW
Product Display
Automatic 5 Channel Lithium Battery Cell Sorting Machine with Voltage and IR Testing
