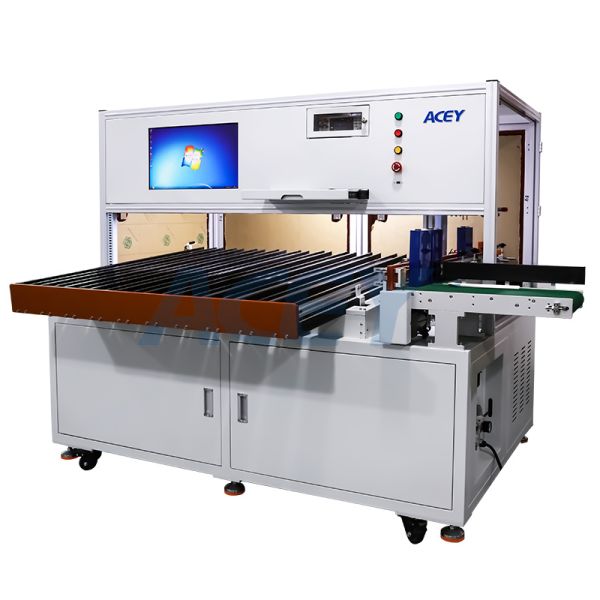

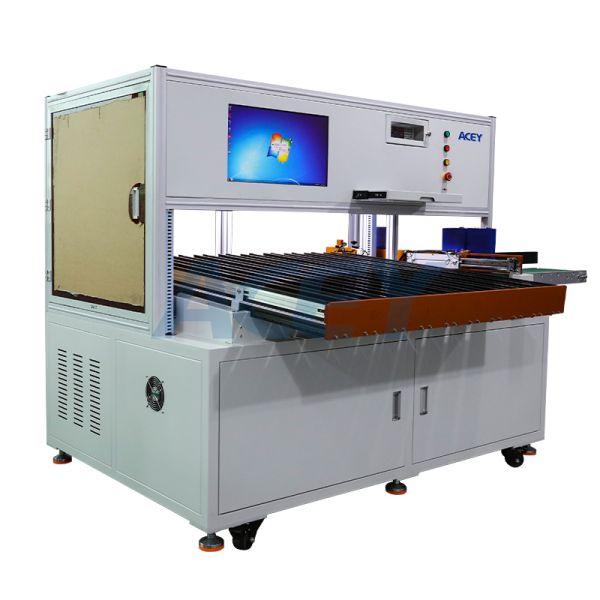

The ACEY-PS10 prismatic battery cell sorting machine features a stepping belt transmission structure and utilizes professional voltage and internal resistance testing for discrimination. It employs single-channel testing with a horizontally moving module for sorting, while integrated safety interlock sensors ensure reliable manipulator operation.

●With the integration of industrial control, all parameters of the battery can be traced, convenient data management, simple operation. Battery voltage, battery internal resistance, group information and other management functions.
●Suitable for various types of batteries, easy to change.
● Built-in high precision Japanese Brand HIOKI BT3562A internal resistance tester, high test accuracy, fast speed.

Frequently Asked Questions

1. What is a prismatic battery cell sorting machine used for?

It is used to test, grade, and sort prismatic lithium battery cells according to their voltage and internal resistance before battery module or pack assembly.

2. What parameters does the machine test?

The machine tests the cell voltage and internal resistance to help group batteries with similar electrical characteristics.

3. How many cells can the machine sort at the same time?

The machine has 10 sorting channels, including 9 channels for qualified cells and 1 channel for NG cells.

4. Can the machine automatically sort different battery cells?

Yes. After testing each cell, the system automatically identifies the corresponding sorting group and directs the cell to the designated receiving channel.

5. Can the sorting and testing data be saved?

Yes. The industrial PC can record cell voltage, internal resistance, grouping information, and other testing data. Barcode scanning can also be used for cell identification and traceability.
