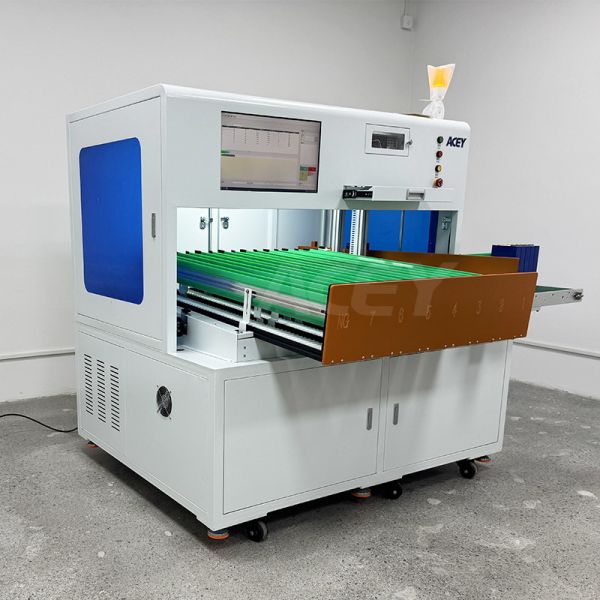

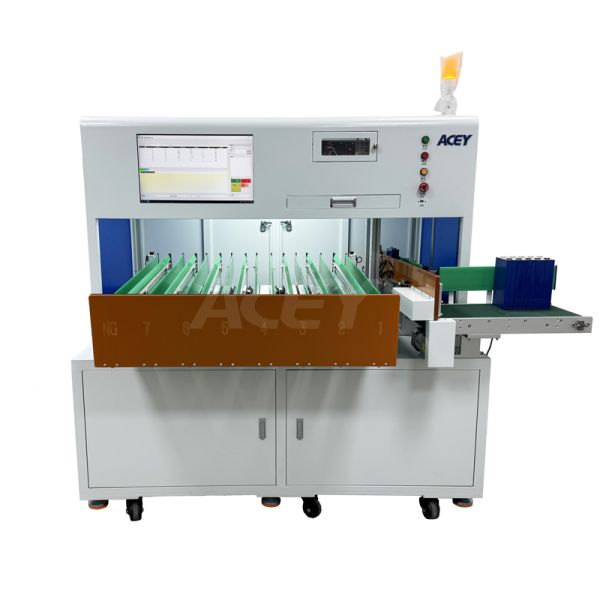

Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Specifications
Brand Name :
ACEY
Model Number :
ACEY-PS8
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~13335/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
8 Channels
Sorting speed :
16 ppm
Compatible Battery :
Prismatic Cells
Weight :
477Kg
Dimensions :
L1955mm*W1624mm*H1596mm
Power Supply :
220V-50Hz/60Hz
Description
Lithium Battery Voltage Internal Resistance Sorting Machine For Prismatic Cells
Product Overview

The ACEY-PS8 lithium battery sorting machine is an essential tool for professional battery pack manufacturers. It is purpose-built to test and sort prismatic cells—including LiFePO4 and NCM types—according to their open circuit voltage (OCV) and internal resistance (IR).

Key Features
  • High Efficiency: With an 8-channel configuration, the machine enables fast sorting and delivers much higher throughput than manual methods.
  • Precision Testing: A high-accuracy internal resistance tester (such as models from Hioki or HK) is integrated into the system, guaranteeing measurement precision to within ±0.01%.
  • Smart Automation: While feeding is performed manually, the unit automatically carries out testing and directs cells into designated channels according to user-configured criteria.
  • Data Traceability: All test results are automatically recorded and stored, with USB or network export options available to support quality control and data analysis.
  • User-Friendly Interface: An industrial PC-based control system makes parameter setup straightforward and allows real-time monitoring of operations.
Applications
  • Energy Storage System (ESS) battery pack assembly
  • Electric Vehicle (EV) battery module production
  • Electric Forklift and E-bus battery manufacturing
  • Battery cell warehousing and secondary grading
Technical Specifications
Item Specification
Applicable Battery Type Prismatic (square) battery
Compatible Size Range Length: 100-300 mm; Width: 20-85 mm; Height: 100-300 mm
Sorting Channels 7 grades + NG (No Good)
Control System PLC control
Loading & Detection Manual loading + automatic testing (internal resistance tester brand optional)
Automation Level Fully automated sorting process with minimal manual intervention
MES Interface Available; supports data upload and SPC analysis report generation
Sorting Speed Up to 1000 pcs/hour (over 3× more efficient than manual sorting)
Ambient Temperature -30°C to 50°C
Humidity ≤ 90%
Air Pressure 0.5-0.6 MPa
Power Supply 220V, 50Hz/60Hz
Floor Load Requirement ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements No pollution and no strong electromagnetic interference
Installation Environment Flat surface, no vibration or impact
Noise Level ≤ 80 dB
Machine Dimensions (L×W×H) Approx. 1955 × 1624 × 1596 mm
Machine Weight Approx. 477 kg
Equipment Color Computer white (customizable)
