0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
0.1mm-10mm²BVR Automatic Pneumatic Wire Cutting Stripping Machine
Specifications
Delivery Time :
7~35 Days
Warranty :
1 Year Warranty with Lifetime Support
Place of Origin :
China
Brand Name :
ACEY
Price :
USD 1080 ~ 1260/Set
Payment Terms :
T/T,PayPal,L/C,Western Union
Model Number :
ACEY-DG-220S
MOQ :
1 Set
Packaging Details :
Plywood Case
Strip Length :
Head: 0-250mm / Tail: 0-80mm
Stripping Speed :
Up To 3000 Pcs/Hour
After-sales Service :
24/7 Technical Support
Weight :
40kg
Wire Cross-Section :
BVR 0.1-10.0mm²
Certification :
CE
Power Supply :
AC110V/220V 50/60Hz
Dimensions :
600*500*400mm
Supply Ability :
200 Sets/Month
Description

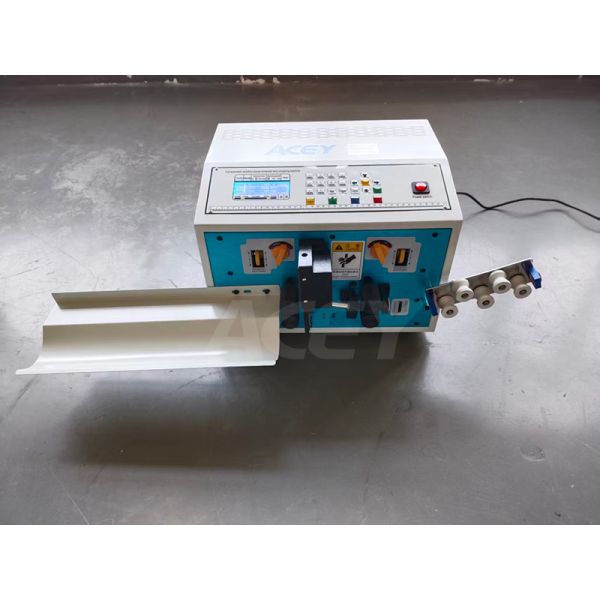

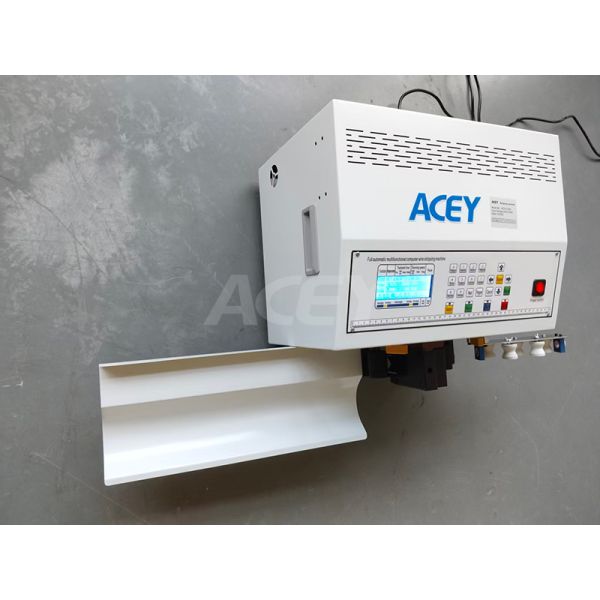

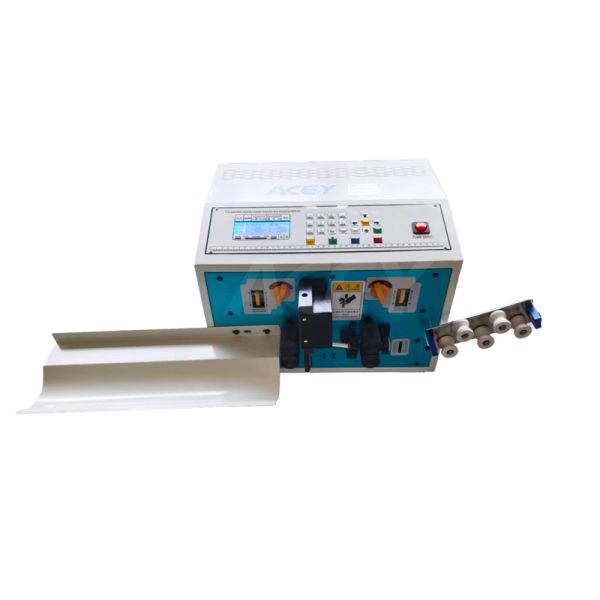

0.1mm-10mm² BVR Automatic Pneumatic Wire Cutting Stripping Machine
Product Overview

ACEY-DG-220S wire cutting stripping machine is a high-precision, fully automatic wire cutting and stripping machine designed for efficient processing of a wide range of cables. This equipment integrates cutting, full stripping, half stripping, multi-stage stripping, and wire twisting in one process, significantly reducing labor costs while improving production efficiency and consistency.

Product Features
  • 32-bit intelligent control system with stable and precise performance

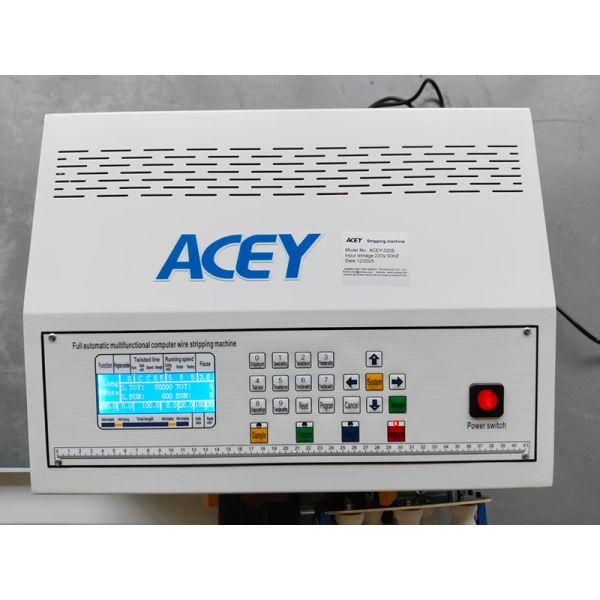

  • Bilingual LCD display (Chinese/English), user-friendly interface
  • Fully automatic processing: cutting, full stripping, half stripping, multi-stage stripping, twisting
  • Instant switching between different wire sizes and specifications
  • High efficiency with reduced labor and operational costs
  • Wide compatibility with various wire types and materials
Technical Specifications
Model ACEY-DG-210 ACEY-DG-220 ACEY-DG-220S ACEY-DG-230
Applicable Wire Size ≤4 mm² ≤6 mm² ≤10 mm² ≤16 mm²
Simultaneous Processing 1 wire 2 wires 1 wire 1 wire
Cutting Length 0.1-9999.9 mm 0.1-9999.9 mm 0.1-9999.9 mm 0.1-9999.9 mm
Front Stripping Length 0-35 mm 0-35 mm 0-250 mm 0-250 mm
Rear Stripping Length 0-60 mm 0-60 mm 0-80 mm 0-80 mm
Stripping Speed 2000-3500 pcs/h 4000-7000 pcs/h 2000-3000 pcs/h 2000-3000 pcs/h
Cutting Accuracy 0.002 * L 0.002 * L 0.002 * L 0.002 * L
Mid-section Stripping 15 sections 15 sections 15 sections 15 sections
