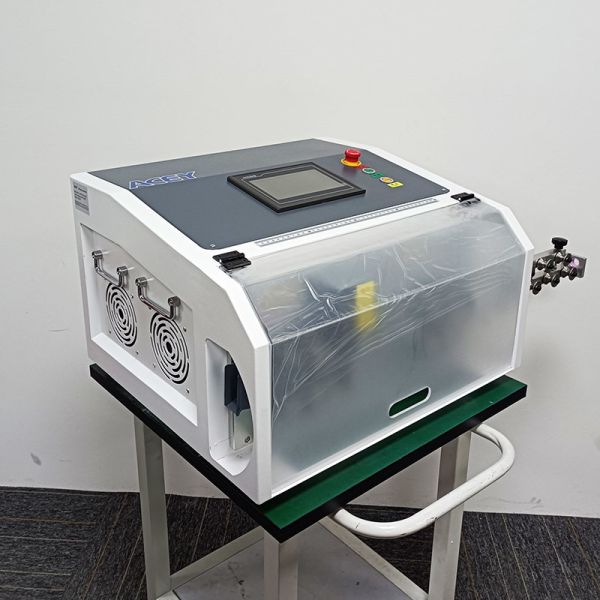

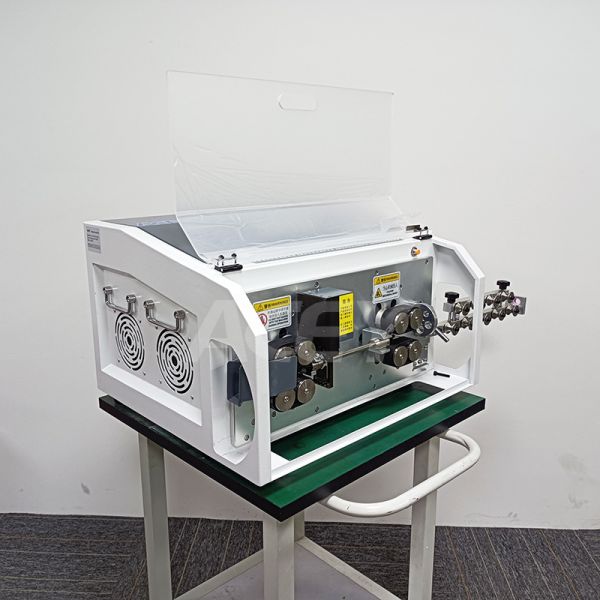

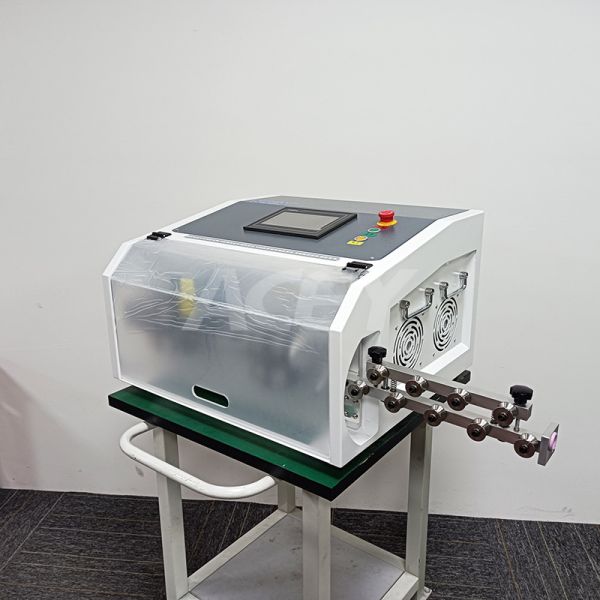

1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-DG-35XL
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~3810/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Wire Cross-Section :
BVR 1.5 - 35mm²
Strip Length :
Head: 0-250mm / Tail: 0-120mm
Max Conduit Diameter :
φ16mm
Stripping Speed :
Up To 1500 Pcs/Hour
Weight :
70kg
Dimensions :
560 * 520 * 450mm
After-sales Service :
24/7 Technical Support
Warranty :
1 Year Warranty with Lifetime Support
Description
1.5mm-35mm² BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine


Product Overview

ACEY-DG-35XL is a high-precision, fully automatic cable stripping machine engineered for versatility and demanding industrial applications. From medical sectors to power and communication cables, this machine delivers consistent, damage-free performance.


Product Features
  • Powerful 8-Wheel Drive System: Equipped with dual-side pressure rollers and a sophisticated belt feeding system, ensuring robust pulling power and high precision without damaging the cable surface.
  • Programmable Pressure Control: Clamping pressure for both inlet and outlet rollers is fully configurable via software, eliminating manual adjustments.
  • Automatic Roller Lifting: Intelligent auto-lifting function for outlet rollers during head stripping with programmable lifting height, significantly expanding strip length range.
  • User-Friendly Interface: Operates via 7-inch color touchscreen PLC with intuitive parameters requiring minimal operator training.
  • Advanced Programming & Memory: Supports three-layer stripping processes or multi-stage stripping for longer lengths. Stores up to 100 sets of customized parameters for different wire types.
  • Flexible Expansion: Compatible with optional accessories including wire splitting fixture, slitting fixture, and inkjet printer to adapt to specific production line needs.

Technical Specifications
Model ACEY-DG-35XL
Stripping Speed Up to 1500 pcs/hour
Wire Cross-Section BVR 1.5 - 35mm²
Applicable Wires Multi-strand copper wire, coaxial, jacketed cables, etc.
Drive Method 8-wheel drive, synchronous belt feeding
Cutting Length 0 - 100 meters
Strip Length (Head/Tail) Head: 0-250mm / Tail: 0-120mm
Max Conduit Diameter φ16mm
Min. Remaining Jacket 50mm
Cutting Tolerance ±(0.002mm * L) (L = Cutting length)
Blade Material Imported High-Speed Steel
Program Memory 100 sets
Control System 7-inch Color Touchscreen PLC
Power Supply 220V / 50Hz
Rated Power 650W
Dimensions 560 * 520 * 450mm
Weight Approx. 70kg

Product Display
1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine 1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine 1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine
