Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
Specifications
Model Number :
ACEY-AS11S
Battery type :
18650（other sizes available）
MOQ :
1 Set
Delivery Time :
7~35 Days
Test parameters :
AC internal resistance, DC voltage
Payment Terms :
T/T,PayPal,L/C,Western Union
Warranty :
1 Year Warranty With Lifetime Support
Price :
USD 6450~8600/Set
Sorting speed :
80ppm
Supply Ability :
200 Sets/Month
After-sales Service :
24/7 Technical Support
Certification :
CE
Receiving channel :
10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Place of Origin :
China
Working power :
Single-phase ~220V±10%/50Hz±10%, power <800W
Brand Name :
ACEY
External dimension :
Length1430* width660* height1350mm
Packaging Details :
Plywood Case
Description
Industrial 11-Channel Automatic Cylindrical Battery Cell Sorting Equipment
11-Channel Cylindrical Lithium Cell Voltage Sorting and Grading Machine
The ACEY-AS11S is an automatic battery sorting machine capable of classifying batteries according to preset criteria. It features rapid and accurate sorting, along with an integrated barcode scanner that correctly reads and logs data for every cell. By replacing manual operations, the system fundamentally avoids human errors such as misoperation and misclassification, while improving both the quality and efficiency of the sorting process. This machine is particularly suitable for the automated sorting of large and medium-sized cylindrical batteries.
Product Features
  • Automatically sorts cylindrical batteries (such as 18650 and 26650) based on voltage and internal resistance
  • Offers high precision, fast processing speeds, a high degree of automation, and strong productivity
  • Touchscreen interface enables easy operation with quick response times
  • Comprehensive and diverse process detection signals ensure proven maturity and reliable performance
  • Humanized design in every detail significantly enhances safety for both operators and products
  • Accommodates different battery cell sizes by changing the sorting mold (molds must be purchased separately)
  • A computer is included as part of the system
Main Technical Parameters
Parameter Specification
Voltage Supply Single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650 (other sizes available)
Receiving Channel 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value
Test Parameters AC internal resistance, DC voltage
Internal Resistance Test Test range: 80mΩ, Accuracy: ±0.5%rdg, Display resolution: 0.01mΩ
Voltage Test Test range: 8V, Accuracy: ±0.015%rdg, Display resolution: 0.01mV
Sorting Speed 80ppm
AI.Set Function Intelligent one-button setting, specially designed for new functions of battery pack
Size L1430mm*W660mm*H1350mm
Weight <200Kg

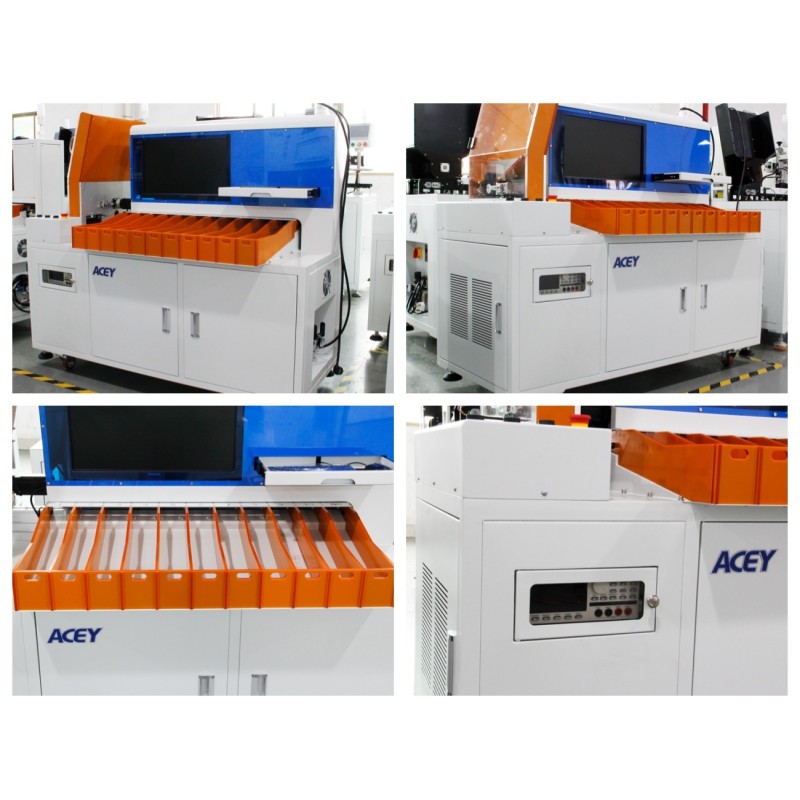

Product Display
