Rotor Automotive Chassis By-Wire Motor Automatic Line
Product Description

Applicable Products:

  • SBW motor rotors
  • SBAI motor rotors
  • Oil pump rotors
  • Water pump rotors
Equipment Overview

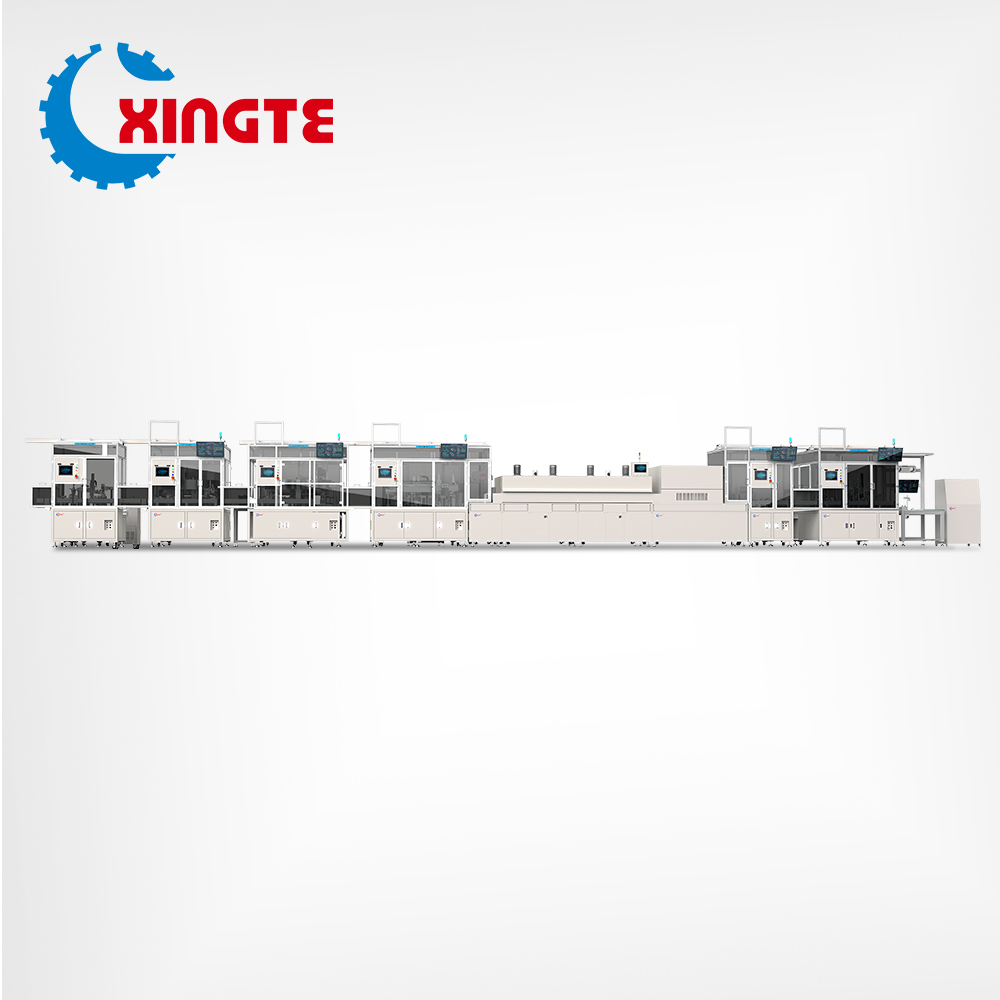

The machine adopts double-speed chain conveying for full-process rotor assembly.

Process Flow:

  1. Rotor core feeding
  2. Rotor shaft feeding
  3. Rotor shaft press-fit into core
  4. Gluing for magnet installation
  5. Magnet mounting
  6. Protective sleeve gluing
  7. Protective sleeve assembly
  8. Protective sleeve removal
  9. Adhesive curing
  10. Laser marking
  11. Magnetic ring press-fit
  12. Press-fit height & runout inspection
  13. Finished product packaging
Equipment Features
  1. Inspection after each process, one item one code. Processing data is bound with QR codes and uploaded to the MES system.
  2. Imported servo press. Pressure and displacement are monitored during pressing, with real-time curve display.
  3. Glue head and glue barrel with heating function; temperature can be automatically adjusted according to ambient conditions.
  4. Fixtures inside tunnel curing oven with barcodes to realize full data traceability.
  5. Contact displacement sensors are used to accurately measure assembly dimensions and upload data to MES.
  6. All feeding stations adopt vision guidance & inspection to guarantee qualified materials and assembly precision.
Applied Technologies
  • Servo Press-fitting Technology
  • Dispensing Technology
  • MES System Integration
  • Adhesive Curing Technology
  • Dimension Inspection Technology
  • Industrial Robot Technology
Technical Parameters
Yield Rate ≥99%
Operation Rate 85%
Control System Mitsubishi
Power Supply Single-phase AC200~230V, 50Hz/60Hz
Power 70 KW
Air Pressure 0.49-0.59 MPa
Machine Dimension (L)20000 * (W)2600 * (H)2100 mm
