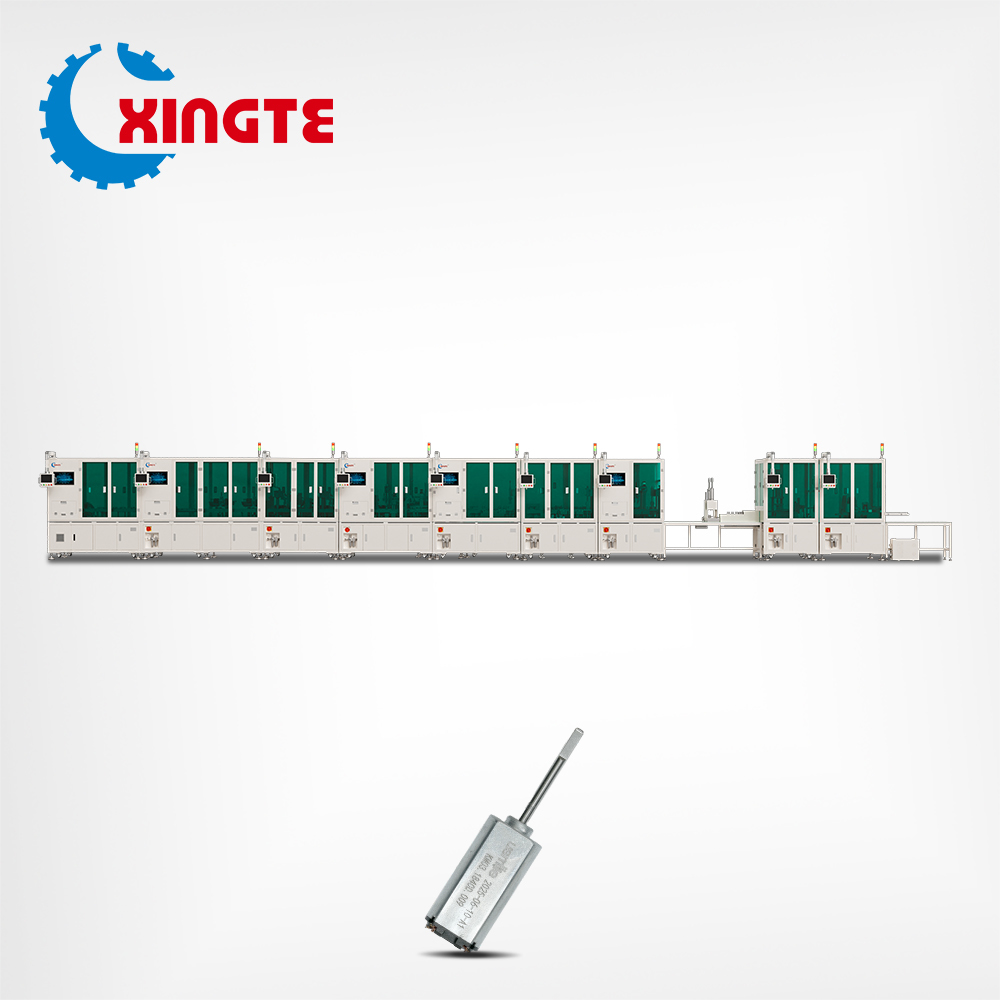

Automatic Production Line for Electric Toothbrush Motors
Complete automated production solution for high-volume manufacturing of electric toothbrush motors with precision engineering and quality control.
Rotor Process Flow
  1. Shaft Loading
  2. Copper Shim Assembly
  3. Armature Assembly
  4. N/S Magnet Installation
  5. Front Magnet Sleeve Assembly
  6. UV Glue Dispensing on Front Magnet Sleeve
  7. UV Glue Curing
  8. Glue Dispensing for Rear Magnet Sleeve
  9. Stop Shim Assembly
  10. Cleaning & Glue Baking
  11. Stop Shim Welding
  12. Rotor Cleaning & Inspection
Stator & Assembly Process Flow
  1. Housing Loading & Glue Dispensing
  2. Ball Bearing Assembly
  3. Stator Component Assembly
  4. Stator Insulation Test, Stator Baking & Bearing Position Glue Dispensing
  5. Rotor Component Assembly
  6. Spring Installation
  7. Bearing Mounting
  8. End Cover Component Assembly
  9. Sealing, Shaft Extension Inspection, Threading, Lead Soldering & Lead Trimming
  10. Comprehensive Performance Test
  11. UV Glue Dispensing & Baking for Tail Terminal, Shaft Angle Test
  12. Laser Marking, Visual Inspection & Packing
Applicable Products
Production of motors for cleaning appliances such as electric toothbrushes, electric shavers and water flossers.
Technical Modules
Rotor winding unit Rotor assembly unit Soldering unit Assembly unit Glue dispensing unit Testing unit Automatic flux dipping unit CCD PIN pitch inspection unit
Technical Parameters
UPH 750 PCS/H
Yield Rate 98%
