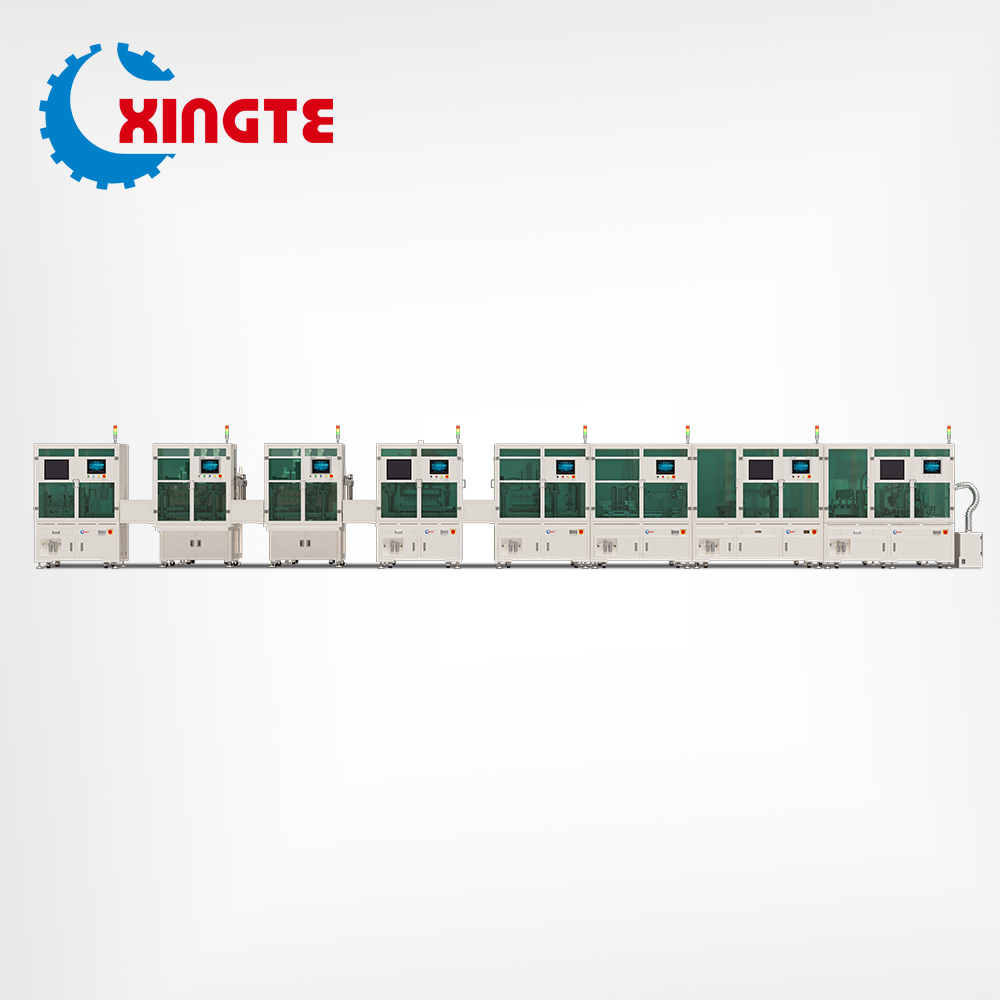

Servo Motor Stator Automatic Line
Product Description

Applicable Products: 40# / 60# / 80# series servo motors

Equipment Overview

This automatic stator production line serves as core complete equipment for servo motor manufacturing. It covers the full range of working procedures including core feeding, winding, soldering, automatic circular shaping, PCB assembly, PCB soldering, comprehensive testing, housing marking & assembly, cooling, height inspection, and finished product unloading. The system significantly improves precision, efficiency, and consistency of stator production.

Equipment Features
  • Fully automatic circular shaping with integrated rough shaping and precision shaping in one station, reducing material transfer and improving stability
  • Linear motor conveying system with high positioning accuracy and fast speed
  • Supports flexible production of multiple models within the same product series
  • Designed with a whole line tact time of 30 seconds, with production capacity expandable by adding winding units
Applied Technologies
  • Winding Technology
  • Tension Control Technology
  • Soldering Technology
  • Automatic Circular Shaping Technology
  • PCB Assembly Technology
  • Laser Welding Technology
  • High-frequency Heating Technology
Technical Parameters
Parameter Specification
Yield Rate 98%
Operation Rate 85%
UPH 60-120 PCS
Number of Spindles 6
Max. Spindle Speed 6000 rpm/min
Positioning Accuracy ±0.01 mm
Max. Rotation Size 70 mm
Wire Diameter 0.10-0.6 mm
Loading & Unloading Automatic
Control Mode Motion Control Card
Power Supply AC220V, 2-phase
Air Pressure 0.4-0.6 MPa
