380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
Specifications
Brand Name :
AIRERA
Model Number :
AGFD-15B C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Dimension :
1170*900*1100
Net Weight :
660kg
Voltage :
380(Special on request)
Frequency :
50(Special on request)
Condition :
New Screw Air Compressor
Noise :
78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description

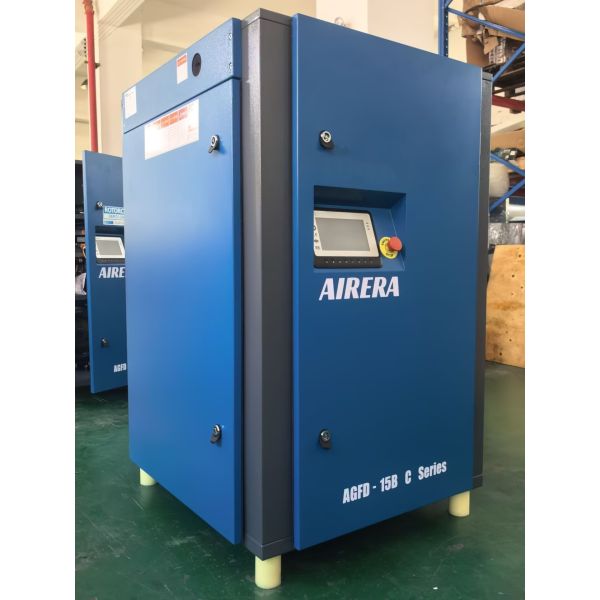

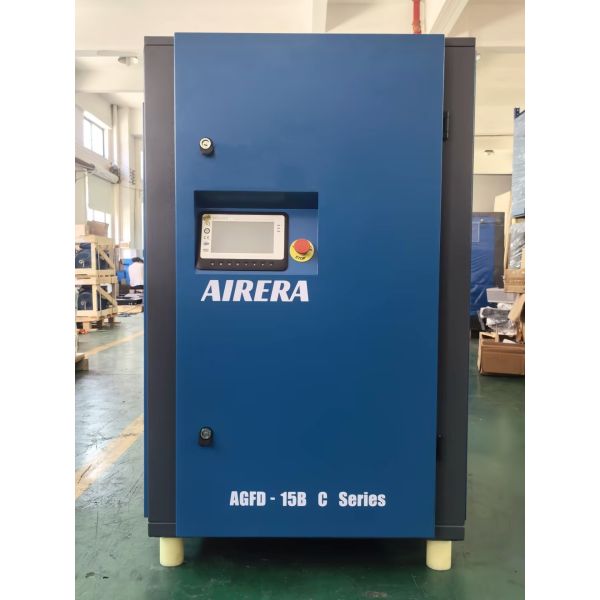

AIRERA AGFD-15B C Screw Air Compressor
Compact, efficient industrial air solution engineered to provide reliable, energy-efficient compressed air in a space-saving design.
Product Overview
Built with advanced rotary screw technology, this compressor delivers stable airflow, low vibration, and consistent pressure, helping manufacturers maintain smooth production while reducing operational costs. The user-friendly structure simplifies installation and maintenance, while durable industrial components ensure long service life under demanding working conditions. Ideal for small to medium-sized factories, workshops, and processing facilities, the AGFD-15B C offers a dependable compressed air solution that balances performance, efficiency, and value.
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
Technical Specifications
15KW Air Cooling Compressor Parameters
ITEM UNIT MODEL AGFD-15
Free air delivery m³/min 2.4 | 2.3 | 2.1
Max. working pressure MPa 0.7 | 0.8 | 1.0
Compressor type Oil free screw compressor
Cooling type Air cooling
Driven type Direct driven
Noise Level dB(A) ≤58
Drive rotor speed rpm 2980
Control mode Intelligent controller
Oil content ppm 0
Dimensions (L x W x H) mm 1170 x 900 x 1100
Net Weight kg 660
Motor Specifications
Model Y2160M2-2
Speed 2980 rpm
Rated Power 15 KW
Service factor 1.2
Protection type IP55
Efficiency IE3
Startup mode Y-Δ starting
Voltage 380V (Special on request)
Frequency 50Hz (Special on request)
Rated current 29.4 A
Weight of motor 125 kg
Support & Service
  • Professional model selection guidance
  • Installation support
  • Fast spare parts availability
  • Preventive maintenance recommendations
  • Responsive technical assistance
380V Small Screw Type Air Compressor Low Pressure 15kw Air Cooling
Frequently Asked Questions
Is the AGFD-15B C suitable for small factories?
Yes. It is specifically designed to deliver efficient compressed air for small to medium industrial users.
Is this compressor energy efficient?
Absolutely. Its optimized compression system helps reduce electricity consumption.
Is installation complicated?
No. The compact design allows for quick and simple installation.
How often does it require maintenance?
Routine maintenance is minimal and designed to be straightforward.
Can AIRERA provide customized voltage?
Yes. Multiple electrical configurations are available for global markets.
Compact Size. Powerful Performance. Reliable Air.
Built for Efficiency. Designed for Reliability.
