EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
520-30,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Condition :
New Screw Air Compressor
Noise :
65-78dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Size :
1540*920*1240mm
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
direct driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Delta Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description

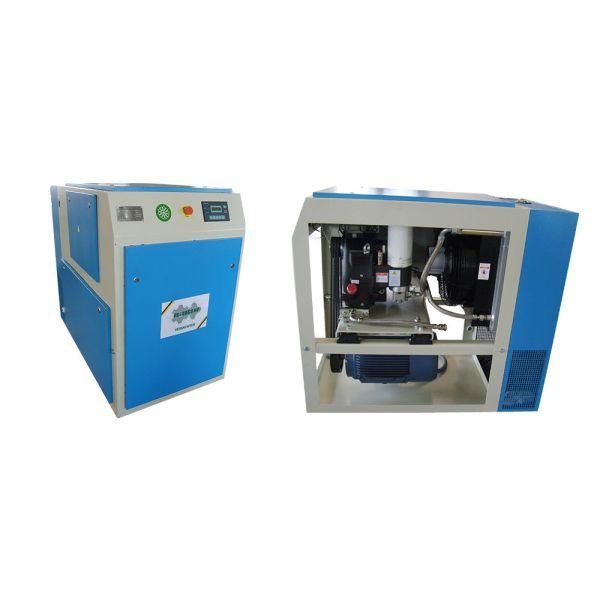

Compact EVO-NK Screw Compressor AGFD Series
Why Choose NK Compact Units
High operation reliability - designed for industrial applications and continuous operation
NK-EVO® Technology Benefits for OEM Partners
  • No leakages due to reduced piping and connections with Viton® O-ring sealing
  • Optimized compact design with minimal space requirements
  • Simplified service and maintenance with single-side access and no special tools required
  • Reduced engineering, manufacturing and logistics costs compared to conventional compressor systems
  • Complete system testing before factory departure

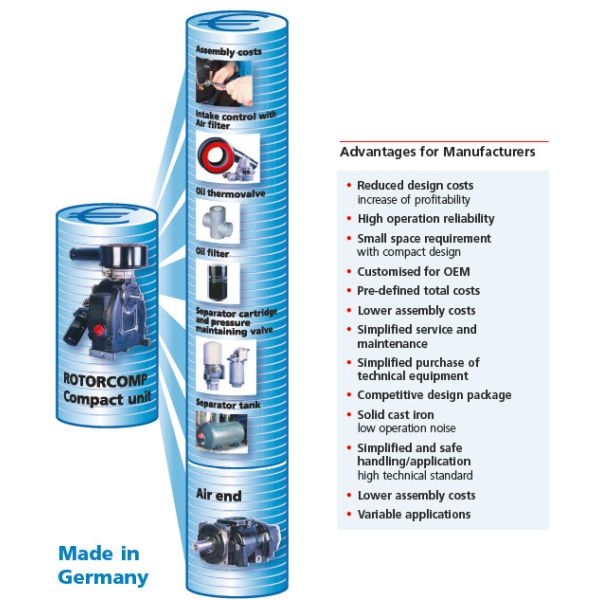

Integrated components in each compact unit include: NK-EVO® oil-injected air end with ROLLING PROFILE®, intake valve with control unit and air filter, oil reservoir and oil separation system with coalescing cartridge(s), oil filter and oil thermostat valve, minimum pressure valve and non-return valve.
ROTORCOMP Compact Unit Advantages
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
  • Ultimate efficiency and reduced noise levels
  • High volumetric output performance
  • Reduced internal leakage
  • Thermally optimized oil injection system
  • Improved suction port efficiency with reduced internal losses
  • Optimized torque characteristics and reduced internal friction
  • Improved outlet port with lower pressure losses
  • Reduced noise and low vibration operation
  • Smooth rolling of rotors with ROLLING PROFILE® technology
  • Optimized outlet port design
EVO-NK Compact Screw Compressor 220V-440V 50/60Hz 3Ph Small Screw Compressor
Technical Specifications
Model Capacity m³/min
7 bar		 Capacity m³/min
8 bar		 Capacity m³/min
10 bar		 Capacity m³/min
13 bar		 Capacity m³/min
15 bar		 Power (KW) Weight (Kg) Noise dB(A) Dimensions L*W*H (mm)
AGFD-NK7.5 * 1.3 1.2 1.0 0.75 0.6 7.5 290 65±3 900*650*1290
AGFD-NK11 * 1.7 1.6 1.5 1.15 0.9 11 350 65±3 900*650*1290
AGFD-NK15 * 2.25 2.05 1.85 1.5 1.2 15 360 67±3 900*650*1290
AGFD-NK18.5 * 3.1 2.9 2.55 2.1 1.8 18.5 565 70±3 790*1360*1220
AGFD-NK22 * 3.6 3.4 3.0 2.5 2.3 22 600 70±3 790*1360*1220
AGFD-NK30 * 5.2 4.9 4.4 3.7 3.0 30 810 72±3 930*1660*1530
AGFD-NK37 * 6.3 6.0 5.4 4.7 4.1 37 830 72±3 930*1660*1530
Additional Information
  • OEM & ODM service available, 220-450V/3/50-60Hz single & dual voltage customization accepted
  • VSD & PM VSD type options available
  • 2 years warranty for compressor, 5 years warranty for air end
  • ISO, CE, TUV, GA, SGS certificates provided
