AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGFD-11KW
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
L/C,T/T
Supply Ability :
2,000-3,000 per month
ITEM :
AGFD-11
Compressor type :
Oil inject screw compressor
Description

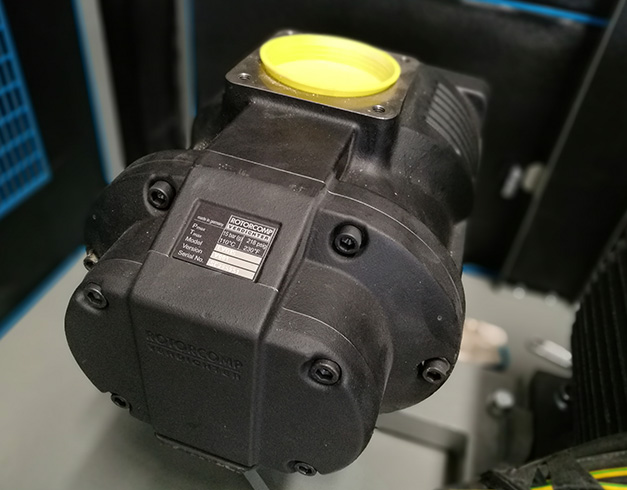

The features of EVO air end:
  • Ultimate efficiency and reduced noise through
  • High volumetric output due to
  • Reduced internal leakage
  • Thermally optimized oil injection system
  • Improved suction port efficiency giving reduced internal losses
  • Optimized torque characteristics and reduced internal friction
  • Improved outlet port with lower pressure losses
  • Reduced noise and low vibration due to
  • Smooth rollina of the rotors with new ROllING PROFll
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
Product Overview

The AIRERA AGFD-11KW is an 11kW industrial rotary screw air compressor designed for small factories, workshops, and light manufacturing facilities that require reliable compressed air supply for continuous operation.

Featuring a direct drive system and high efficiency screw airend, this compressor delivers stable air flow with low energy consumption compared to traditional piston compressors. Its compact design and robust construction ensure long service life even under demanding operating conditions.

With easy maintenance access and intelligent control monitoring, the AGFD-11KW offers a practical compressed air solution for businesses looking to upgrade from piston technology or expand existing capacity.

AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
Key Features
Direct Drive System
Eliminates belts and pulleys for higher transmission efficiency and reduced maintenance requirements.
High Efficiency Screw Airend
Precision engineered rotors provide continuous compressed air with low pulsation and high reliability.
Energy Saving Performance
Optimized design reduces power consumption compared to traditional piston compressors.
Low Noise Operation
Advanced soundproofing keeps noise levels low for comfortable workshop installation.
Compact Design
Space saving footprint suitable for small factories and workshops with limited space.
Intelligent Controller
Digital display allows real time monitoring of pressure, temperature and maintenance alerts.
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
Technical Parameters
11KW air cooling compressor parameters
ITEMUNITMODEL
AGFD-11
Free air deliverym3/min1.701.581.321.17
Max. working pressureMPa0.81.01.31.5
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Belt driven
Inlet statusTemperature℃≤55
PressureMPaAtmospheric pressure
Relative humidity
≤90%
Noise LeveldB(A)≤70
Residual oil contentppm≤1
Drive rotor speedrpm6500540048004350
Compressed air outlet temperature℃Ambient temperature＋10
Cooling air flowm3/hr5400
Control mode
Intelligent controller
Safety valve set pressureMPa0.881.101.431.60
Lubricating oil volumeL10
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
G3/4
DimensionLmm950
Wmm850
Hmm1300
Net Weightkg350
MotorModel
Y2160M1-2
Speedrpm2930
Rated PowerKW11
Service factor
1.2
Protection type
IP55
Efficiency
IE3
Startup mode
Y-Δ starting
VoltageV380(Special on request)
FrequencyHz50(Special on request)
Rated currentA21.8
Weight of motorkg115
Applications
  • Small manufacturing workshops
  • Automotive repair shops
  • Metal fabrication workshops
  • Woodworking facilities
  • Packaging operations
  • General industrial pneumatic systems
AIRERA AGFD-11KW 11kW Oil EVO Industrial Rotary Screw Air Compressor
FAQ
Q1: What is the advantage of an 11kW screw compressor over a piston compressor?
Screw compressors provide continuous air supply with lower noise, less vibration, and reduced maintenance compared to piston compressors, making them ideal for continuous operation.
Q2: Is this compressor suitable for 8 bar or 10 bar applications?
Yes. The AGFD-11KW can be configured for either 8 bar or 10 bar working pressure based on your requirements.
Q3: How much maintenance does it require?
Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements, reducing overall maintenance work.
Q4: Can voltage be customized for different countries?
Yes. Voltage and frequency can be customized according to destination country requirements.
